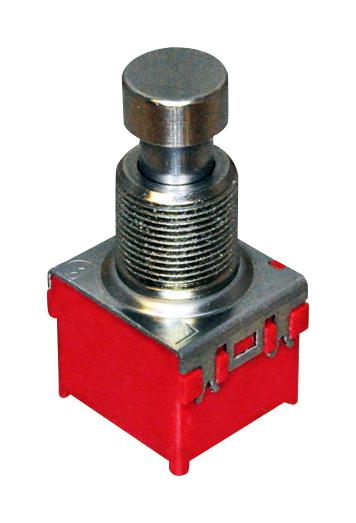

E-SWITCH FS57003PLT2B2M1QEH Pushbutton Switch
The FS5700 Series pushbutton switch offers versatile options including SPDT, DPDT, and 3PDT configurations with momentary and alternate action functions suitable for industrial and electronic applications. It features high actuation force, robust sealing hardware, and is available in PCB or panel mount styles. Designed for reliable performance, it supports contact resistance of 50mΩ initially, with an electrical life of 30,000 cycles. Operating under temperatures from 10°C to 70°C, it handles voltage ratings up to 1000V RMS, making it ideal for demanding control systems.
E-SWITCH FS57003PLT2B2M1QEH Pushbutton Switch Specifications:
- Contact Resistance: 50mΩ initial
- Electrical Life: 30,000 Cycles
- g: 1A at 9VDC
- Insulation Resistance: 100MOQ at 500VDC
- Strength: 1000V RMS
- Operating Temperature: 10°C to 70°C
- Storage Temperature: -10°C to 70°C
- Full Travel: SP & DP: 2.7mm; 3P: 5.0mm
- Contact Arrangement: SPDT, DPDT, 3PDT
- Actuation Force: Single pole momentary: 1700gf, Single pole alternate: 1000gf, Double pole momentary: 2500gf, Double pole alternate: 1600gf, 3 pole alternate: 3000gf
- Panel Thickness: Max 8mm
- Thread: M12x0.75
- Terminal Material: Silver plated, PCB pins, epoxy hardware options
- Operating Voltage: Up to 1000V RMS
Buy the Nichicon Series FS5700 Pushbutton Switch: FS57003PLT2B2M1QEH
Purchase the Nichicon FS5700 Series pushbutton switch online today for your industrial or electronic control needs. Designed for durability and high performance, this switch offers multiple contact configurations including SPDT, DPDT, and 3PDT, with high actuation force and sealing hardware. Suitable for panel or PCB mounting, it supports voltages up to 1000V RMS and withstands temperatures from 10°C to 70°C. Its robust construction ensures reliability over thousands of cycles, making it an ideal choice for complex automation systems and control panels.
Get Nichicon FS57003PLT2B2M1QEH today—built for precision, durability, with reliable sealing hardware for demanding control applications.
Frequently Asked Questions
Where can I buy E-SWITCH FS57003PLT2B2M1QEH?
You can click on the BUY or RFQ button to purchase FS57003PLT2B2M1QEH from an authorized E-SWITCH distributor.
How do I troubleshoot issues or seek technical support for part FS57003PLT2B2M1QEH?
You can download the FS57003PLT2B2M1QEH datasheet or visit the E-SWITCH website for support.
Who is the manufacturer of FS57003PLT2B2M1QEH?
E-SWITCH
