E-SWITCH KAE08TGGT DIP Switches

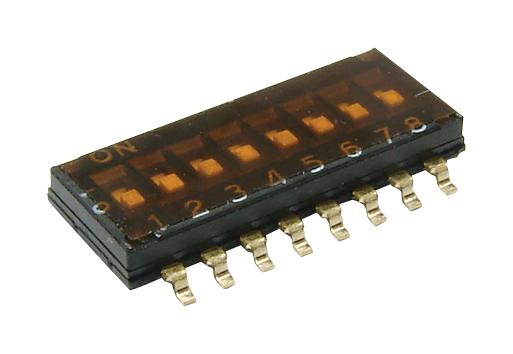

The KAE series DIP switches are compact, low-profile electronic components designed for precise on/off control in various circuit applications. Featuring 1 to 12 positions with options including gullwing, straight, and recessed terminals, these switches boast metal contacts with gold plating for durability and reliable signal switching. They operate between -20°C and 85°C, with a life expectancy of 2,000 cycles. Suitable for automation, instrumentation, and control systems, they offer easy PCB mounting, multiple actuator options, and packaging in tape & reel or tube for streamlined assembly.
E-SWITCH KAE08TGGT DIP Switches Specifications:
- Electrical Rating: 100mA @ 50VDC Non-Switching, 25mA @ 24VDC Switching
- Life Expectancy: 2,000 Cycles
- Contact Resistance: 50mΩ Max
- Insulation Resistance: 100 MΩ Min at 500VDC
- Operating Temperature: -20°C to 85°C
- Storage Temperature: -40°C to 85°C
- Travel: 1.0mm nominal
- Contact Arrangement: SPST per position
- Positions: 1 to 12
- Actuator Options: Extended, recessed, gullwing, straight
- Termination: Splayed pins, gullwing terminals
- Packaging: Tube or Tape & Reel
- Dielectric Strength: 500VAC for 1 min
- Gold contacts for enhanced durability
Buy the Buy KAE Series DIP Switch Part Number KAE08TGGT Online
Purchase KAE series DIP switches online to benefit from versatile multi-position control, gold-plated contacts for longevity, and easy PCB mounting. These switches are ideal for automation, instrumentation, and circuit control applications, offering multiple actuator styles, reliable switching, and packaging options including tape & reel or tube for efficient assembly. With a lifecycle of 2,000 cycles and operating temperatures from -20°C to 85°C, they ensure durability and precision for your electronic projects and manufacturing needs.
Buy KAE series DIP switches with gold contacts and multiple position options now and experience unmatched reliability and performance for your control systems.
Frequently Asked Questions
Where can I buy E-SWITCH KAE08TGGT?
You can click on the BUY or RFQ button to purchase KAE08TGGT from an authorized E-SWITCH distributor.
How do I troubleshoot issues or seek technical support for part KAE08TGGT?
You can download the KAE08TGGT datasheet or visit the E-SWITCH website for support.
Who is the manufacturer of KAE08TGGT?
E-SWITCH
