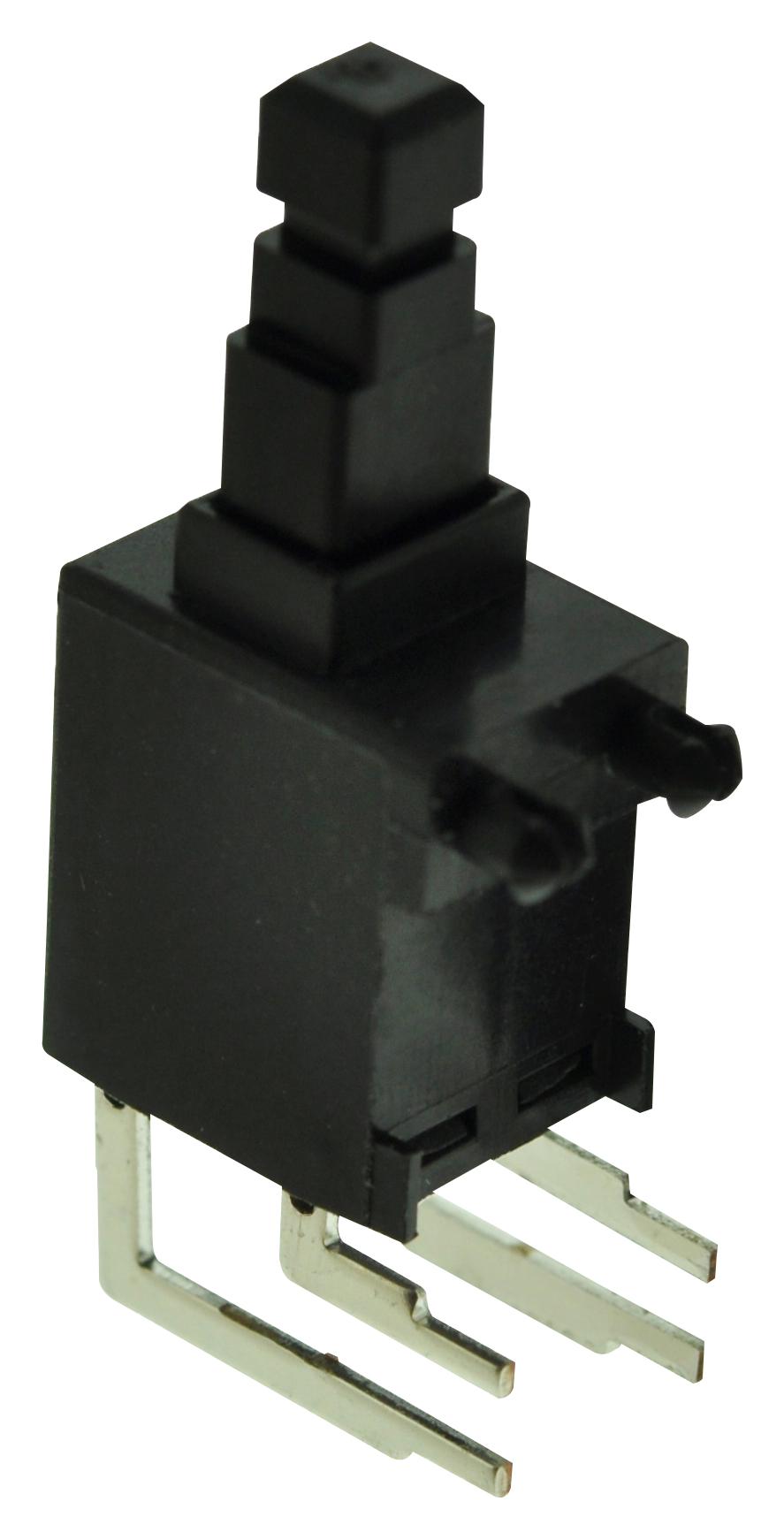

E-SWITCH PB400EEQX Pushbutton Switch
The PB400 Series pushbutton switch offers a versatile, cost-effective solution for industrial and instrumentation applications. Featuring a right-angle configuration, it provides DPST contact arrangement with optional black cap for customization. The switch supports momentary and latching functions, with a 3.2mm full actuation travel, and is rated at 3A @ 30 VDC. Made with copper, silver-plated terminals, it withstands up to 6,000 cycles, with a temperature range from -5°C to 60°C. Its compact design makes it suitable for panel mounting in control panels and machinery system interfaces.
E-SWITCH PB400EEQX Pushbutton Switch Specifications:
- Electrical Rating: 3A @ 30 VDC
- Electrical Life: 6,000 Cycles
- Contact Resistance: 30mΩ Max. Initial
- Insulation Resistance: 500MΩ Min. @ 500VDC
- Dielectric Strength: 500VAC for 1 minute
- Operating Temperature: -5°C to 60°C
- Terminal Material: Copper, Silver Plated
- Full Actuation Travel: 3.2mm
- Make Contact Travel: 1.8mm
- Latching Travel: 2.2mm
- Actuation Force: 3N~7N
- Contact Arrangement: DPST
- Switch Design: Right Angle Pushbutton
- Cap Options: Black, No Cap
- Mechanical Life: 6,000 Cycles
Buy the Generic Series Pushbutton Switch: PB400EEQX
Enhance your control panel with the durable PB400 series pushbutton switch, featuring a reliable DPST contact arrangement, optional black cap, and excellent lifespan of 6,000 cycles. Designed for quick installation, it supports both momentary and latching functions, with a full actuation travel of 3.2mm. Rated at 3A @ 30 VDC, it offers excellent insulation resistance and dielectric strength. Whether for automation, instrumentation, or machinery controls, this switch ensures dependable performance in challenging environments.
Get PB400EEQX today—built for precision and long-lasting durability in industrial control applications.
Frequently Asked Questions
Where can I buy E-SWITCH PB400EEQX?
You can click on the BUY or RFQ button to purchase PB400EEQX from an authorized E-SWITCH distributor.
How do I troubleshoot issues or seek technical support for part PB400EEQX?
You can download the PB400EEQX datasheet or visit the E-SWITCH website for support.
Who is the manufacturer of PB400EEQX?
E-SWITCH
