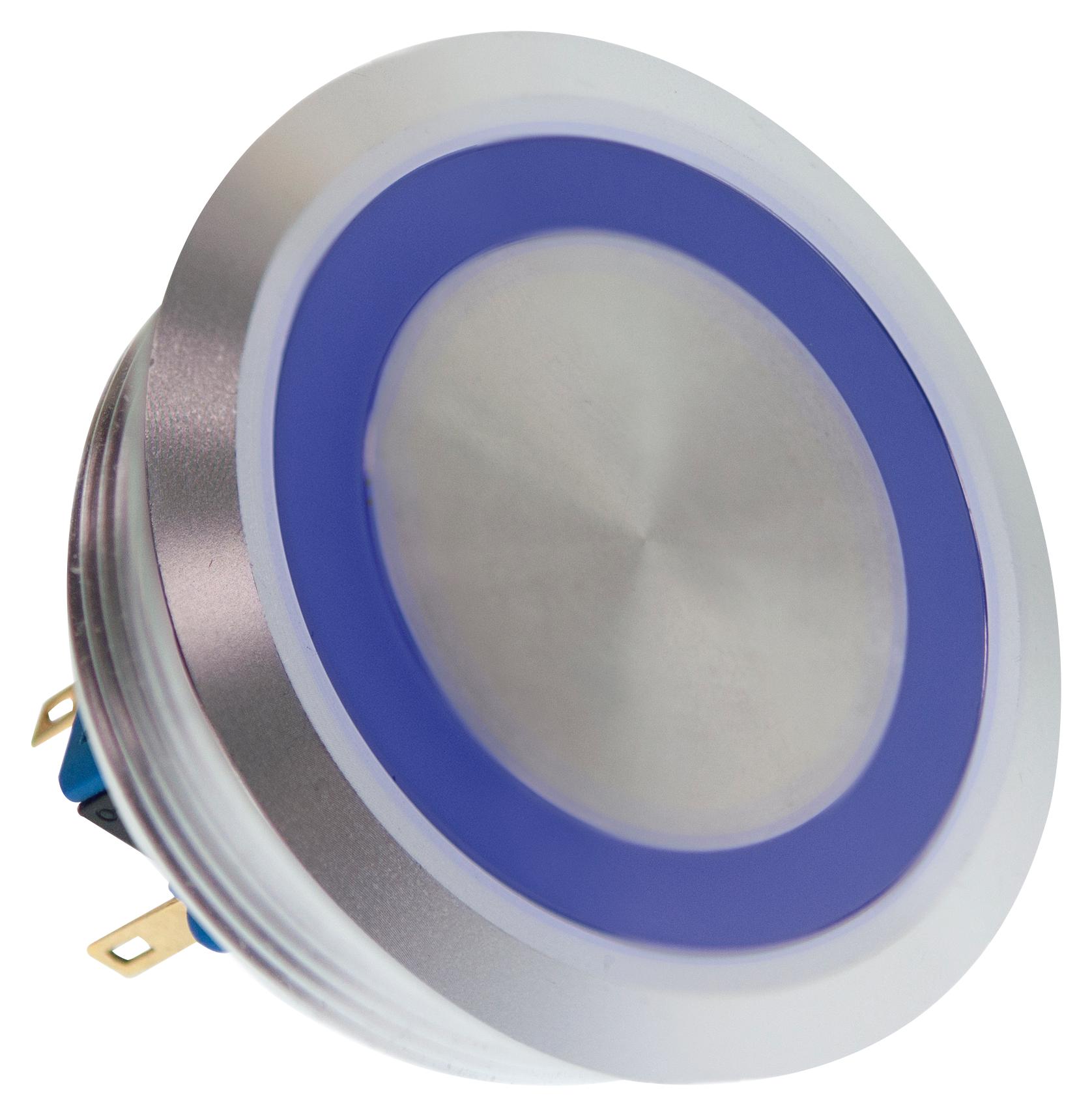

E-SWITCH PV10F2U0SS341 Vandal Switch
The PV10 Series Anti-Vandal Switch is a robust, IP65-rated switch designed for industrial applications, featuring a 46mm diameter panel cutout and options for dot or ring illumination. It provides SPDT or DPDT contact configurations, with a mechanical cycle life of 1,000,000, and an electrical life of 50,000 cycles. The switch supports operating temperatures from -20°C to 55°C, with an actuation force of 6.5N, and panel thickness compatibility of 1-5mm. Suitable for harsh environments, it offers reliable switching with high durability.
E-SWITCH PV10F2U0SS341 Vandal Switch Specifications:
- Electrical Rating: 2A, 48VDC
- Mechanical Cycles: 1,000,000
- Electrical Life: 50,000 Cycles
- Contact Resistance: 50mΩ Max
- Insulation Resistance: 1000 MΩ Min @ 500VDC
- Dielectric Strength: 2,000VAC
- Operating/Storage Temperature: -20°C to 55°C
- Travel: 2.8mm
- Moisture Protection: IP65
- Contact Arrangement: SPDT or DPDT
- Actuation Force: 6.5N
- Panel Thickness: 1-5mm
- Hex Nut Torque: 0.6Nm
Buy the Industrial Switches PV10F2U0SS341 – Reliable Vandal Switches for Industrial Applications
Purchase the PV10F2U0SS341 vandal switch online today and equip your equipment with a highly durable, IP65-rated vandal-resistant switch. Featuring a 46mm panel cutout, IP65 moisture protection, and options for dot or ring illumination, it ensures dependable operation in demanding industrial settings. With a mechanical life of 1,000,000 cycles and electrical life of 50,000 cycles, this switch offers outstanding longevity. Easy to install with panel thickness support of 1-5mm, making it ideal for rugged applications requiring reliable, trouble-free switching.
Order your PV10F2U0SS341 vandal switch today and ensure reliable performance in harsh industrial environments with durable, IP65-rated construction.
Frequently Asked Questions
Where can I buy E-SWITCH PV10F2U0SS341?
You can click on the BUY or RFQ button to purchase PV10F2U0SS341 from an authorized E-SWITCH distributor.
How do I troubleshoot issues or seek technical support for part PV10F2U0SS341?
You can download the PV10F2U0SS341 datasheet or visit the E-SWITCH website for support.
Who is the manufacturer of PV10F2U0SS341?
E-SWITCH
