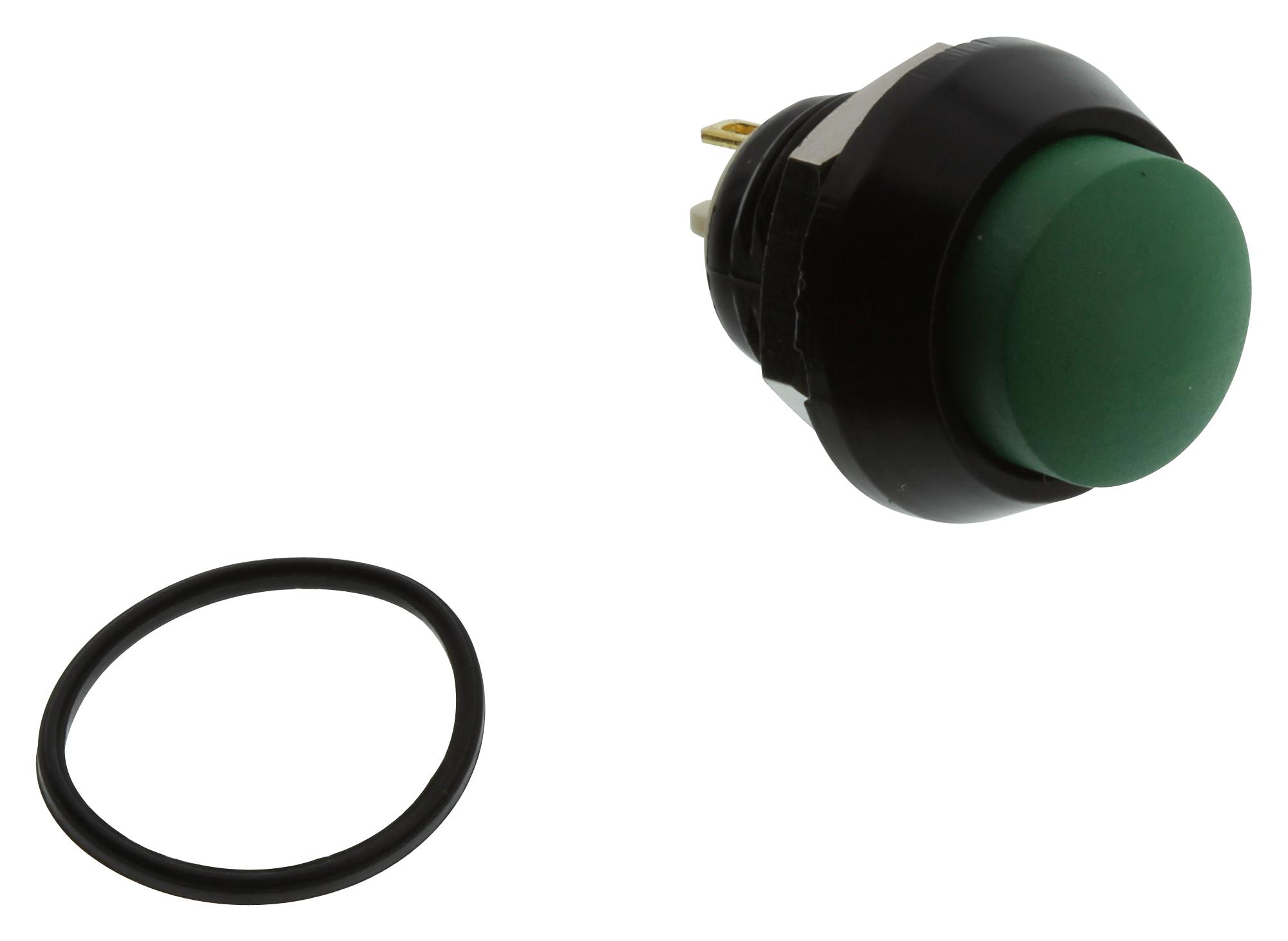

E-SWITCH PV5H24018 Anti-Vandal Switch
The PV5 Series Anti-Vandal Switch is a robust, IP65-rated switch designed for harsh industrial environments. Featuring a mechanical life of 1,000,000 cycles and an electrical life of 200,000 cycles, it offers reliable SPST off-on contact configuration with a 2A, 36VDC rating. It has a travel of 2.50mm, actuation force of 5N, and can accommodate panel thicknesses from 1-5mm. Multiple actuator finishes including raised, domed, and screw-off options are available, with solder or screw termination for secure connections.
E-SWITCH PV5H24018 Anti-Vandal Switch Specifications:
- Electrical Rating: 2A, 36VDC
- Mechanical Life: 1,000,000 Cycles
- Electrical Life: 200,000 Cycles
- Contact Resistance: 50mΩ Max.
- Insulation Resistance: 1000MΩ Min.
- Dielectric Strength: 2,000VAC
- Operating/Storage Temperature: -25°C to 55°C
- Travel: 2.50mm
- Moisture Protection: IP65
- Contact Arrangement: SPST Off-(On)
- Actuation Force: 5N
- Panel Thickness: 1-5mm
- Mounting Nut Torque: 0.3Nm
- Actuator Finish Options: Raised, Domed, Screw Off
- Termination Options: Solder or Screw
- Body Material Options: Nickel, Black Anodized, Stainless Steel
Buy the IndustrialBrand PV5H24018 – Reliable Anti-Vandal Switch for Industrial Applications
Order the PV5 Series Anti-Vandal Switch online today to guarantee your industrial equipment’s safety and durability. Featuring IP65 moisture protection and a long life cycle, this switch is ideal for harsh environments. Its versatile actuator options and secure termination methods ensure ease of installation and reliable operation. Suitable for panel thicknesses from 1-5mm, it supports applications demanding high durability and electrical performance. Purchase now for fast delivery and unmatched quality, ensuring your projects stay on schedule with trusted components.
Buy IndustrialBrand PV5H24018 now and experience unmatched reliability and performance, ideal for rugged environments requiring IP65 protection and high cycle life.
Frequently Asked Questions
Where can I buy E-SWITCH PV5H24018?
You can click on the BUY or RFQ button to purchase PV5H24018 from an authorized E-SWITCH distributor.
How do I troubleshoot issues or seek technical support for part PV5H24018?
You can download the PV5H24018 datasheet or visit the E-SWITCH website for support.
Who is the manufacturer of PV5H24018?
E-SWITCH
