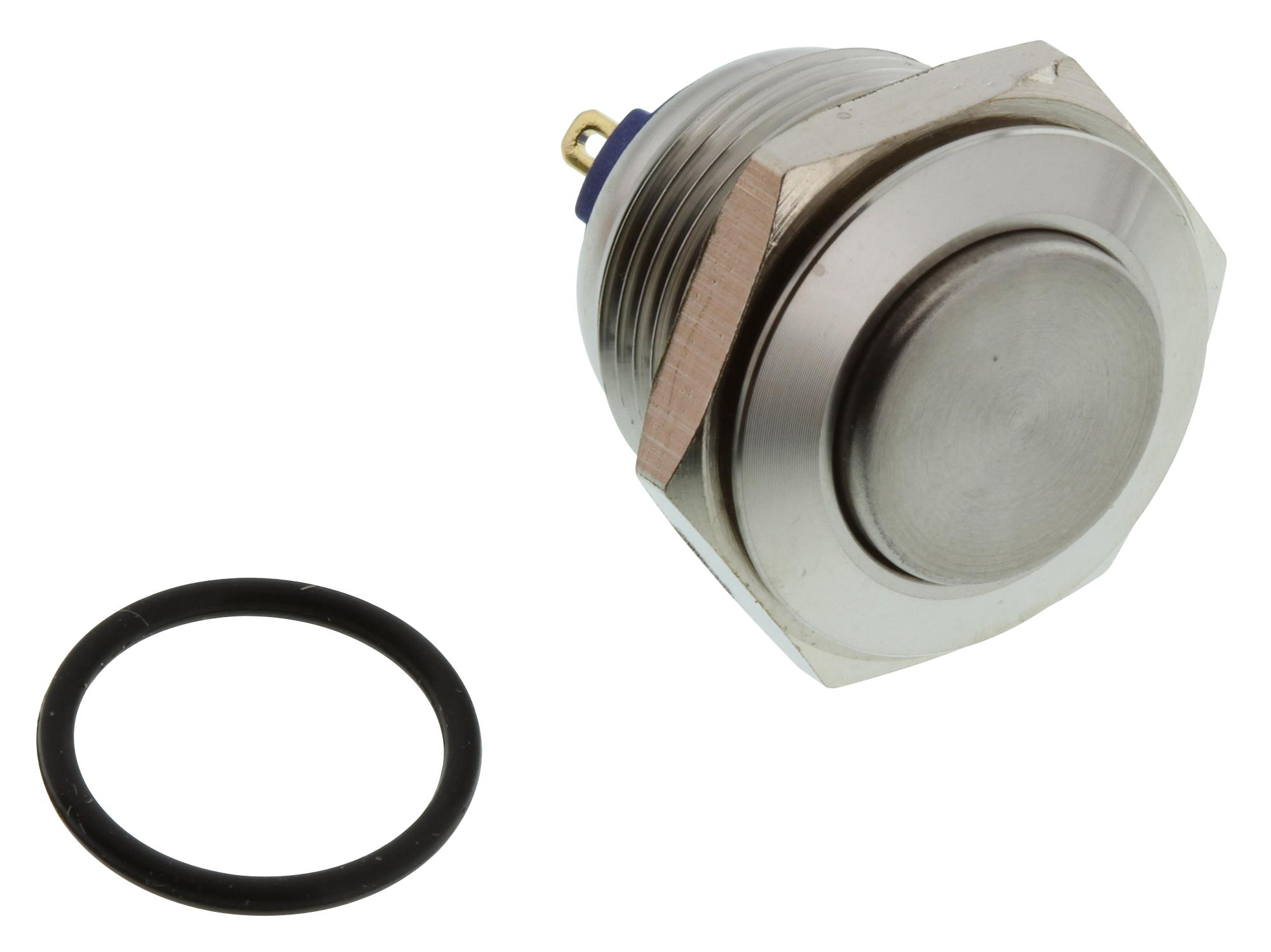

E-SWITCH PV2H240BB Vandal-Resistant Switch
The PV2 Series Anti-Vandal Switch is a durable, high-quality electronic switch designed for vandal-resistant applications. Featuring a 16mm panel cutout, it offers various actuator options including flat, high, and domed designs. The switch supports solder or screw termination, with IP65 moisture protection and a contact rating of 2A at 36VDC. It has a mechanical life of 1,000,000 cycles and an electrical life of 200,000 cycles, making it ideal for industrial, security, and control system applications requiring reliable, tamper-proof operation.
E-SWITCH PV2H240BB Vandal-Resistant Switch Specifications:
- Flammability: UL 94V-0
- Contact Material: Copper alloy with gold or nickel finish options
- Temperature Rating: -20°C to 55°C
- Dimensions: 16mm panel cutout, actuator height options available
- Voltage Rating: 36VDC, 2A contact current
- Mechanical Life: 1,000,000 cycles
- Electrical Life: 200,000 cycles
- Electrical Resistance: 50mΩ Max.
- Insulation Resistance: 1000MΩ minimum
- Ingress Protection: IP65 moisture protection
- Actuator Types: Flat, high, domed
- Termination Options: Solder or screw
- Mounting Torque: 0.8 Nm
Buy the Vandal-Resistant Switch Series PV2: PV2H240BB
Order the PV2H240BB vandal-resistant switch online today to ensure reliable security and control in demanding environments. Designed with long-lasting materials, it features IP65 protection, multiple actuator options, and a 2A 36VDC rating. Its robust construction supports over a million mechanical cycles, making it ideal for security systems, industrial machinery, and vandal-proof controls. Easy to install with solder or screw termination, the PV2H240BB provides unmatched durability and performance, ensuring your systems operate securely and efficiently over the long term.
Get PV2H240BB vandal-resistant switch today—built for durability, long-term performance, and industrial security.
Frequently Asked Questions
Where can I buy E-SWITCH PV2H240BB?
You can click on the BUY or RFQ button to purchase PV2H240BB from an authorized E-SWITCH distributor.
How do I troubleshoot issues or seek technical support for part PV2H240BB?
You can download the PV2H240BB datasheet or visit the E-SWITCH website for support.
Who is the manufacturer of PV2H240BB?
E-SWITCH
