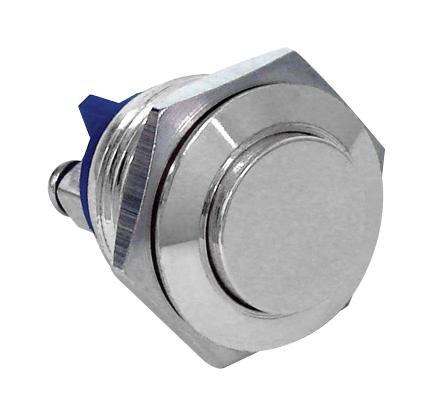

E-SWITCH PV2H640NN Anti-Vandal Switch
The PV2H640NN is a durable anti-vandal switch suitable for various control panel applications. Featuring IP65 moisture protection, it offers a tough, tamper-resistant design with options for solder or screw termination and flat, high, or domed actuators. With a 2A, 36VDC rating, it ensures reliable operation in challenging environments. Its long mechanical life of 1,000,000 cycles and electrical life of 200,000 cycles make it ideal for industrial use. The switch supports a 16mm panel cutout and provides a vandal-resistant, secure user interface for advanced control systems.
E-SWITCH PV2H640NN Anti-Vandal Switch Specifications:
- Rating: 2A, 36VDC
- Mechanical Life: 1,000,000 Cycles
- Electrical Life: 200,000 Cycles
- Contact Resistance: 50mΩ Max
- Insulation Resistance: 1000 MΩ Min
- Waterproof rating: IP65
- Panel Cutout: 16mm
- Actuator Options: Flat, High, Domed
- Termination: Solder or Screw
- Operating Temperature: -20°C to 55°C
- Dielectric Strength: 2,000VAC
- Mounting Nut Torque: 0.8Nm
Buy the Buy PV2H640NN Anti-Vandal Switch Part Number PV2H640NN Online
Enhance your control systems with the PV2H640NN anti-vandal switch, offering IP65 moisture protection, high durability, and versatile actuator options. This rugged switch features a 2A, 36VDC rating and long cycle life, making it ideal for industrial, security, and automation applications. Easy to install with 16mm panel cutout, it supports solder or screw termination. Buy online now to secure reliable, tamper-resistant control panels that withstand harsh environments and demanding usage conditions.
Order your PV2H640NN vandal-resistant switch today and ensure your control panels are protected with high-durability, secure toggle operation.
Frequently Asked Questions
Where can I buy E-SWITCH PV2H640NN?
You can click on the BUY or RFQ button to purchase PV2H640NN from an authorized E-SWITCH distributor.
How do I troubleshoot issues or seek technical support for part PV2H640NN?
You can download the PV2H640NN datasheet or visit the E-SWITCH website for support.
Who is the manufacturer of PV2H640NN?
E-SWITCH
