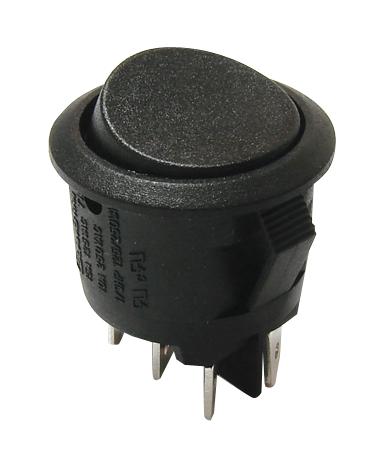

E-SWITCH RRA1GC1100 industrial switch control
The RRA Series switch features up to 2 poles and 2 throws, with high ratings approved by UL. It incorporates full illumination options and a PVC cap for water protection, making it ideal for rugged industrial control applications. Built with durable polyamide and polycarbonate materials, it offers a temperature range from -20°C to 105°C. The switch supports up to 10,000 cycles, with low contact resistance of 35mΩ and insulation resistance exceeding 100MΩ, ensuring reliable long-term performance in diverse environments.
E-SWITCH RRA1GC1100 industrial switch control Specifications:
- Rating: 15A 125VAC UL, cUR, 0A 250VAC UL, cUR, 1/3 HP 125/250VAC UL, cUR
- Temperature Range: -20°C to 105°C
- Electrical Life: 10,000 Cycles
- Contact Resistance: 35mΩ Max at 50VAC
- Insulation Resistance: Min. 100MΩ at 50VDC
- Dielectric Strength: 1,500VAC for 1 Minute
- Materials: Body - Polyamide 6/6 UL94 V-2, Actuator - Polyamide 6/6 UL94 V-2, Contacts - Silver Alloy, Terminals - Silver Plated Copper
- Pole and Throw Options: Up to 2 Poles and 2 Throws
- Rating Options: 1A 125VAC, 1A 250VAC
- Mounting: Panel Cutout with 0.806 inch diameter
- Color Options: black, white, almond, grey, red, green, blue, orange
- Lens Colors: Clear, Red, Green, Plus additional illumination features
- Certifications: UL, cUR listed
- Features include full illumination, waterproof PVC cap, high durability, and custom color options.
Buy the Buy Industrial Switch Part Number RRA1GC1100 Online
Purchase the RRA1GC1100 switch online today for high-quality, versatile control solutions suitable for industrial and automation applications. Featuring up to 2 poles and 2 throws, it supports rated currents of 15A 125VAC and 0A 250VAC, with a temperature resilience from -20°C to 105°C. Its robust polyamide and polycarbonate construction ensure long-lasting durability. Equipped with UL approval, full illumination options, and a water-resistant PVC cap, this switch is ideal for demanding environments where reliability and safety are paramount.
Get RRA1GC1100 today—built for precision, durability, and reliable control in industrial environments.
Frequently Asked Questions
Where can I buy E-SWITCH RRA1GC1100?
You can click on the BUY or RFQ button to purchase RRA1GC1100 from an authorized E-SWITCH distributor.
How do I troubleshoot issues or seek technical support for part RRA1GC1100?
You can download the RRA1GC1100 datasheet or visit the E-SWITCH website for support.
Who is the manufacturer of RRA1GC1100?
E-SWITCH
