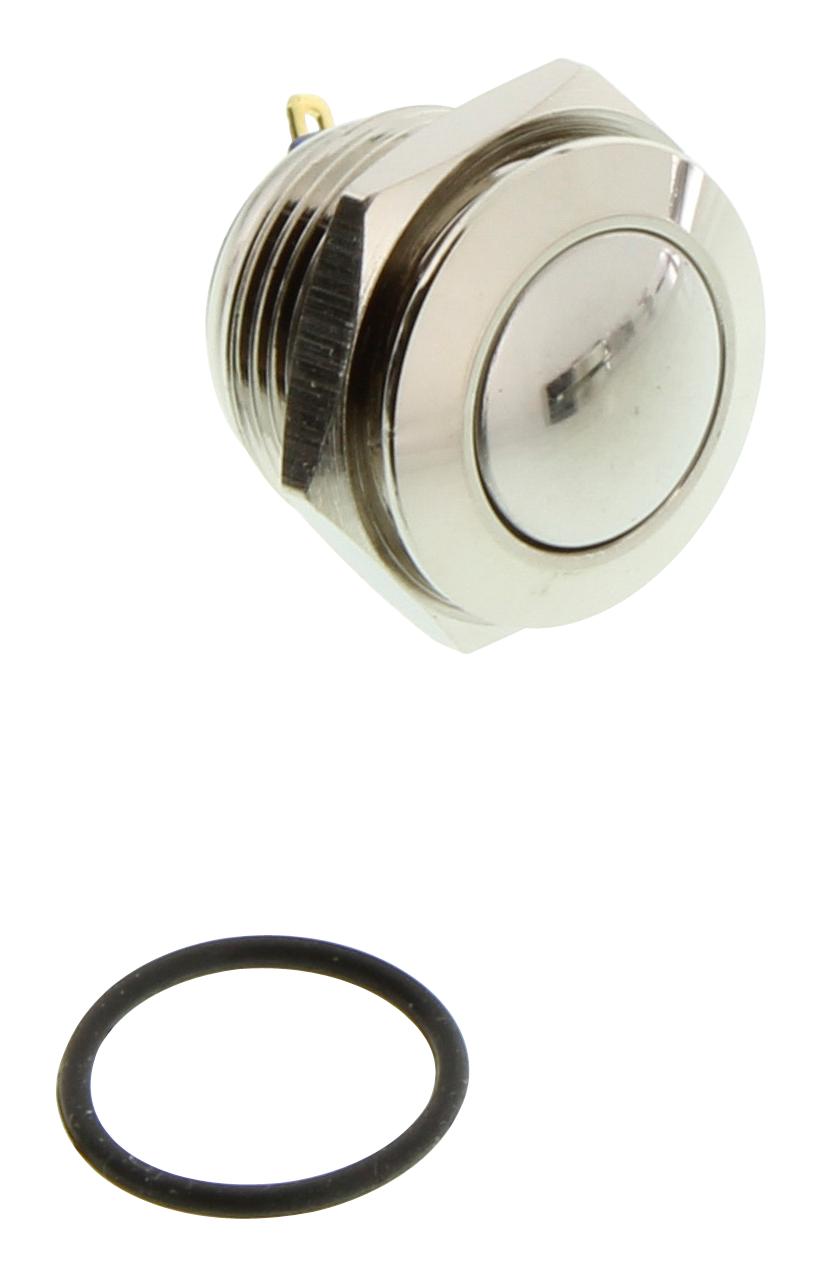

E-SWITCH PV2S240NN Vandal Switch
The PV2 Series Anti-Vandal Switch is a durable, high-quality switch designed for secure applications. It features a 16mm panel cutout, solder or screw termination options, and various actuator styles including flat, high, or domed. Suitable for demanding environments, it offers IP65 moisture protection, a mechanical life of 1,000,000 cycles, and an electrical life of 200,000 cycles. The switch supports a 2A, 36VDC rating, with switch types like pushbutton, toggle, or snap action, ideal for industrial control and security systems. Its robust construction ensures long-lasting reliability in vandal-prone areas.
E-SWITCH PV2S240NN Vandal Switch Specifications:
- Rated Voltage: 36VDC
- Rated Current: 2A
- Mechanical Life: 1,000,000 Cycles
- Electrical Life: 200,000 Cycles
- Contact Resistance: 50mΩ Max.
- Insulation Resistance: 1000MΩ Min.
- Dielectric Strength: 2,000VAC
- Operating/Storage Temperature: -20°C to 55°C
- Travel: 2.50mm
- Ingress Protection: IP65
- Actuator Options: Flat, High, Domed
- Termination: Solder or Screw
- Panel Thickness Compatibility: 1-6mm
- Box Dimensions: Standard for rugged industrial use
- Actuation Force: 4N
- Mounting Nut Torque: 0.8Nm
Buy the Buy Vandal-Proof Switch Part Number PV2S240NN Online
Purchase the Vandal Switch online today for reliable, long-lasting performance. Designed with robust IP65 protection, it features multiple actuator options including flat, high, and domed, supporting a 2A, 36VDC rating. Its high cycle life of 1,000,000 mechanical and 200,000 electrical cycles ensures longevity in vandal-prone environments. Easy to install with solder or screw options, suitable for industrial security, control systems, and harsh environments. Order now for secure and dependable operation.
Get Vandal-Proof Switch PV2S240NN today—built for durability, security, and reliable performance in demanding environments.
