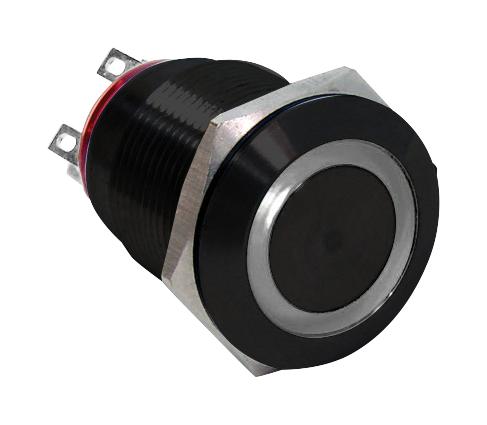

E-SWITCH PV4F2G011311 Anti-Vandal Switch
The PV4 series anti-vandal switches are robust, IP65 rated components designed for industrial use, featuring multiple actuation options like pushbutton, rocker, rotary, and toggle. They incorporate high-intensity LED illumination, including RGB options, with a 19mm panel cutout, ideal for control panels demanding durability, moisture resistance, and clear visual indication. Suitable for applications requiring contact ratings up to 2A at 24VDC, these switches support various configurations including keylock and navigation functionalities, ensuring reliable operation in harsh environments.
E-SWITCH PV4F2G011311 Anti-Vandal Switch Specifications:
- Electrical Rating: 2A, 24VDC
- Contact Resistance: 50mΩ Max.
- Insulation Resistance: 1000 MΩ Min.
- Dielectric Strength: 2,000VAC
- Operating/Storage Temperature: -20°C to 55°C
- Panel Cutout: 19mm diameter
- Moisture Protection: IP65
- Actuation Force: 4 N
- Terminal Type: Solder or Screw terminals
- Body Material: Steel or Stainless Steel
- Finish: Silver, Gold, or Anodized options
- Travel: 2.50mm
- Panel Thickness: 1-11mm
- Mounting Nut Torque: 5-14 Nm
- Contact Arrangement: SPDT, DPDT
- Illumination: LED options including RGB, Dot, Ring, and Power symbols
- Keylock and Navigation features available
Buy the Industrial Switch Co PV4 – Reliable Anti-Vandal Switch for Industrial Applications
Buy the PV4 series anti-vandal switches online today and equip your industrial panels with highly durable, IP65-rated switches featuring multiple actuation and illumination options. Designed for harsh environments, these switches support robust contact ratings up to 2A at 24VDC, with various configurations including keylock, navigation, pushbutton, and RGB LED illumination. Install easily with 19mm panel cutouts, and benefit from high-quality materials, moisture resistance, and reliable performance in demanding industrial applications. Enhance your projects with these dependable control components.
Order your PV4 series anti-vandal switches today and enhance your control panels with dependable, IP65-rated illumination solutions designed for tough environments.
Frequently Asked Questions
Where can I buy E-SWITCH PV4F2G011311?
You can click on the BUY or RFQ button to purchase PV4F2G011311 from an authorized E-SWITCH distributor.
How do I troubleshoot issues or seek technical support for part PV4F2G011311?
You can download the PV4F2G011311 datasheet or visit the E-SWITCH website for support.
Who is the manufacturer of PV4F2G011311?
E-SWITCH
