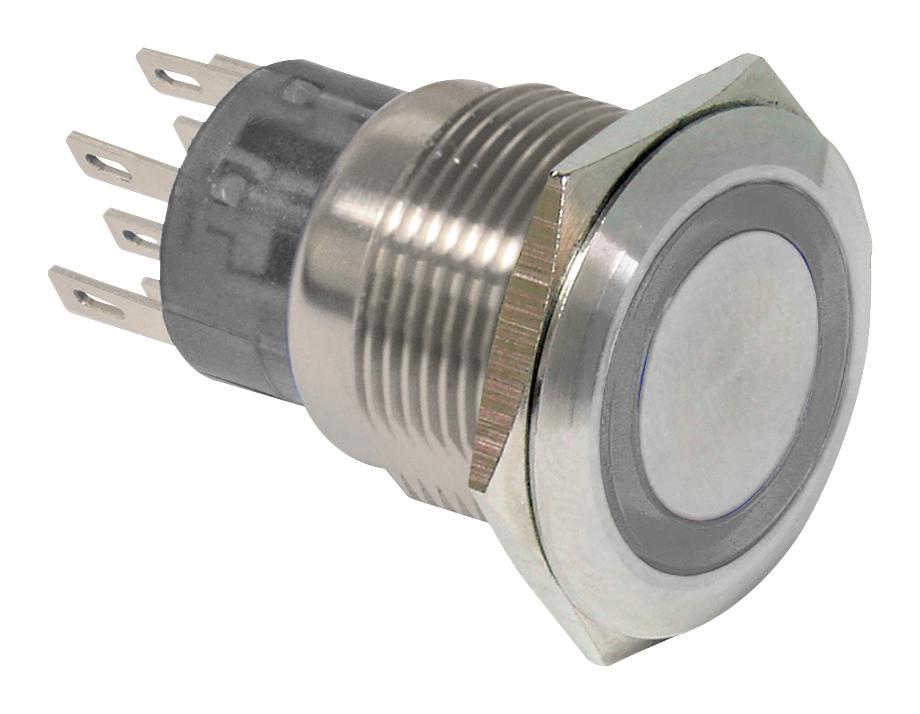

E-SWITCH PV4F2G0SS311 Anti-vandal Switch
The PV4 series anti-vandal switch combines robust design with versatile options, including illuminated and non-illuminated versions, snap action, toggle, rotary, slide, and pushbutton functionalities. Awarded IP65 moisture protection, it features a 19mm diameter panel cutout, with both SPDT and DPDT contact arrangements rated at 2A, 24VDC, and rated for 50,000 cycles. Options include RGB LED illumination with various graphic symbols, laser etching, and different body and actuator finishes, making it suitable for industrial, security, and control applications.
E-SWITCH PV4F2G0SS311 Anti-vandal Switch Specifications:
- Electrical Rating: 2A, 24VDC
- Electrical Life: 50,000 Cycles
- Contact Resistance: 50mΩ Max
- Insulation Resistance: 1000 MΩ Min
- Dielectric Strength: 2,000VAC
- Panel Cutout Diameter: 19mm
- Body Material: Stainless Steel or Anodized Aluminum
- Actuator Travel: 2.50mm
- Panel Thickness: 1-11mm
- Moisture Protection: IP65
- Operating/Storage Temperature: -20°C to 55°C
- Actuation Force: 4 N
- Mounting Nut Torque: 5-14 Nm
- Body Styles: Flat, High, Screw
- LED Options: RGB, Power symbols, Graphic etched
- Contact Configurations: SPDT, DPDT, Momentary or Maintained
- Actuator Colors: Black, Red, Green, Blue, Orange, Yellow
- Finish Options: Stainless Steel, Anodized, Silver
- Terminals: Solder, Screw
Buy the Vandal Switch Series PV4: PV4F2G0SS311
Purchase the Vandal Switch Series PV4F2G0SS311 online today and enhance your security and industrial control systems with our IP65-rated anti-vandal switches. Featuring multiple actuation options including pushbutton, toggle, rotary, slide, and snap action, these switches provide reliable performance for demanding environments. Customizable with various LED illumination, graphic symbols, and finishes, they are perfect for industrial, security, and control applications. Easy to install with a 19mm cutout, they combine durability, versatility, and style in one robust package.
Order your Vandal Switch Series PV4F2G0SS311 today and give your control panels the durable reliability they need.
Frequently Asked Questions
Where can I buy E-SWITCH PV4F2G0SS311?
You can click on the BUY or RFQ button to purchase PV4F2G0SS311 from an authorized E-SWITCH distributor.
How do I troubleshoot issues or seek technical support for part PV4F2G0SS311?
You can download the PV4F2G0SS311 datasheet or visit the E-SWITCH website for support.
Who is the manufacturer of PV4F2G0SS311?
E-SWITCH
