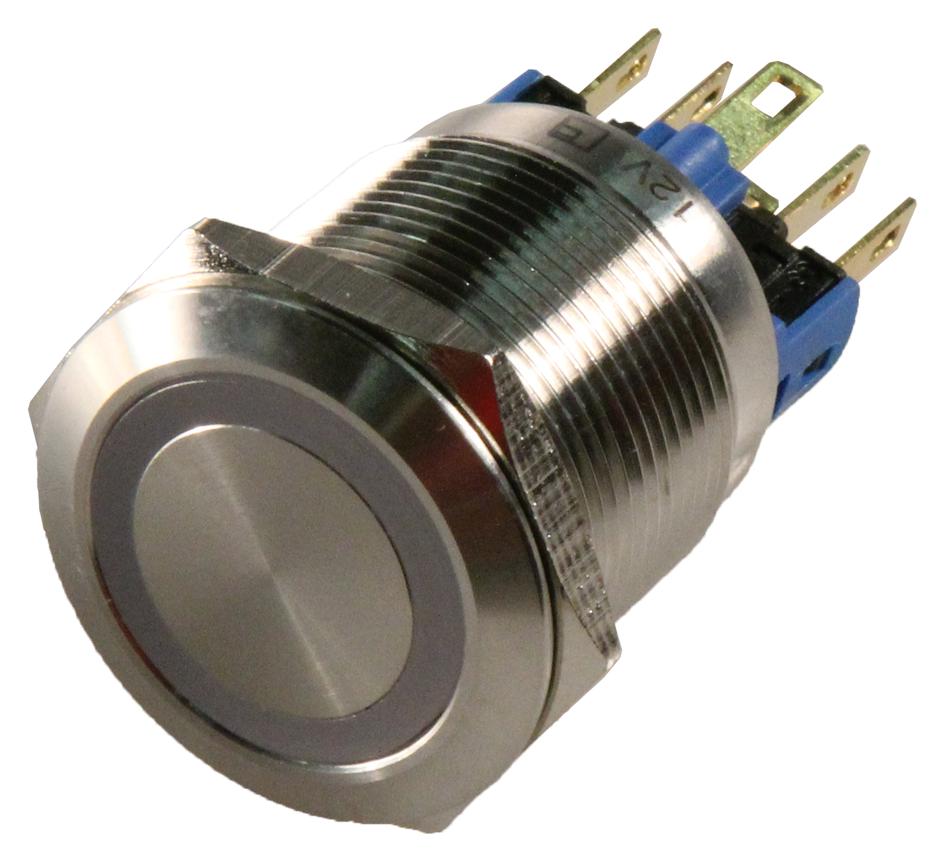

E-SWITCH PV7F2T0SS3G3 Vandal-proof Switch
The PV7 series anti-vandal switches are designed for durable, secure, and versatile applications in industrial and electronic control systems. Featuring various actuation options including non-illuminated, LED illuminated, and graphic options, these switches provide IP65 rated moisture and dust protection suitable for harsh environments. They support panel thicknesses up to 12mm, have a maximum electrical rating of 2A at 48VDC, and include SPDT contact configuration. Suitable for use with power symbols and custom graphics, they offer reliable operation with an actuation force of 4 N and a dielectric strength of 2000VAC, ensuring long-lasting performance.
E-SWITCH PV7F2T0SS3G3 Vandal-proof Switch Specifications:
- Electrical Rating: 2A, 48VDC
- Electrical Life: 50,000 Cycles
- Contact Resistance: 50m Max.
- Insulation Resistance: 1000 MO Min. @ 500VDC
- Dielectric Strength: 2,000VAC
- Moisture Protection: IP65
- Panel Thickness: 1-12mm (depending on function)
- Travel: 2.20mm
- Actuation Force: 4 N
- Body Material: Steel with Anodized Finish or Stainless Steel
- Panel Cutout: 22mm diameter
- Max Panel Thickness: 12mm
- Environmental Temperature: -20°C to 55°C
- Mounting Nut Torque: 5-14Nm
- Contact Arrangement: SPDT
- Illumination: RGB LED, Ring, Dot, or Laser Etched Graphics
Buy the Buy PV7 Series Anti-Vandal Switch Part Number PV7F2T0SS3G3 Online
Order the PV7 Series Anti-Vandal Switch online today to enjoy reliable, durable, and customizable control switch solutions suitable for industrial, security, and automation applications. These switches feature IP65 protection, multiple illumination options, and support up to 12mm panel thickness, ensuring long-term performance in demanding environments. With a maximum electrical rating of 2A at 48VDC, they provide versatile switching with SPDT contact configuration, easy installation, and a sleek design perfect for modern machinery and equipment requiring vandal-resistant controls. Purchase now for dependable operation.
Get PV7 Series Anti-Vandal Switch PV7F2T0SS3G3 today—built for precision and long-lasting durability in harsh environments.
Frequently Asked Questions
Where can I buy E-SWITCH PV7F2T0SS3G3?
You can click on the BUY or RFQ button to purchase PV7F2T0SS3G3 from an authorized E-SWITCH distributor.
How do I troubleshoot issues or seek technical support for part PV7F2T0SS3G3?
You can download the PV7F2T0SS3G3 datasheet or visit the E-SWITCH website for support.
Who is the manufacturer of PV7F2T0SS3G3?
E-SWITCH
