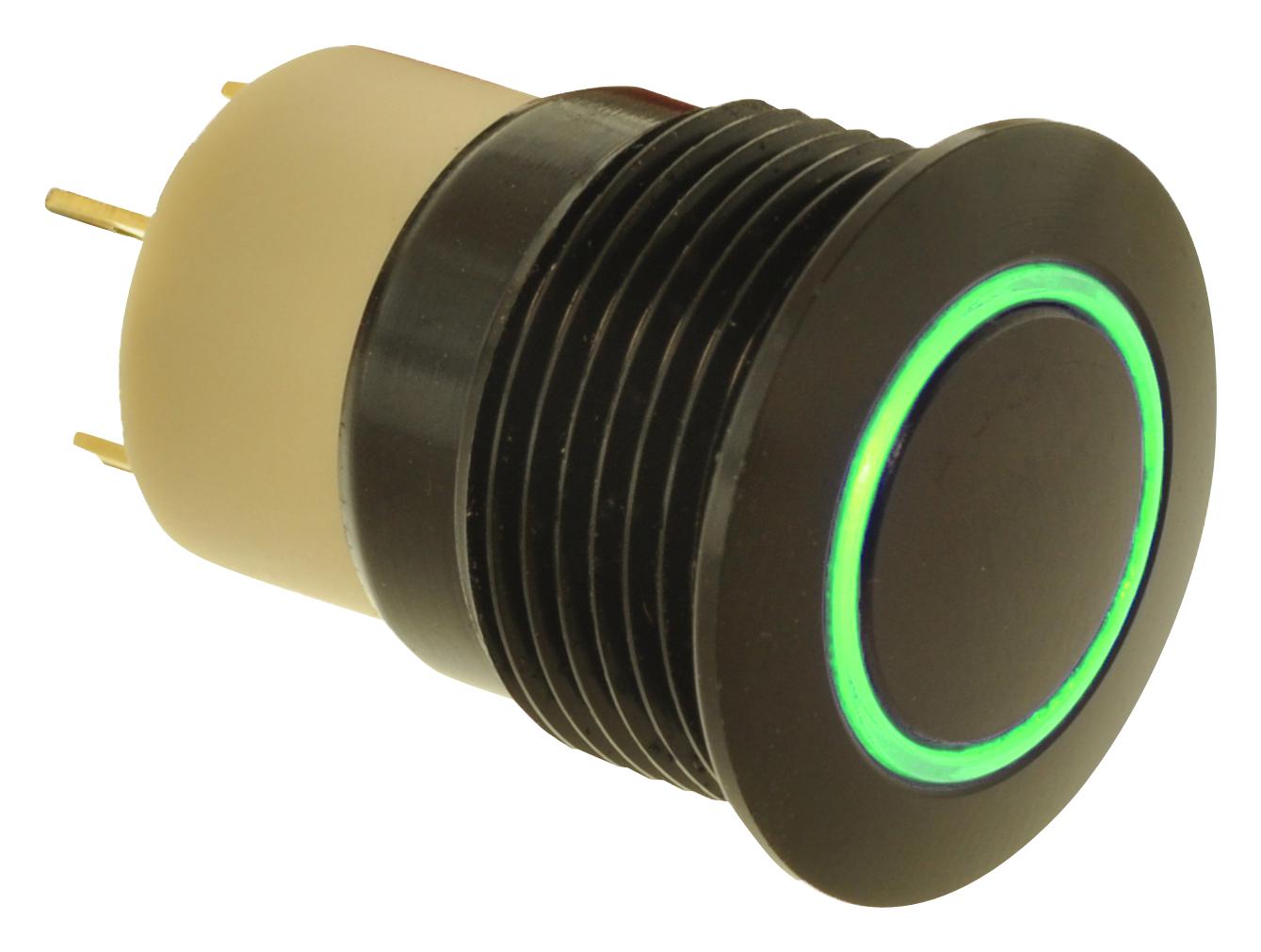

E-SWITCH PVA6LRE21111 Anti-Vandal Switch
The PVAG Series anti-vandal switch is a rugged, IP67-rated SPST toggle switch designed for reliable operation in harsh environments. It features a 16mm diameter panel cutout, multiple actuator options, and illuminated ring indicators available in various colors. Capable of 2A, 36VDC electrical ratings and 1,000,000 mechanical cycles, this switch offers high insulation resistance, dielectric strength, and moisture protection. Suitable for industrial, security, and automation applications, the switch ensures durability and precise control with features like off-on operation and secure mounting.
E-SWITCH PVA6LRE21111 Anti-Vandal Switch Specifications:
- Electrical Rating: 2A, 36VDC
- Mechanical Cycles: 1,000,000 (PVAG6L 100,000)
- Panel Cutout: 16mm diameter
- Contact Resistance: 50mΩ Max.
- Insulation Resistance: 1,000 MΩ @ 500VDC
- Dielectric Strength: 2,000V
- Operating/Storage Temperature: -20°C to 70°C
- Travel: 2.0mm (PVAGL 2.3mm)
- Moisture Protection: IP67 rated
- Contact Arrangement: SPST
- Actuation Force: 460 gf
- Termination: Solder lug or wire leads (500mm long)
- LED Options: Multiple colors including Red, Green, Blue, Yellow, Bi-color
- Bezel: Rounded or Flat designs
- Thread: M16 x 1.0
Buy the Buy E-Switch PVAG Series Anti-Vandal Switch Part Number PVA6LRE21111 Online
Purchase the E-Switch PVAG Series anti-vandal switch online for robust, IP67-rated protection suitable for industrial and security applications. This high-reliability SPST switch features a 16mm panel cutout, illuminated ring indicators in various colors, and a long operational life of up to 1,000,000 mechanical cycles. Easy to install with solder lug or wire lead terminations, it offers excellent insulation resistance and dielectric strength. Ensure superior control and durability with this versatile switch available for quick online ordering.
Buy E-Switch PVAG Series PVA6LRE21111 now and experience unmatched durability, reliable performance, and flexible illumination options for harsh environments.
Frequently Asked Questions
Where can I buy E-SWITCH PVA6LRE21111?
You can click on the BUY or RFQ button to purchase PVA6LRE21111 from an authorized E-SWITCH distributor.
How do I troubleshoot issues or seek technical support for part PVA6LRE21111?
You can download the PVA6LRE21111 datasheet or visit the E-SWITCH website for support.
Who is the manufacturer of PVA6LRE21111?
E-SWITCH
