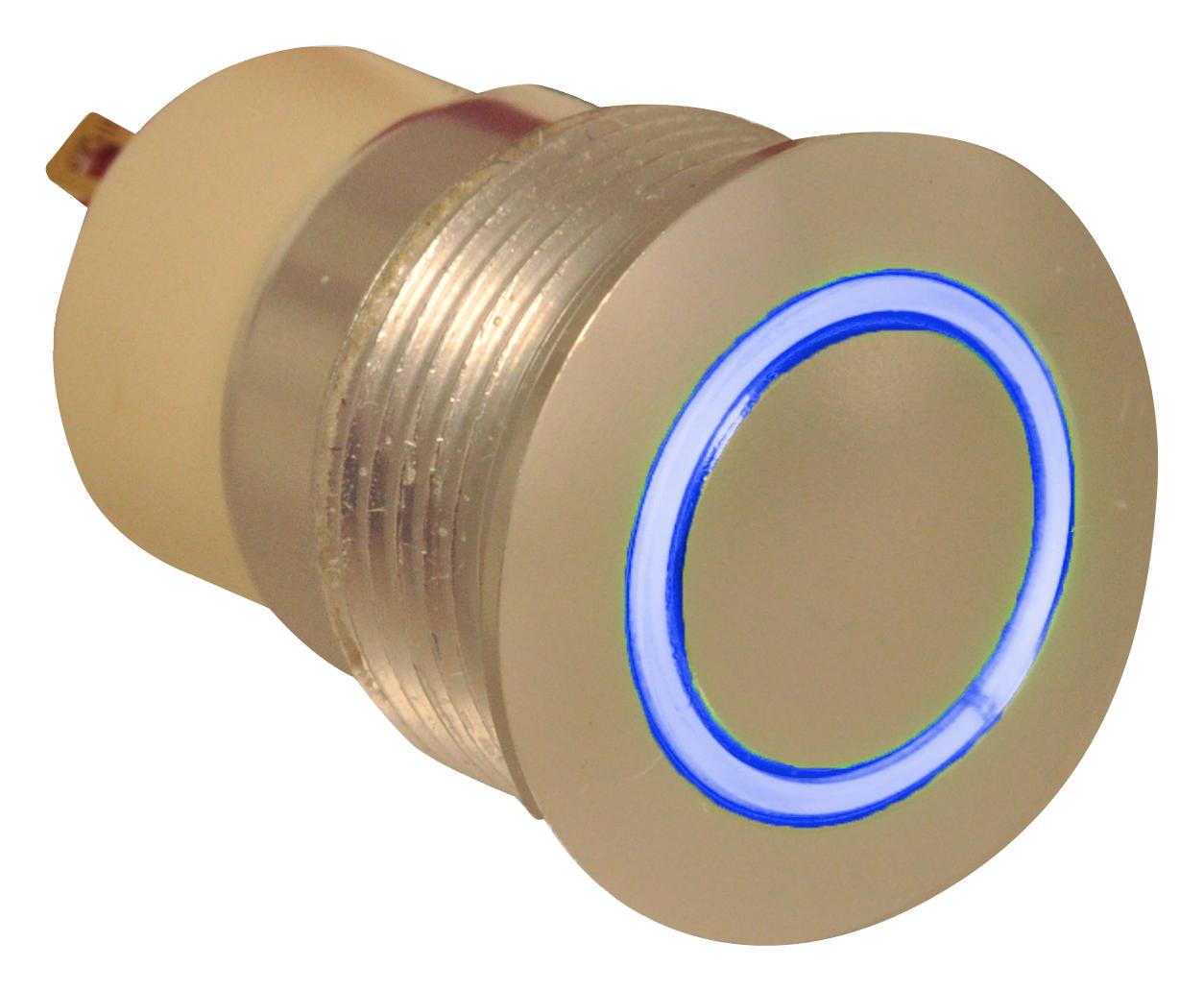

E-SWITCH PVA6LRE21241 Anti-Vandal Switch
The PVA6L series anti-vandal switches are rugged, high-reliability pushbutton or toggle switches suitable for harsh environments. Featuring IP67 rated moisture protection, these switches can operate reliably from -20°C to 70°C, with a mechanical life up to 1,000,000 cycles. They have a 16mm panel cutout, SPST contact configuration, and come with multiple LED color options for illumination. Ideal for industrial control panels, security systems, and outdoor equipment, they ensure durability, enhanced visibility, and secure actuation with a sleek design compatible with various panel thicknesses.
E-SWITCH PVA6LRE21241 Anti-Vandal Switch Specifications:
- Electrical Rating: 2A, 36VDC
- Mechanical Life: 1,000,000 Cycles
- Panel Cutout: 16mm diameter
- Operating Temperature: -20°C to 70°C
- Ingress Protection: IP67 rated
- Contact Resistance: 50mΩ Max. Initial
- Insulation Resistance: 1,000MΩ @ 500VDC
- Dielectric Strength: 2,000V
- Actuation Force: 460 gf
- Travel: 2.0mm
- Panel Thickness: 1-8mm
- LED Colors Available: White, Red, Green, Blue, Yellow, Bi-color (Red/Green)
- Housing Material: Anodized Aluminum or Stainless Steel
- Termination: Solder lug or 500mm wire leads
- Mounting: Flanged with Hex Nut Torque: 11.5 kgf/cm
Buy the Buy E-Switch PVA6L Part Number PVA6LRE21241 Online
Order the E-Switch PVA6L series anti-vandal switches online and enjoy quick delivery. These rugged switches are perfect for industrial control, outdoor equipment, and security systems, providing IP67 rated moisture protection, high durability, and multiple LED illumination options. Their sleek design ensures reliable operation from -20°C to 70°C, with a panel cutout of 16mm diameter, SPST contact configuration, and long mechanical life of up to 1 million cycles. Upgrade your control panel with these reliable, easy-to-install switches today for superior durability and visibility.
Get E-Switch PVA6L series anti-vandal switch today—designed for robust performance in harsh environments and long-lasting durability.
Frequently Asked Questions
Where can I buy E-SWITCH PVA6LRE21241?
You can click on the BUY or RFQ button to purchase PVA6LRE21241 from an authorized E-SWITCH distributor.
How do I troubleshoot issues or seek technical support for part PVA6LRE21241?
You can download the PVA6LRE21241 datasheet or visit the E-SWITCH website for support.
Who is the manufacturer of PVA6LRE21241?
E-SWITCH
