E-SWITCH PVL10FWS14 Pilot Indicator

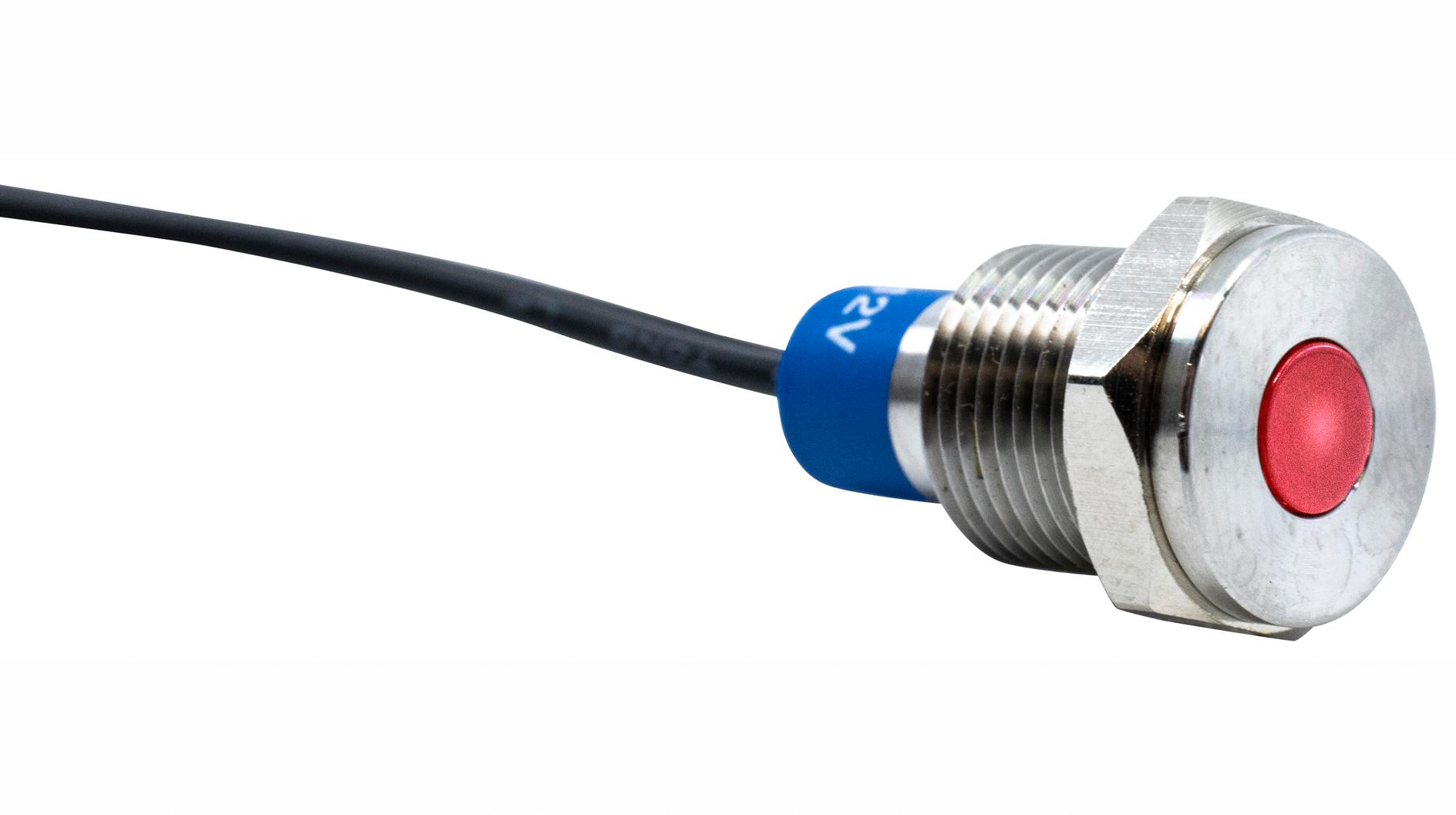

The PVL series pilot indicator features IP67 rated durable stainless steel or black body with various LED color options including red, green, blue, white, yellow, and orange. It offers panel cutouts from 6mm to 19mm diameter, operating voltages from 6V to 110V, and a lamp life of 40,000 hours. Its compact design with sealed ingress protection makes it suitable for industrial control panels, providing reliable illumination and easy mounting with recommended panel thicknesses up to 10mm. Optional wire leads enhance wiring flexibility, and the indicator is ideal for harsh environments.
E-SWITCH PVL10FWS14 Pilot Indicator Specifications:
- Contact Arrangement: Lamp indicator
- Operating/Storage Temperature: -25°C to 55°C
- Lamp Life: 40,000 Hours Nominal
- Ingress Protection: IP67
- Panel Thickness: 1-6mm or 1-10mm, depending on model
- Body Material: Stainless Steel or Black finish
- Panel Cutout Sizes: 6mm to 19mm diameter
- Illumination Voltage Options: 6V, 12V, 24V, 110V
- LED Colors: Red, Orange, Yellow, Green, Blue, White
- Wire Lead Length: 150mm optional
- Mounting Nut Torque: 5-14 Nm
- Thread Options: M6 x 0.5, M8 x 0.75, M10 x 0.75, M14 x 1.0, M12 x 1.0
- Schematic and dimensions available for installation
Buy the Buy PVL Series Pilot Indicator Part Number PVL10FWS14 Online
Explore the PVL series pilot indicator, designed for harsh industrial environments with IP67 protection, durable stainless steel or black body, and a variety of LED colors. These indicators feature multiple panel cutout sizes from 6mm to 19mm, compatible with voltages from 6V to 110V, and offer a lamp life of 40,000 hours. Their sealed design ensures reliable operation even in wet or dusty conditions. Easy to wire with optional 150mm leads, these indicators are suitable for control panels requiring long-lasting, visible illumination in demanding environments.
Get PVL series pilot indicator today—built for durability and reliable industrial control illumination, with multiple size and voltage options.
