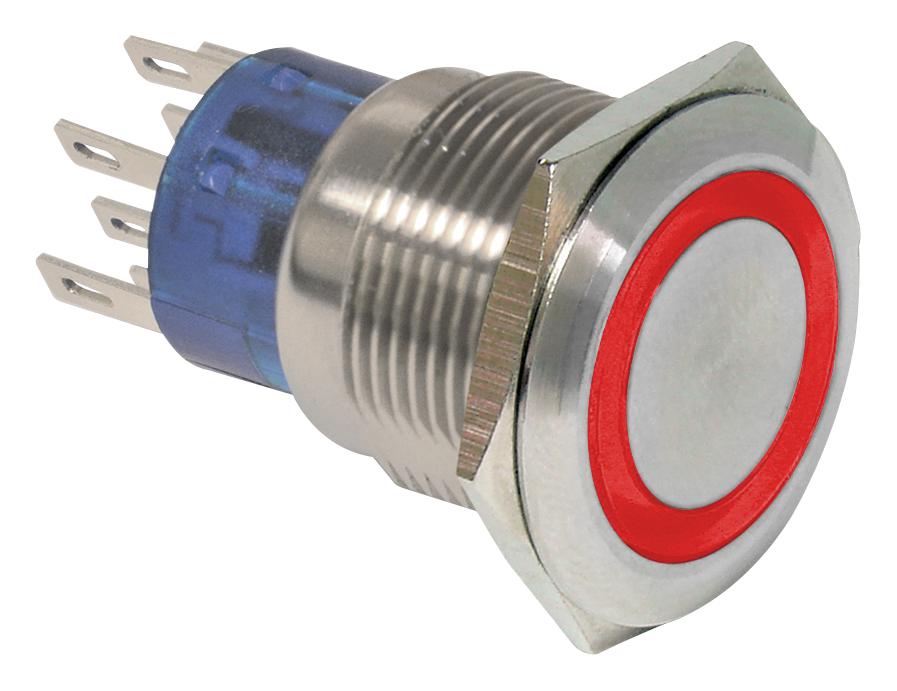

E-SWITCH ULV7F2G11311 Anti-Vandal Switch
The ULV7 Series anti-vandal switches are robust, IP67-rated devices designed for demanding applications. They feature a smooth actuation with a travel of 3.2mm, suitable for single or double pole configurations, and have a mechanical life of 1,000,000 cycles. These illuminated SPDT and DPDT switches support voltages from 3V to 220V, with a contact resistance of 50mΩ. They are ideal for medical equipment, industrial control, and security systems, offering durability, high resistance to moisture, and customizable graphics options.
E-SWITCH ULV7F2G11311 Anti-Vandal Switch Specifications:
- Electrical Rating: 3A, 250VAC
- Mechanical Life: 1,000,000 cycles (momentary); 500,000 cycles (latching)
- Electrical Life: 50,000 Cycles
- Contact Resistance: 50mΩ
- Insulation Resistance: 1000 MΩ @ 500VDC
- Dielectric Strength: 2,000VAC
- Operating/Storage Temperature: -20°C to 55°C
- Travel: 3.2mm
- Moisture Protection: IP67
- Contact Arrangement: SPDT or DPDT
- Actuation Force: Single Pole: 2.5N; Double Pole: 3.5N
- Panel Thickness: 1-10mm
- Hex Nut Torque: 5-14Nm
- Mechanical Impact Protection: IK10
- Agency Approvals: cURus
Buy the ULV7 Series Anti-Vandal Switch: ULV7F2G11311
Discover the high durability ULV7 Series anti-vandal switch, designed for demanding environments. Featuring an IP67 rating, illuminated options, and dual contact configurations, this switch provides reliable performance in medical, industrial, and security applications. With a travel of 3.2mm and a mechanical life of over 1 million cycles, it ensures long-term dependability. Easy to install with panel thickness support of 1-10mm and a hex nut torque of 5-14Nm, making it an ideal choice for rugged control systems.
Buy ULV7 Series anti-vandal switch ULV7F2G11311 now and experience unmatched durability, moisture resistance, and customizable options for demanding control applications.
