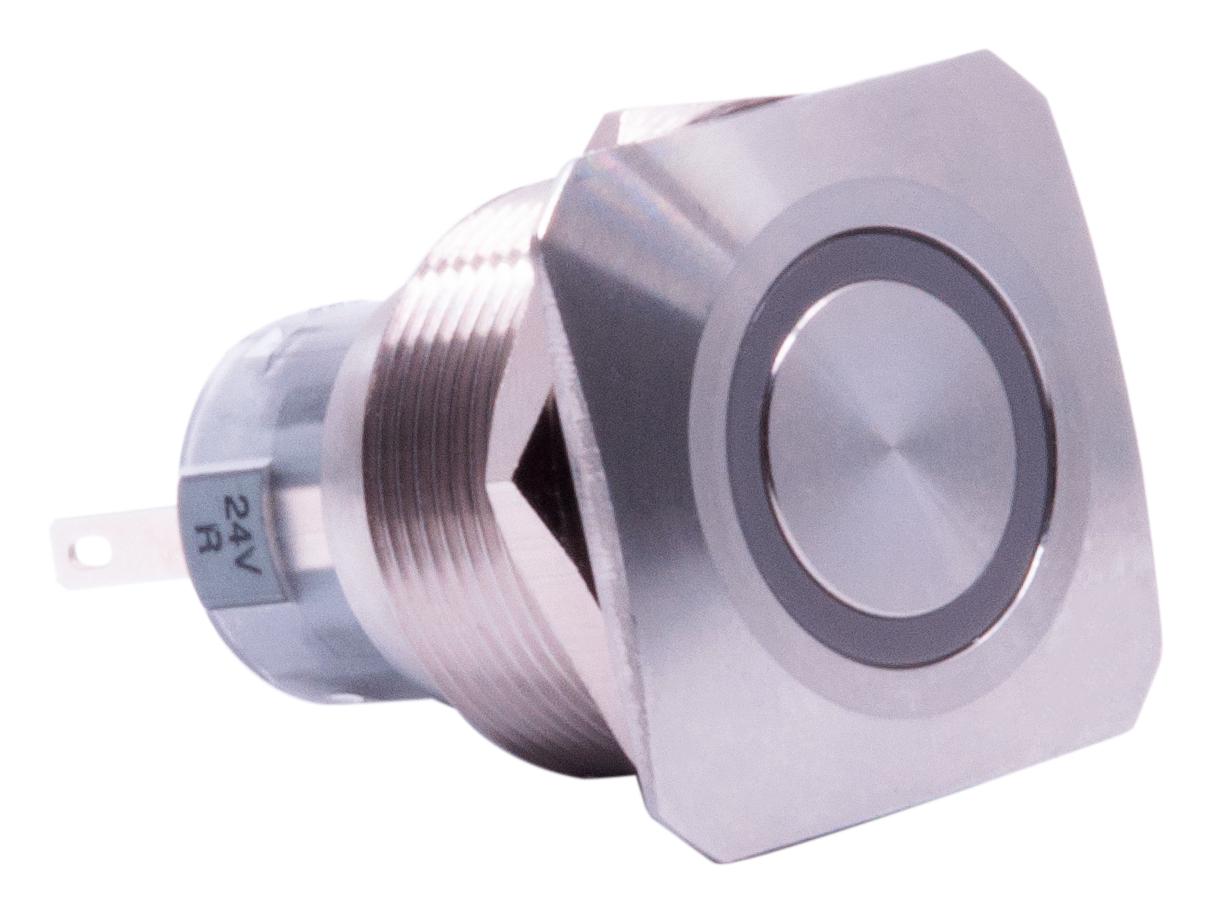

E-SWITCH PVS7F2BSS335 Vandal Switch
The PVS7 Series anti-vandal switch is a durable, stainless steel switch with a 22mm diameter panel cutout, IP65 moisture protection, and illuminated LED options. It features SPDT and DPDT contact arrangements, soldered wire leads (300mm), and a travel of 2.50mm. Suitable for harsh environments, it offers various actuation and illumination options, including RGB LED lighting, with a maximum panel thickness of 11mm. Ideal for industrial, security, and control applications requiring robust, vandal-resistant switching solutions.
E-SWITCH PVS7F2BSS335 Vandal Switch Specifications:
- Electrical Rating: 2A, 24VDC
- Electrical Life: 50,000 Cycles
- Contact Resistance: 50mQ Max.
- Insulation Resistance: 1000 MO Min.
- Dielectric Strength: 2,000VAC
- Operating/Storage Temperature: -20°C to 55°C
- Travel: 2.50mm
- Moisture Protection: IP65
- Contact Arrangement: SPDT, DPDT
- Panel Thickness: 1-11mm
- Mounting Nut Torque: 5-14Nm
Buy the Vandal Switch Series PVS7: PVS7F2BSS335
Purchase the high-quality Vandal Switch Series PVS7F2BSS335 online today and enhance your control panel's durability with a robust, vandal-resistant switch. Featuring IP65 protection, LED illumination options, and a compact 22mm diameter, this switch is ideal for harsh environments. With a travel of 2.50mm, it offers reliable 2A, 24VDC operation for demanding industrial or security applications. Quickly order now to get dependable, corrosion-resistant switching solutions delivered fast to your project site.
Order your durable stainless steel Vandal Switch Series PVS7F2BSS335 today and ensure reliable, vandal-resistant control for your industrial or security projects.
Frequently Asked Questions
Where can I buy E-SWITCH PVS7F2BSS335?
You can click on the BUY or RFQ button to purchase PVS7F2BSS335 from an authorized E-SWITCH distributor.
How do I troubleshoot issues or seek technical support for part PVS7F2BSS335?
You can download the PVS7F2BSS335 datasheet or visit the E-SWITCH website for support.
Who is the manufacturer of PVS7F2BSS335?
E-SWITCH
