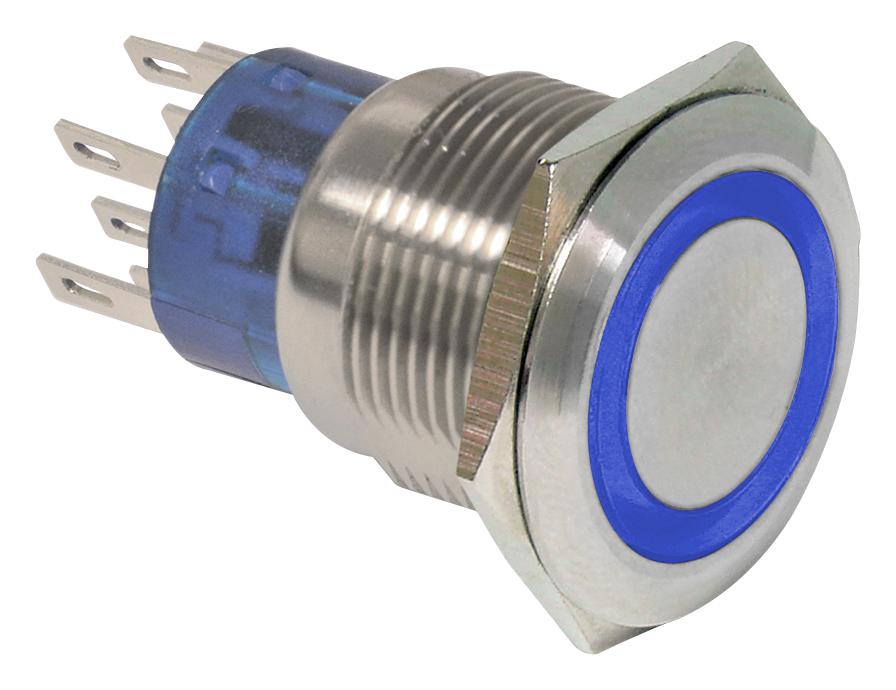

E-SWITCH ULV7F23SS344 Anti-Vandal Switch
The ULV7 Series Anti-Vandal Switch is a durable, high-quality electrical switch rated for 3A, 250VAC, with a moisture protection class of IP67. It features a mechanical life of 1,000,000 cycles (momentary) and an electrical life of 50,000 cycles, ideal for industrial environments. The switch offers contact resistance of 50mΩ, dielectric strength of 2,000VAC, and an operating temperature range from -20°C to 55°C. Available in SPDT or DPDT configurations, it supports panel thicknesses from 1-10mm with a travel of 3.2mm. Optional LED illumination and various actuator options enhance functionality and customization.
E-SWITCH ULV7F23SS344 Anti-Vandal Switch Specifications:
- Electrical Rating: 3A, 250VAC
- Mechanical Life: 1,000,000 cycles (momentary); 500,000 cycles (latching)
- Electrical Life: 50,000 Cycles
- Contact Resistance: 50mΩ
- Insulation Resistance: 1000 MQ @ 500VDC
- Dielectric Strength: 2,000VAC
- Operating/Storage Temperature: -20°C to 55°C
- Travel: 3.2mm
- Moisture Protection: IP67
- Contact Arrangement: SPDT or DPDT
- Actuation Force: Single Pole: 2.5N; Double Pole: 3.5N
- Panel Thickness: 1-10mm
- Hex Nut Torque: 5-14Nm
- Mechanical Impact Protection: IK10
- Agency Approvals: cURus
Buy the Buy ULV7 Series Anti-Vandal Switch Part Number ULV7F23SS344 Online
Purchase the ULV7 Series Anti-Vandal Switch online for reliable performance in harsh industrial conditions. Featuring IP67 moisture protection, a high cycle mechanical lifespan, and optional LED illumination, it is suitable for various panel configurations. Easy to install with panel thickness support from 1 to 10mm, it ensures lasting durability and consistent operation. The switch supports SPDT or DPDT contact arrangements and has a travel of 3.2mm. Perfect for industrial, medical, and automation applications requiring robust, vandal-resistant switching solutions.
Get ULV7F23SS344 today—built for industrial durability with IP67 rated protection and high cycle life for demanding environments.
Frequently Asked Questions
Where can I buy E-SWITCH ULV7F23SS344?
You can click on the BUY or RFQ button to purchase ULV7F23SS344 from an authorized E-SWITCH distributor.
How do I troubleshoot issues or seek technical support for part ULV7F23SS344?
You can download the ULV7F23SS344 datasheet or visit the E-SWITCH website for support.
Who is the manufacturer of ULV7F23SS344?
E-SWITCH
