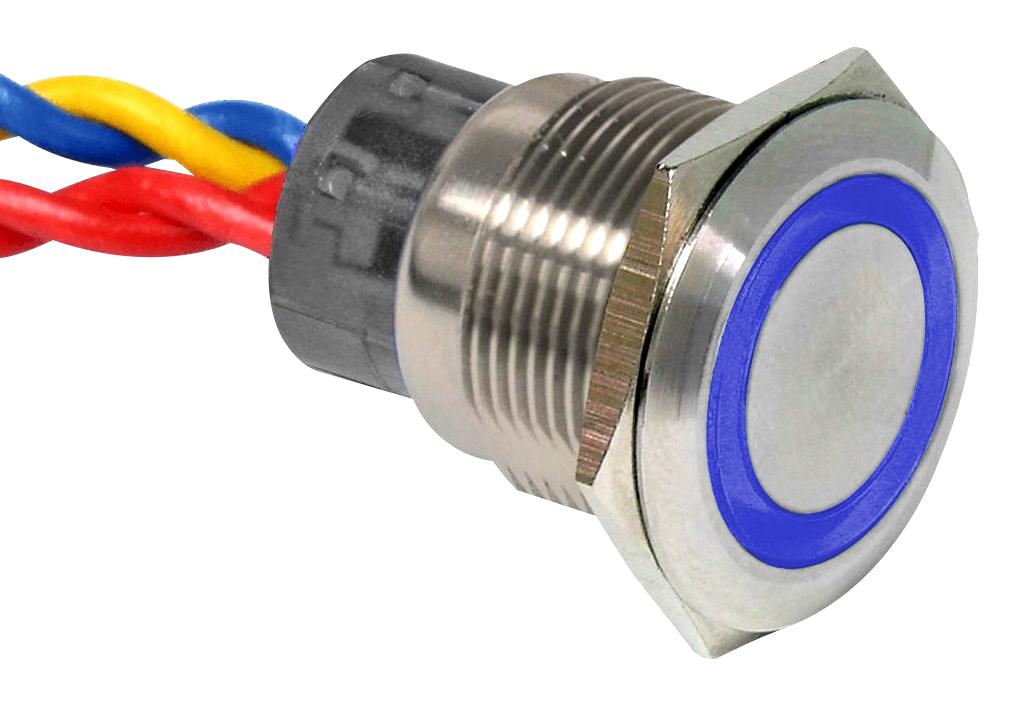

E-SWITCH ULV4FMGSS341 Anti-Vandal Switch
The ULV4 Series anti-vandal switches are robust, IP67-rated devices suitable for harsh environments. They feature multiple switch types including SPDT, DPDT, rocker, slide, and pushbutton, with illuminated options available for enhanced visibility. These switches have a panel cutout diameter of 19mm and support various wiring configurations with wire lengths up to 500mm. Mechanical and electrical lifespans reach up to 1,000,000 and 50,000 cycles respectively, making them ideal for industrial applications requiring durability, reliable operation, and customizable graphic options. They are UL certified and resist moisture, dust, and impacts.
E-SWITCH ULV4FMGSS341 Anti-Vandal Switch Specifications:
- Electrical Rating: 3A, 125/250VAC
- Mechanical Life: 1,000,000 cycles (momentary); 500,000 cycles (latching)
- Electrical Life: 50,000 Cycles
- Contact Resistance: 50mΩ
- Insulation Resistance: 1000 MΩ @ 500VDC
- Dielectric Strength: 2,000VAC
- Operating/Storage Temperature: -20°C to 55°C
- Travel: 3.2mm
- Moisture Protection: IP67
- Contact Arrangement: SPDT or DPDT
- Actuation Force: Single Pole: 2.5N; Double Pole: 3.5N
- Panel Thickness: 1-10mm
- Hex Nut Torque: 5-14Nm
- Agency Approvals: cURus
- Thread Size: M19 x 1.0
- Panel Cutout Diameter: 19mm
- Wire Lead Lengths: 300mm or 500mm options
- Wire Gauge: 24AWG or 18AWG UL rated wires
- Panel Mounting: Molded back with wire leads or detachable socket, optional illumination and graphics
- Certifications: UL
Buy the SIAL Series Anti-Vandal Switch: ULV4FMGSS341
Purchase the robust and versatile anti-vandal switch online today to enhance your industrial or security projects. These IP67-rated switches are designed for durability, with options for illumination, various configurations including SPDT and DPDT, and wiring lengths up to 500mm. Their high cycle life and certification ensure long-term dependable performance under harsh conditions. Easy to install with 19mm panel cutout, they are ideal for automation, security systems, and control panels. Get yours now and benefit from fast, secure online shopping for quality industrial switches.
Order your SIAL Series ULV4FMGSS341 anti-vandal switch today and ensure reliable operation in harsh environments with customizable illumination and wiring options.
Frequently Asked Questions
Where can I buy E-SWITCH ULV4FMGSS341?
You can click on the BUY or RFQ button to purchase ULV4FMGSS341 from an authorized E-SWITCH distributor.
How do I troubleshoot issues or seek technical support for part ULV4FMGSS341?
You can download the ULV4FMGSS341 datasheet or visit the E-SWITCH website for support.
Who is the manufacturer of ULV4FMGSS341?
E-SWITCH
