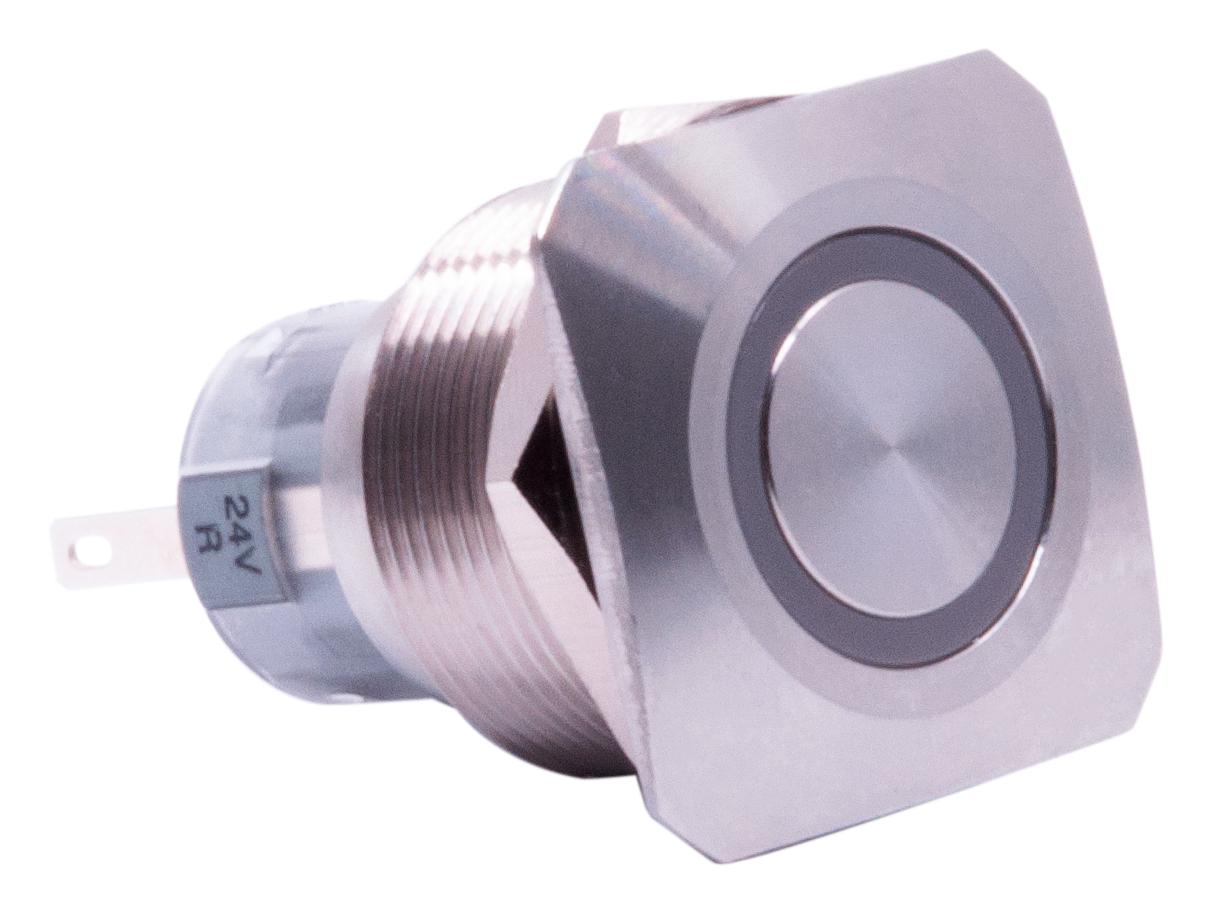

E-SWITCH PVS7F2HSS341 Anti-Vandal Switch
The PVS7 series anti-vandal switch is a durable, IP65 rated switch featuring stainless steel body, 22mm diameter panel cutout, and multiple actuation and illumination options including RGB LED. It offers SPDT and DPDT contact arrangements, soldered or wired leads, and is suitable for industrial control panels requiring reliable, tamper-resistant switches. The switch supports a variety of voltages, with illuminated options for enhanced visibility, and is designed for panel thickness up to 11mm, making it ideal for rugged environments.
E-SWITCH PVS7F2HSS341 Anti-Vandal Switch Specifications:
- Electrical Rating: 2A, 24VDC
- Electrical Life: 50,000 Cycles
- Contact Resistance: 50mΩ Max.
- Insulation Resistance: 1000 MΩ Min.
- Dielectric Strength: 2,000VAC
- Operating/Storage Temperature: -20°C to 55°C
- Travel: 2.50mm
- Moisture Protection: IP65
- Contact Arrangement: SPDT, DPDT
- Actuation Force: 4 N
- Panel Thickness: 1-11mm
- Mounting Nut Torque: 5-14Nm
- Body Finish: Stainless Steel
- Diameter: 22mm
- Wire Lengths: 300mm (various colors), UL1015 24AWG
- Illumination: RGB LED options with voltage ranges 3-250V
- Actuator Options: Flat, Laser Etched
Buy the Duratrek PVS7F2HSS341 – Reliable Anti-Vandal Switch for Industrial Applications
Enhance your industrial control solutions with the Duratrek anti-vandal switch, featuring stainless steel body, IP65 rating, RGB LED illumination, and multiple contact options. This switch provides reliable performance in harsh environments, supporting panel thickness up to 11mm. Easy to install with a 22mm diameter cutout and versatile wiring options. Ideal for rugged industrial applications, offering long-lasting durability with 50,000 cycles life. Upgrade your machinery with this robust, tamper-resistant switch designed for safety and visibility.
Buy Duratrek PVS7F2HSS341 now and experience unmatched durability, IP65 protection, and flexible LED illumination for industrial control panels.
