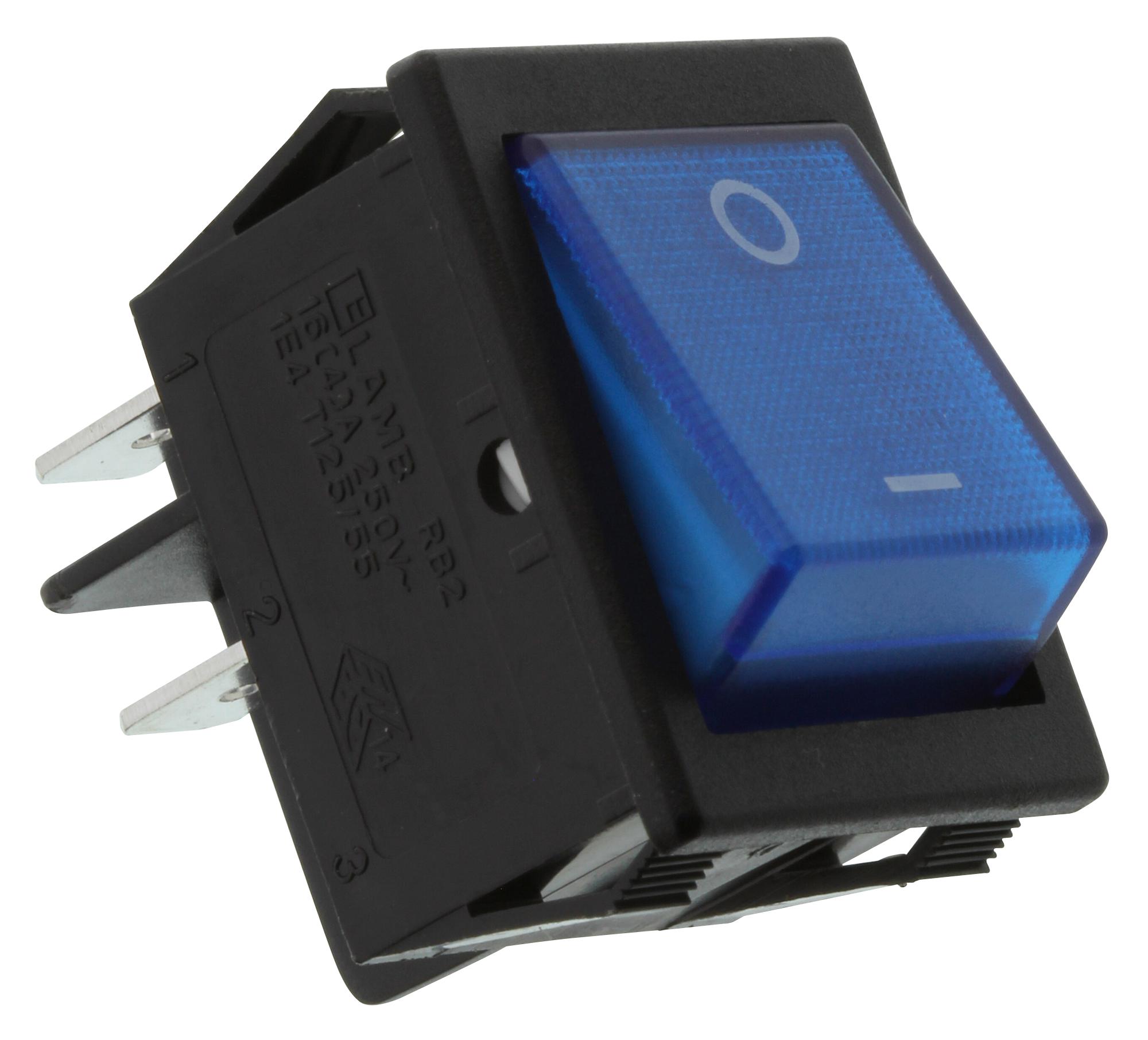

E-SWITCH RB2F42C102R147 Industrial Rocker Switch
The RB2 Series Rocker Switch is a durable, vandal-resistant switch suitable for industrial and outdoor applications. It features a high-quality construction with options for illumination, multiple terminal configurations, and IP54 ingress protection with an optional silicone cap. Rated for various voltages up to 250VAC and currents up to 20A, it supports diverse functions including momentary, maintained, and multiple position options. Its rugged design ensures reliable operation in demanding environments, making it ideal for control panels, machinery, and automation systems.
E-SWITCH RB2F42C102R147 Industrial Rocker Switch Specifications:
- Electrical Rating: 16A 125VAC T85, 20A 125VAC T105, 16A 250VAC T85, 20A 250VAC T105, 10A 250VAC T85/55
- Voltage Rating: up to 250VAC
- Current Rating: up to 20A
- Ingress Protection: IP54 with optional silicone cap
- Operating Temperature: -20°C to 65°C
- Contact Resistance: 35mΩ Max at 50VAC
- Insulation Resistance: 100MΩ Min at 500VDC
- Dielectric Strength: 1500VAC for 1 min
- Mechanical Life: 10,000 Cycles
- Body Dimensions: approximately 22mm x 30mm cutout, panel thickness 0.75-3.0mm
- Function Options: 2-Position, 3-Position, illuminated or non-illuminated, various contact configurations
- Material: Durable plastic body with metal terminals
- Marking and Lens Colors: black, white, almond, grey, red, green, yellow, blue, with full/clear lens options
Buy the Generic RB2F42C102R147 – Reliable Industrial Switch for Control Panels
Secure your control systems with the RB2 Series Rocker Switch. Designed for durability and reliability, it offers multiple configurations, illumination options, and IP54 ingress protection. Whether for machinery, automation, or control panels, this switch supports up to 20A at 250VAC, ensuring robust performance in demanding environments. Easy to install with a standard 22mm x 30mm cutout, it features tactile feedback and various actuation types, making it an essential component for reliable industrial automation solutions. Purchase online today for quick delivery and peace of mind.
Buy RB2 Series Rocker Switch now and enjoy reliable operation with versatile functions, high current ratings, and IP54 protection for industrial control systems.
Frequently Asked Questions
Where can I buy E-SWITCH RB2F42C102R147?
You can click on the BUY or RFQ button to purchase RB2F42C102R147 from an authorized E-SWITCH distributor.
How do I troubleshoot issues or seek technical support for part RB2F42C102R147?
You can download the RB2F42C102R147 datasheet or visit the E-SWITCH website for support.
Who is the manufacturer of RB2F42C102R147?
E-SWITCH
