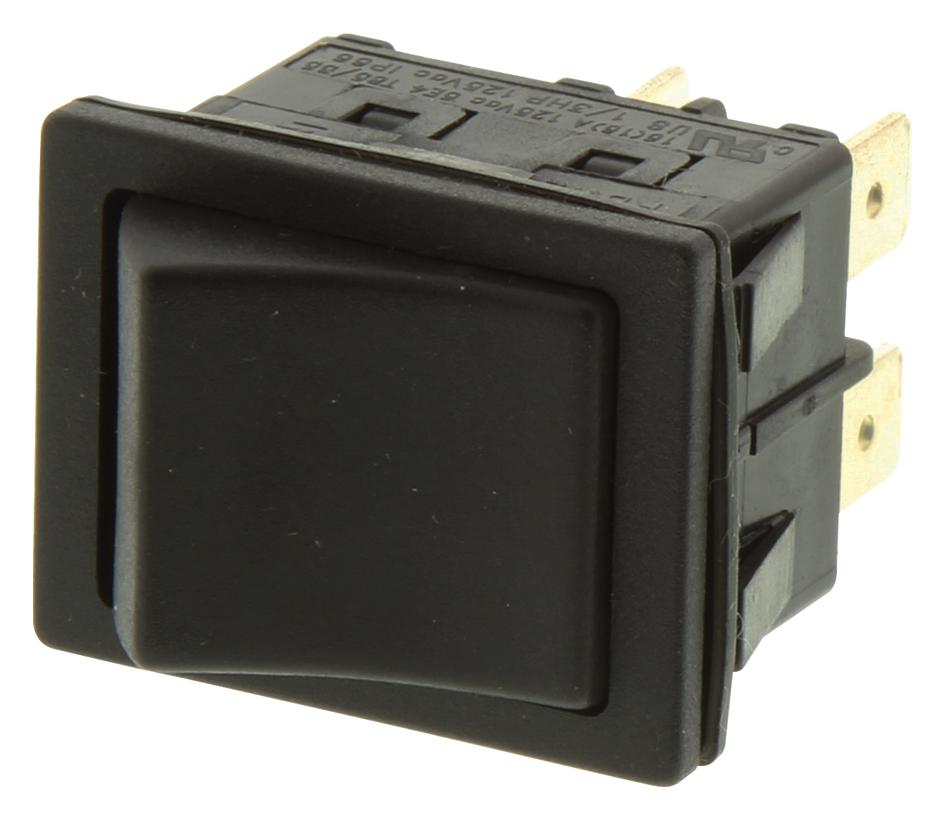

E-SWITCH RBW2ABLKBLKEF0 Industrial Toggle Switch
The RBW2 series are high-quality, sealed toggle switches designed for industrial applications. Rated for 16A at 125VAC and 10A at 250VAC, these switches feature IP66 ingress protection, making them suitable for harsh environments. They offer full illumination options, including LED indicators, and are UL-approved up to 1/3HP. The switches have a panel cutout of 22mm x 30mm, with various color and configuration options. Built for durability, these switches can handle up to 10,000 cycles, with a contact resistance below 30mΩ, ensuring reliable operation in demanding conditions.
E-SWITCH RBW2ABLKBLKEF0 Industrial Toggle Switch Specifications:
- Electrical Rating: 16A 125VAC, 5E4 T85, 1/3HP 125VAC, IP66, 10A 250VAC, 5E4 T85
- Cycles: 10,000
- Contact Resistance: <30mΩ Max
- Insulation Resistance: 500MΩ Min at 500VDC
- Dielectric Strength: 1000VAC for 1 Minute
- Operating Temperature: -20°C to 85°C
- Ingress Protection: IP66
- Panel Cutout: 22mm x 30mm
- Function: DPST Off-On, DPDT On-On
- Panel Thickness: 25.5 to 50.0mm
- Actuator Colors: Black, White, Red, Full Illumination Options Available
- Voltage Indicators: Neon, Incandescent, LED options
Buy the Buy Industrial Switches Part Number RBW2ABLKBLKEF0 Online
Purchase the industrial toggle switch RBW2ABLKBLKEF0 online today and enjoy fast shipping, excellent quality, and dependable operation for your control panel needs. This sealed switch offers IP66 protection, full illumination options, and UL approval up to 1/3HP, making it perfect for demanding environments. Its robust construction ensures durability over 10,000 cycles, with low contact resistance for reliable switching. Choose from various colors and configurations to match your application requirements. Secure your supply now and enhance your equipment's performance with this high-performance switch available online.
Buy Industrial Switches RBW2ABLKBLKEF0 now and experience unmatched reliability and performance with sealed, durable, and UL-approved design suited for harsh conditions.
Frequently Asked Questions
Where can I buy E-SWITCH RBW2ABLKBLKEF0?
You can click on the BUY or RFQ button to purchase RBW2ABLKBLKEF0 from an authorized E-SWITCH distributor.
How do I troubleshoot issues or seek technical support for part RBW2ABLKBLKEF0?
You can download the RBW2ABLKBLKEF0 datasheet or visit the E-SWITCH website for support.
Who is the manufacturer of RBW2ABLKBLKEF0?
E-SWITCH
