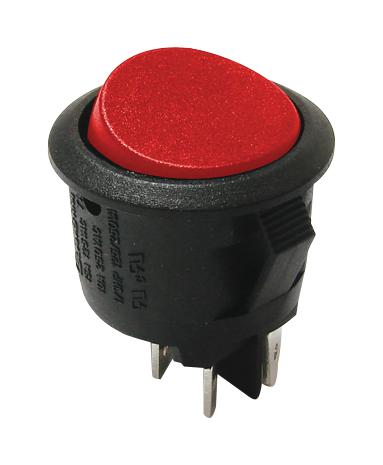

E-SWITCH RRA12C1000116 Illuminated Control Switch
The RRA Series illuminated switches feature up to two poles and throws, with UL approvals and full illumination options for industrial control. Constructed with polyamide bodies and silver alloy contacts, these switches are rated for 15A at 125VAC, 1A at 125VAC, and 0.5A at 250VAC. They have a temperature range from -20°C to 105°C, requiring 10,000 cycles for durability. Equipped with PVC water-proof caps, they offer reliable operation for various industrial applications including water-resistant environments, with designated color and marking options, making them versatile for control panels.
E-SWITCH RRA12C1000116 Illuminated Control Switch Specifications:
- Rating: 15A 125VAC [UR, cUR]
- 0A 250VAC [UR, CUR]
- 1I3HP 125/250VAC [UR, cUR]
- Rating Option 1: 1A 125VAC [UR, cUR]
- Temperature Range: -20°C to 105°C [UR, CUR]
- Electrical Life: 10,000 Cycles
- Contact Resistance: 35mΩ Max. at 50VAC
- Insulation Resistance: 100 MΩ Min. at 50VDC
- Dielectric Strength: 1,500VAC for 1 Minute
- Material: Polyamide 6/6 UL94 V-2, Polycarbonate UL94 V-2
- Contacts: Silver Alloy
- Terminals: Silver-Plated Copper
- UV-resistant PVC Cap for Water Protection
- Switch Color Options: Black, White, Almond, Grey, Red, Blue, Green, Orange
- Marking Types: Full, Custom Colors & Markings Available
- Lens Colors: Clear, Red, Green
- Mechanical Life: 10,000 Cycles
- Mounting: Panel Mount with various actuator and lens options
Buy the RRA Series Illuminated Switches – Reliable Control Components for Industrial Applications
Purchase RRA Series illuminated control switches online today for dependable operation in industrial control panels. Featuring UL approval, water-resistant PVC caps, and robust silver alloy contacts, these switches support up to 15A at 125VAC and are rated for 10,000 operational cycles. Designed with durable polyamide bodies and customizable markings, they are ideal for manufacturing, automation, and control applications requiring reliable, high-performance switching solutions. Secure your control components easily through our online store now.
Get RRA Series illuminated switches today—built for precise control and long-lasting durability in industrial environments.
Frequently Asked Questions
Where can I buy E-SWITCH RRA12C1000116?
You can click on the BUY or RFQ button to purchase RRA12C1000116 from an authorized E-SWITCH distributor.
How do I troubleshoot issues or seek technical support for part RRA12C1000116?
You can download the RRA12C1000116 datasheet or visit the E-SWITCH website for support.
Who is the manufacturer of RRA12C1000116?
E-SWITCH
