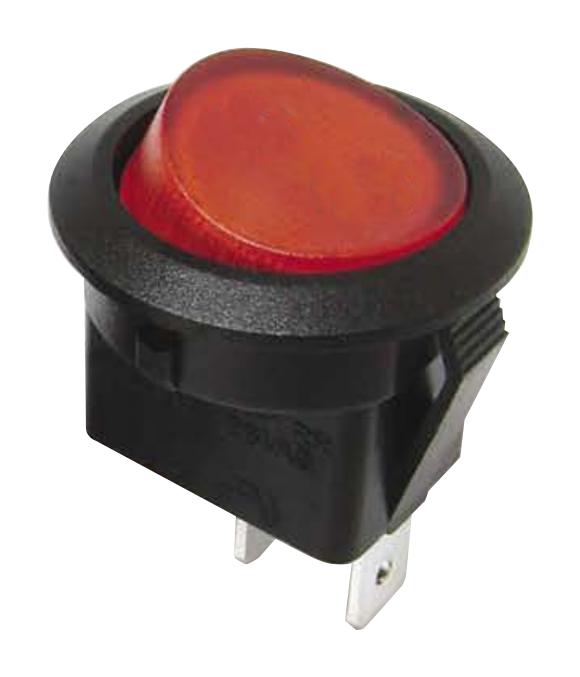

E-SWITCH RR111C1000116 Industrial Switch
This switch features a high-quality design with UL and VDE approvals, offering multiple illumination and lens options. It is a single-pole switch suitable for various industrial and electronic applications. Made from durable Polyamide 6/6 and polycarbonate materials, it ensures long-lasting performance. The switch supports ratings up to 16A at 125VAC and 10A at 250VAC, with a mechanical life of 10,000 cycles. Ideal for control panels, automation, and electrical systems requiring reliable switching and illumination features.
E-SWITCH RR111C1000116 Industrial Switch Specifications:
- Body Material: Polyamide 6/6, UL94 V-2
- Actuator Material: Polyamide 6/6, UL94 V-2
- Lens Material: Polycarbonate, UL94 V-2
- Terminal Type: Silver-Plated Copper
- Current Rating: 16A at 125VAC, 10A at 250VAC
- Electrical Life: 10,000 cycles
- Contact Resistance: Max 35mΩ at 50VAC
- Insulation Resistance: Min 100MΩ at 50V
- Dielectric Strength: 1500VAC for 1 minute
- Ambient Temperature Range: -20°C to 105°C (UL, cUL), -20°C to 125°C (VDE)
- Terminals Options: Solder, 4.8mm Tab (small hole), 8.0mm Tab (large hole)
- Dimensions: standard mounting cutout 0.787 inches (20 mm)
Buy the Buy UL Approved Industrial Switch Part Number RR111C100116 Online
Purchase the high-quality industrial switch RR111C100116 online for reliable performance in control panels and automation systems. Designed with durable materials and supporting ratings of up to 16A at 125VAC, this switch offers versatile illumination and terminal options including solder and tab connections. Features include UL and VDE approvals, a lifespan of 10,000 cycles, and excellent resistance to electrical stress. Ideal for industrial, manufacturing, and electrical control applications requiring robust switching solutions and easy installation. Order now for fast delivery and quality assurance.
Get UL and VDE certified switch RR111C100116 today—engineered for reliability, long-lasting performance, and versatile control applications.
Frequently Asked Questions
Where can I buy E-SWITCH RR111C1000116?
You can click on the BUY or RFQ button to purchase RR111C1000116 from an authorized E-SWITCH distributor.
How do I troubleshoot issues or seek technical support for part RR111C1000116?
You can download the RR111C1000116 datasheet or visit the E-SWITCH website for support.
Who is the manufacturer of RR111C1000116?
E-SWITCH
