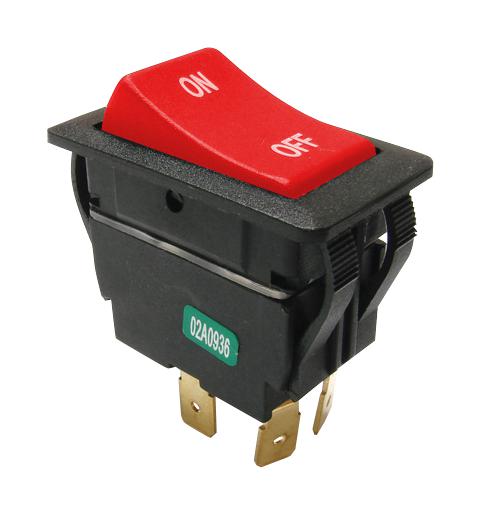

E-SWITCH RVW42D1923 Rocker Switch
The RVW series rocker switch is a versatile, IP54-rated electrical switch suitable for industrial environments. It offers a 20A 125VAC maintain rating, 15A 277VAC, and 2HP 110/250VAC. The switch features a panel cutout of 37.5mm x 21mm, making it compatible with various panel thicknesses from 2.50 to 4.50 mm. It is available in multiple terminal configurations including solder, screw, and quick-connect options, with large contact resistance of 50 mO max and excellent dielectric strength. Ideal for industrial automation, machinery, and control panels requiring reliable performance and rugged design.
E-SWITCH RVW42D1923 Rocker Switch Specifications:
- Rating: 20A 125VAC, 15A 277VAC, 2HP 110/250VAC, UL and cURus approved
- Operating Temperature: 0°C to 55°C
- Electrical Life: 6,000 cycles
- Contact Resistance: 50 mO Max.
- Insulation Resistance: 800 MQ Min. at 500VDC
- Dielectric Strength: 1,500VAC for 1 minute
- Ingress Protection: IP54 standard
- Panel Cutout: 37.5mm x 21mm
- Terminal Options: Solder, Screw, Quick-connect
- Terminal Dimensions: 4.8mm, 6.3mm, or 6.3mm tabs depending on configuration
- Dimensions: Overall size approx. 35mm x 36mm x 19.5mm
- Body Material: Thermoplastic with matte or glossy finish options
- Color Options: Black, White, Almond, Grey, Red, Green
- Markings: Various circuit functions including ON-OFF, ON-ON, OFF-ON
- Suitable for control panels, industrial machinery, automation equipment
Buy the IndustrialSwitch RVW42D1923 – Reliable Contact Switch for Industrial Applications
Order the RVW series rocker switch today online for fast delivery and guaranteed quality. Designed for industrial control, it offers reliable switching with a 20A capacity at 125VAC, multiple terminal options including solder and screw, and an IP54 rated rugged plastic body. Its panel cutout size of 37.5mm x 21mm makes installation straightforward, and the switch's excellent electrical life ensures long-term durability. Perfect for automation, machinery, and control panels, this switch ensures safety, performance, and easy maintenance for industrial needs.
Get RVW series rocker switch today—built for industrial control, durability, and reliable performance in demanding environments.
Frequently Asked Questions
Where can I buy E-SWITCH RVW42D1923?
You can click on the BUY or RFQ button to purchase RVW42D1923 from an authorized E-SWITCH distributor.
How do I troubleshoot issues or seek technical support for part RVW42D1923?
You can download the RVW42D1923 datasheet or visit the E-SWITCH website for support.
Who is the manufacturer of RVW42D1923?
E-SWITCH
