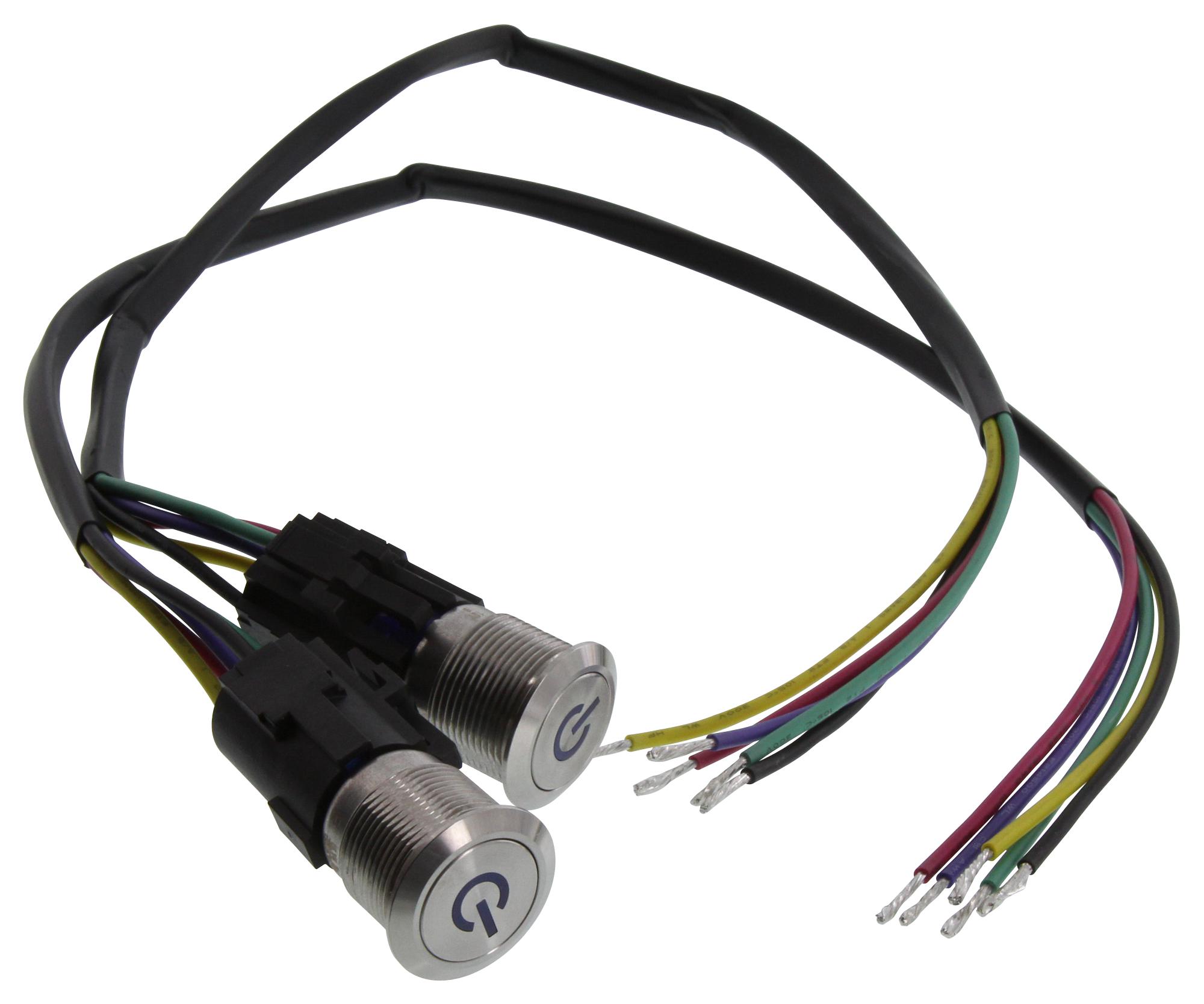

E-SWITCH ULV4FPBSS544 Anti-Vandal Switch
The ULV4 series anti-vandal switches are high-durability, IP67-rated devices suitable for industrial applications, control panels, and security systems. Featuring illuminated and non-illuminated options, these switches offer SPDT, DPDT, and rocker configurations with various wire lead lengths and mounting styles. They withstand harsh environments with operational temperature ranges from -20°C to 55°C, mechanical life up to 1,000,000 cycles, and electrical ratings up to 3A, 125/250VAC. Their robust design includes threaded bodies, molded backs, and optional custom graphics for enhanced functionality and aesthetics.
E-SWITCH ULV4FPBSS544 Anti-Vandal Switch Specifications:
- Electrical Rating: 3A, 125/250VAC
- Mechanical Life: 1,000,000 cycles (momentary); 500,000 cycles (latching)
- Electrical Life: 50,000 Cycles
- Contact Resistance: 50mΩ
- Insulation Resistance: 1000 MΩ @ 500VDC
- Dielectric Strength: 2,000VAC
- Operating/Storage Temperature: -20°C to 55°C
- Travel: 3.2mm
- Moisture Protection: IP67
- Contact Arrangement: SPDT or DPDT
- Actuation Force: SPDT: 2.5N; DPDT: 3.5N, Molded Back: 5.5N
- Panel Thickness: 1-10mm
- Hex Nut Torque: 5-14Nm
- Agency Approvals: cURus
Buy the Vandal Series Anti-Vandal Switches: ULV4FPBSS544
Purchase the ULV4FPBSS544 anti-vandal switch online today to ensure your equipment is protected with a rugged, IP67-rated switch capable of withstanding harsh environments. Featuring illuminated and non-illuminated options, these versatile switches support multiple configurations including SPDT, DPDT, rocker, and more. They offer a long mechanical lifespan of up to 1,000,000 cycles, electrical ratings up to 3A, and operate safely within -20°C to 55°C. With easy online ordering, enhance your control systems with reliable, industrial-grade switches designed for durability and performance.
Order your ULV4FPBSS544 anti-vandal switch today and give your projects the dependable performance and environmental resistance they deserve.
