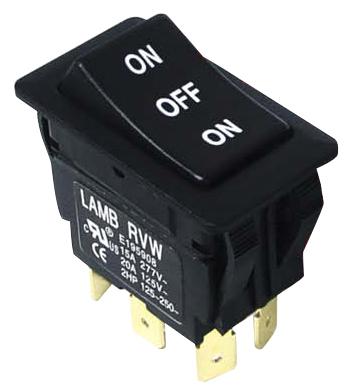

E-SWITCH RVW4GD1100 Dual-Pole Power Rocker Switch
The RVW4GD1100 is a durable dual-pole, double-throw power rocker switch designed for industrial and panel-mount applications. It features a full-size design with ON-ON operation, built with silver-plated brass terminals for reliable electrical connectivity. The switch is rated IP54, offering protection against dust and water splashes, and has a glossy finish, enhancing its aesthetic appeal. It withstands a temperature range of -20°C to 55°C and has a robust lifespan of 6,000 cycles. Ideal for controlling power in demanding environments, it combines durability, reliability, and ease of installation.
E-SWITCH RVW4GD1100 Dual-Pole Power Rocker Switch Specifications:
- Pole: Dual-pole (DPST)
- Operation: ON-ON, non-illuminated
- Rated Voltage: 125VAC at 20A, 277VAC at 15A
- Horsepower: 2HP at 125-250VAC
- Electrical Lifespan: 6,000 cycles
- Operating Temperature Range: -20°C to 55°C
- Contact Resistance: 50mΩ Max
- Insulation Resistance: 800MΩ Min at 500VDC
- Dielectric Strength: 1,500VAC for 1 minute
- Ingress Protection: IP54
- Housing Material: Polyamide 6/6, UL94 V-2
- Actuator Material: Polyamide 6/6, UL94 V-2
- Terminal Material: Silver-plated brass
- Maximum Dimensions: Body length 36.7mm, width 20.6mm
Buy the Buy Durable Industrial Switch Part Number RVW4GD1100 Online
Purchase the RVW4GD1100 dual-pole, double-throw power rocker switch online today and enjoy fast delivery. Its IP54 dust and water resistance make it ideal for industrial use, while the silver-plated brass terminals ensure excellent conductivity. With a lifespan of 6,000 cycles and operating from -20°C to 55°C, this switch offers durability and reliability in challenging conditions. Perfect for controlling power in machinery, panels, or control systems, it delivers consistent performance in demanding environments.
Buy RVW4GD1100 industrial panel switch now and experience unmatched reliability and protection with IP54-rated performance for demanding environments.
Frequently Asked Questions
Where can I buy E-SWITCH RVW4GD1100?
You can click on the BUY or RFQ button to purchase RVW4GD1100 from an authorized E-SWITCH distributor.
How do I troubleshoot issues or seek technical support for part RVW4GD1100?
You can download the RVW4GD1100 datasheet or visit the E-SWITCH website for support.
Who is the manufacturer of RVW4GD1100?
E-SWITCH
