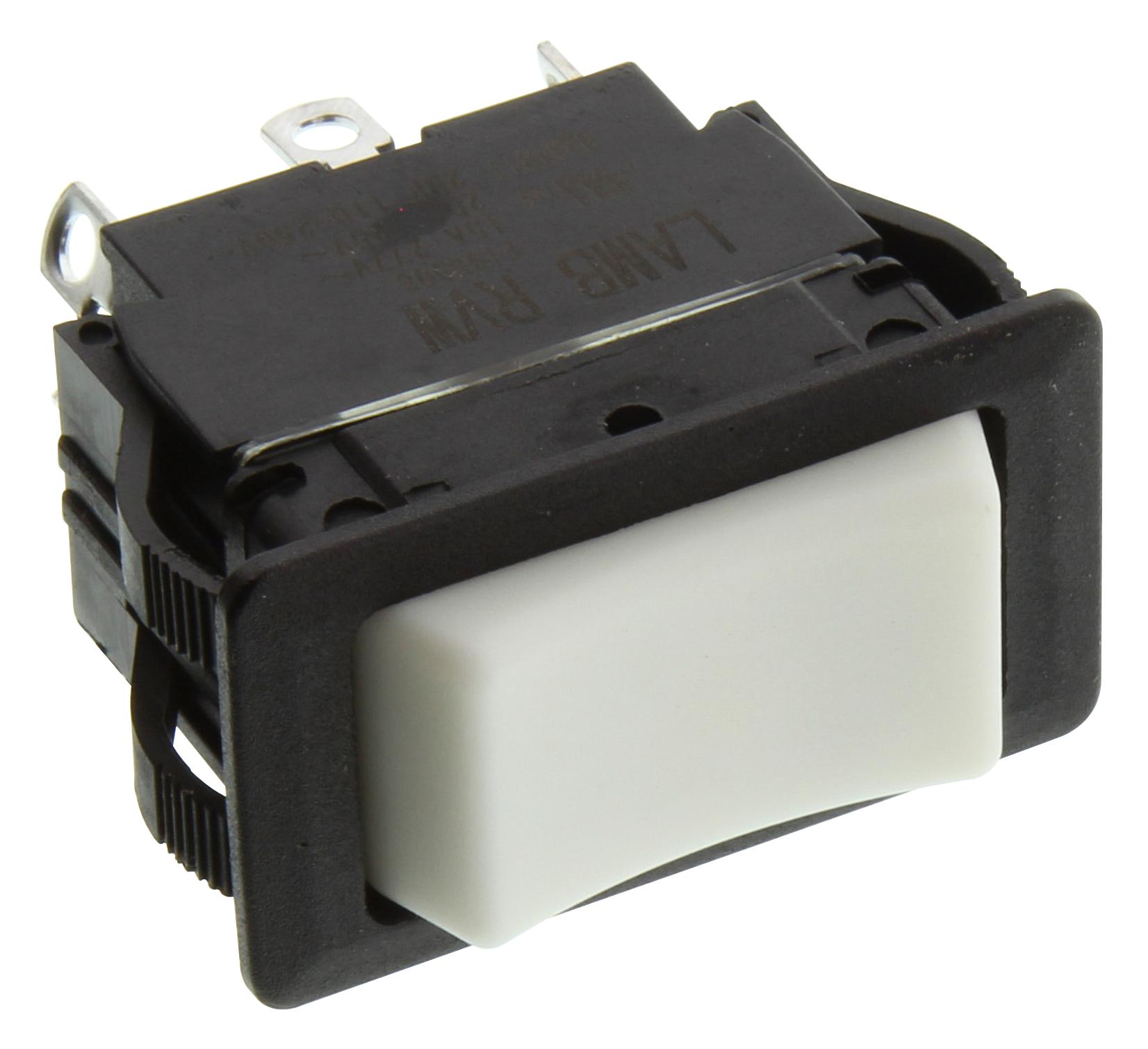

E-SWITCH RVW56D1200 Industrial Rocker Switch
The RVW series rocker switch is a durable, IP54-rated switch suitable for industrial and machinery applications. Featuring up to 20A, 125VAC rating, it offers various circuit functions, including single and double pole options. The switch is designed with a 37.5mm x 21mm panel cutout, with terminal options such as solder, screw, and 4.8mm tabs. Its operating temperature ranges from 0°C to 55°C, with a mechanical life of 6,000 cycles, making it ideal for heavy-duty environments requiring reliable operation and easy integration into control panels.
E-SWITCH RVW56D1200 Industrial Rocker Switch Specifications:
- Rating: 20A 125VAC [cURus UL508], 15A 277VAC, 2HP 110/250VAC, 6,000 cycles mechanical life
- Operating Temperature: 0°C to 55°C
- Electrical Resistance: 50 mO Max.
- Insulation Resistance: 800 MQ Min. at 500VDC
- Dielectric Strength: 1,500VAC for 1 minute
- Ingress Protection: IP54 standard
- Panel Cutout: 37.5mm x 21mm
- Terminal Options: Solder, screw, 4.8mm tabs
- Circuit Functions: SPST, SPDT, DPST, DPDT, on-off, on-on, off-on configurations
- Button Markings: None, black, white, almond, grey, red, green
- Agency Approvals: UL, cUL
- Features include multiple marking options, high current capacity, and durability for industrial applications
Buy the Brand Name RVW56D1200 – Reliable Industrial Rocker Switch for Control Panels
Enhance your control panel with the durable and high-performing industrial rocker switch. The RVW series switch supports up to 20A, 125VAC, ensuring reliable operation in demanding environments. Its IP54-rated enclosure provides protection against dust and water ingress. Available with multiple terminal and circuit options, this switch is easy to install and suitable for automation, machinery, and control applications. Purchase online today for fast delivery, quality assurance, and seamless integration into your projects, ensuring long-term performance and safety.
Get Brand Name RVW56D1200 today—built for precision and long-lasting durability in industrial control and automation systems.
Frequently Asked Questions
Where can I buy E-SWITCH RVW56D1200?
You can click on the BUY or RFQ button to purchase RVW56D1200 from an authorized E-SWITCH distributor.
How do I troubleshoot issues or seek technical support for part RVW56D1200?
You can download the RVW56D1200 datasheet or visit the E-SWITCH website for support.
Who is the manufacturer of RVW56D1200?
E-SWITCH
