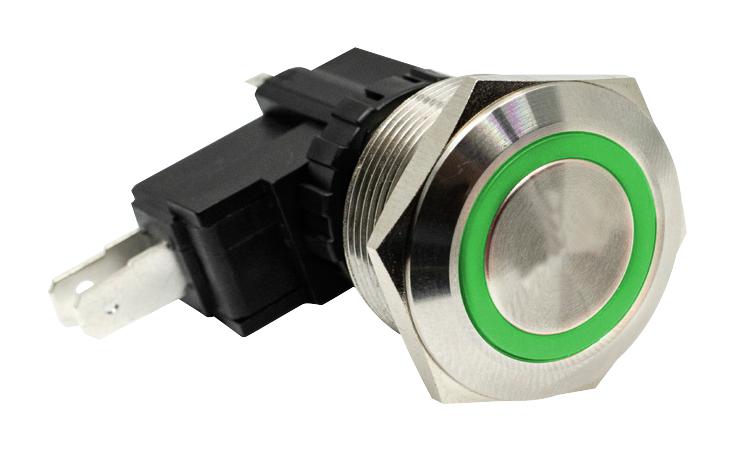

E-SWITCH SAV8F1BSS331 Anti-Vandal Switch
The SAV8 Series Anti-Vandal Switch is a durable, high-current switch designed for demanding applications. It features a 25mm panel cutout, multiple illumination options with voltages from 3V to 220V, and both momentary and latching functions. Constructed with stainless steel or black anodized aluminum, it offers IP67 moisture protection at the front panel, withstands temperatures from -25°C to 85°C, and has an electrical rating of 15A at 125/250VAC with a lifespan of 10,000 cycles. The switch's robust design makes it suitable for industrial, security, and automation applications.
E-SWITCH SAV8F1BSS331 Anti-Vandal Switch Specifications:
- Electrical Rating: 15A, 125/250VAC
- Electrical Life: 10,000 Cycles
- Contact Resistance: 100mΩ max
- Insulation Resistance: 100 MΩ @ 500VDC
- Dielectric Strength: 1,500VAC for 60 seconds
- Operating/Storage Temperature: -25°C to 85°C
- Travel: 3.2mm
- Moisture Protection: IP67 at front panel
- Actuation Force: 3.5N
- Panel Thickness: 1-10mm
- Hex Nut Torque: 1-3Nm
- Diameter: 25mm
- Illumination Voltage: 3V-220V options
- Finish options: Stainless Steel or Black Anodized
- Actuator style: Flat, with or without illumination
Buy the Buy Industrial Anti-Vandal Switch Part Number SAV8F1BSS331 Online
Enhance your critical systems with the robust SAV8 Series Anti-Vandal Switch, offering IP67 protection, multiple illumination options, and a high 15A current rating. Designed for demanding environments, it features a 25mm panel cutout, stainless steel or anodized finishes, and a temperature operating range of -25°C to 85°C. Its durable construction ensures long-term reliability in industrial, security, and automation projects. Purchase online today for fast delivery and dependable performance in your electronic control solutions.
Order your industrial SAV8F1BSS331 Anti-Vandal Switch today and equip your projects with dependable, high-current, corrosion-resistant switches.
Frequently Asked Questions
Where can I buy E-SWITCH SAV8F1BSS331?
You can click on the BUY or RFQ button to purchase SAV8F1BSS331 from an authorized E-SWITCH distributor.
How do I troubleshoot issues or seek technical support for part SAV8F1BSS331?
You can download the SAV8F1BSS331 datasheet or visit the E-SWITCH website for support.
Who is the manufacturer of SAV8F1BSS331?
E-SWITCH
