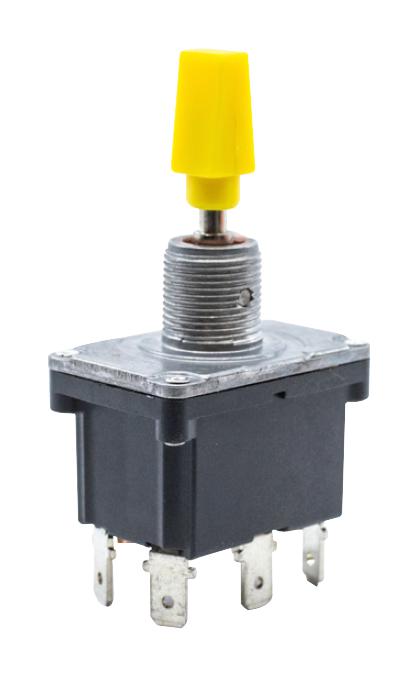

E-SWITCH ST4SP8AT2C2 Industrial Toggle Switch
The ST4 series toggle switch offers reliable operation with multiple circuit options, including SP and DP configurations, rated at 16A 125/250VAC or 20A 6-30VDC. It features IP68 moisture protection, suitable for rugged industrial environments, with a panel thickness capacity of 1-8mm. The switch benefits from a high electrical life of 10,000 cycles, with contact resistance below 50mΩ, insulation resistance above 50MΩ, and dielectric strength of 1500V RMS. Its versatile actuator options include metal and plastic bats, making it ideal for demanding control applications.
E-SWITCH ST4SP8AT2C2 Industrial Toggle Switch Specifications:
- Contact Rating: 16A 125/250VAC, 20A 6-30VDC
- Electrical Life: 10,000 Cycles
- Contact Resistance: 50mΩ Max.
- Insulation Resistance: 50MΩ Min.
- Dielectric Strength: 1500V RMS
- Operating Temperature: -10°C to 55°C
- Storage Temperature: -10°C to 65°C
- Moisture Protection: IP68
- Panel Thickness: 1-8mm
- Function: SP or DP
- Number of Poles: Single or Double
- Actuator Options: Metal and plastic bats, snap action, tactile
- Termination: Solder Lug, Screws, Quick Connects
- Certifications: cURus
- Dimensions: Switch height varies with actuator, typical length approximately 17mm to 22mm
Buy the Generic Toggle Switch – Reliable Industrial Toggle Switch for Industrial Applications
Supply your control panel with our industrial toggle switch, designed for reliability and ruggedness. With ratings up to 20A and IP68 protection, it withstands harsh conditions. Multiple circuit configurations, high cycle life, and versatile actuator options ensure precise control and longevity. Ideal for factory automation, machinery, and safety systems, this switch provides seamless operation and easy installation with various termination methods like solder lugs, screw terminals, or quick connects. Purchase online now for fast delivery and guaranteed quality.
Get Generic toggle switch today—built for precision, durability, and versatile control in demanding industrial environments.
