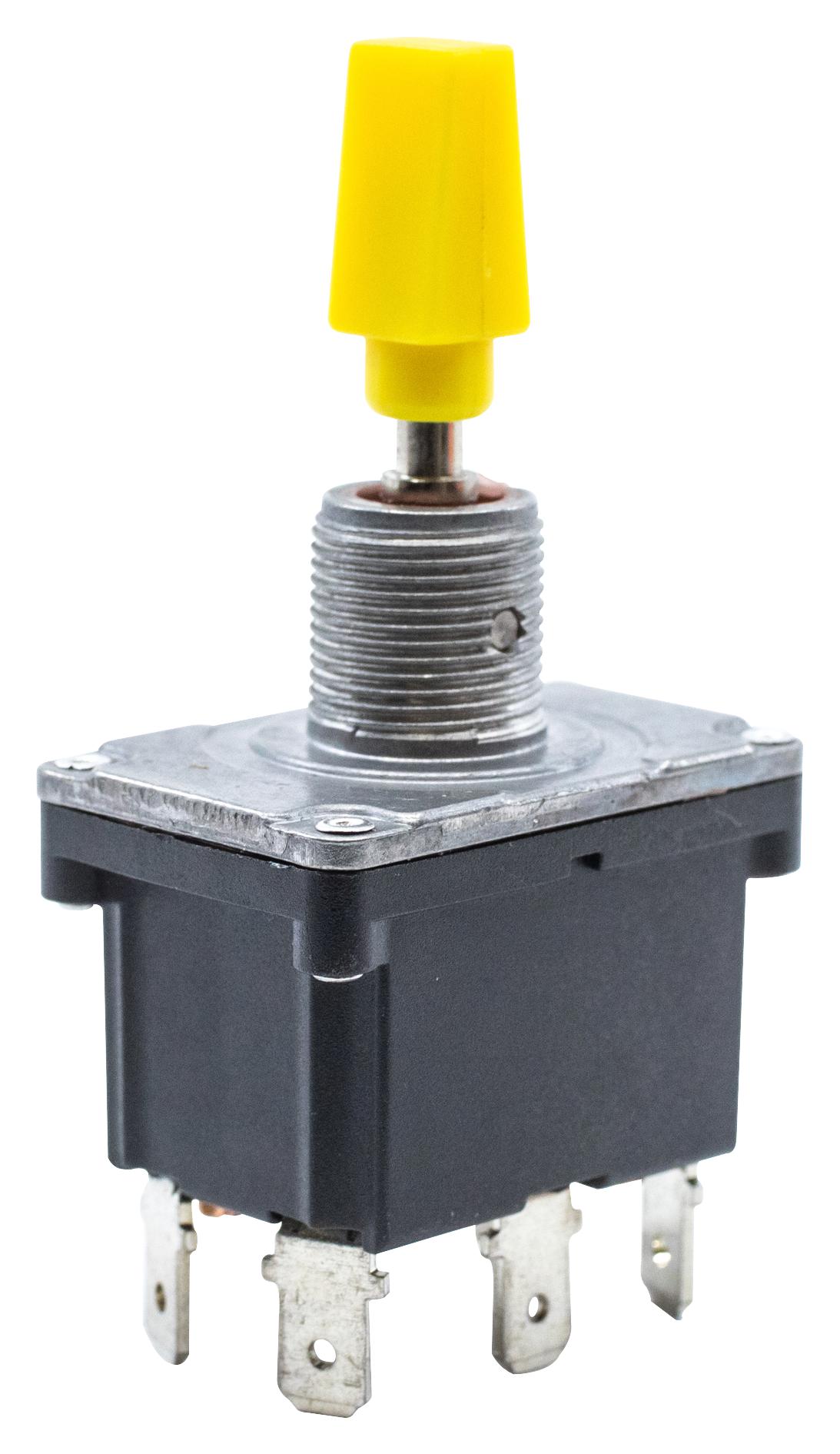

E-SWITCH ST5DP104T2C1 Industrial Toggle Switch
The switch is a versatile toggle switch designed for industrial and control applications, featuring multiple circuit options, actuator styles, termination types, and robust electrical ratings. It supports single and double pole configurations with 2 or 3-position functionality, suitable for various operational environments from -10°C to 125°C. Its durable design includes anti-vandal options, moisture protection, and multiple actuator choices, making it ideal for demanding industrial automation, machinery, and control panel setups requiring reliable switching performance.
E-SWITCH ST5DP104T2C1 Industrial Toggle Switch Specifications:
- Contact Rating: 16(8)A 125/250VAC, 20(8)A 125/250VAC, 20A 6-30VDC
- Electrical Life: 10,000 Cycles
- Contact Resistance: 50mΩ Max. initial
- Insulation Resistance: 50MΩ Min.
- Dielectric Strength: 1500V RMS
- Operating Temperature: -10°C to 125°C
- Storage Temperature: -10°C to 125°C
- Circuit Function: SP or DP, 2 or 3 Position
- Agency Approvals: cURus
- Moisture Protection: IP40
- Panel Thickness: 1-8mm
- Terminals: Quick Connect, Solder Lug, Screw Terminal options
- Actuator styles: Metal Bat, Plastic Bat
- Pole configurations: Single and Double Poles
- Function options include OFF-ON, ON-ON, OFF-ON-OFF, and ON-OFF-ON
- Mechanical Operation: Momentary and Maintained switches
- Dimensions: Key actuator sizes 17mm and 22mm, mounting hole diameter 0.031 in
Buy the Buy Industrial Switches Part Number ST5DP104T2C1 Online
Enhance your machinery or control panel with this high-quality toggle switch featuring multiple circuit options, actuator styles, and robust ratings. Designed for reliability under demanding conditions, it offers versatility with single and double pole configurations, various mounting options, and superior electrical performance. Perfect for automation, industrial equipment, or control panels that need durable switching solutions. Order the ST5DP104T2C1 toggle switch online today and ensure your project benefits from reliable, long-lasting operation and superior performance.
Get ST5DP104T2C1 toggle switch today—built for precision and long-lasting durability in industrial control applications.
Frequently Asked Questions
Where can I buy E-SWITCH ST5DP104T2C1?
You can click on the BUY or RFQ button to purchase ST5DP104T2C1 from an authorized E-SWITCH distributor.
How do I troubleshoot issues or seek technical support for part ST5DP104T2C1?
You can download the ST5DP104T2C1 datasheet or visit the E-SWITCH website for support.
Who is the manufacturer of ST5DP104T2C1?
E-SWITCH
