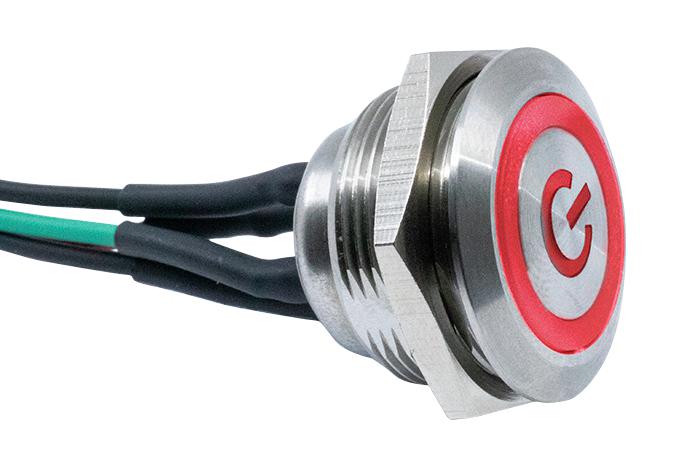

E-SWITCH SV7F23SS6G1 Anti-Vandal Switch
The SV7 Series Anti-Vandal Switch is a durable, IP67-rated SPST switch designed for harsh environments. Featuring a short body design with a 22mm diameter panel cutout, it offers multiple LED illumination options including ring and ring & power symbols. The switch has a 2A, 36VDC electrical rating, 200,000 cycle lifespan, and operates reliably from -20°C to 70°C. Its stainless steel finish ensures corrosion resistance. Suitable for industrial control panels, automation systems, and vandal-resistant applications, it provides secure mounting with a quick, simple installation process.
E-SWITCH SV7F23SS6G1 Anti-Vandal Switch Specifications:
- Electrical Rating: 2A, 36VDC
- Electrical Life: 200,000 Cycles
- Contact Resistance: 50mΩ Max. at 1A 12VDC
- Dielectric Strength: 2,000V RMS at sea level
- Operating/Storage Temperature: -20°C to 70°C
- Travel: 1.80mm
- Moisture Protection: IP67
- Contact Arrangement: SPST
- Actuation Force: 4.5 N
- Panel Thickness: 1-6mm
- Mounting Nut Torque: 1-3Nm
Buy the SV7 Series Anti-Vandal Switch: SV7F23SS6G1
Order the SV7 Series Anti-Vandal Switch online today to ensure reliable performance in demanding environments. This rugged switch features a 22mm panel cutout, stainless steel finish, and IP67 rated moisture protection. With a 2A, 36VDC electrical rating and a lifespan of 200,000 cycles, it is ideal for industrial control panels and vandal-prone applications. Its multiple LED illumination options, including ring and power symbols, enhance visibility. Fast online purchase guarantees quick installation for your control systems, with durable, corrosion-resistant construction that withstands harsh conditions.
Buy SV7 Series Anti-Vandal Switch now and experience unmatched reliability and performance in vandal-resistant environments.
Frequently Asked Questions
Where can I buy E-SWITCH SV7F23SS6G1?
You can click on the BUY or RFQ button to purchase SV7F23SS6G1 from an authorized E-SWITCH distributor.
How do I troubleshoot issues or seek technical support for part SV7F23SS6G1?
You can download the SV7F23SS6G1 datasheet or visit the E-SWITCH website for support.
Who is the manufacturer of SV7F23SS6G1?
E-SWITCH
