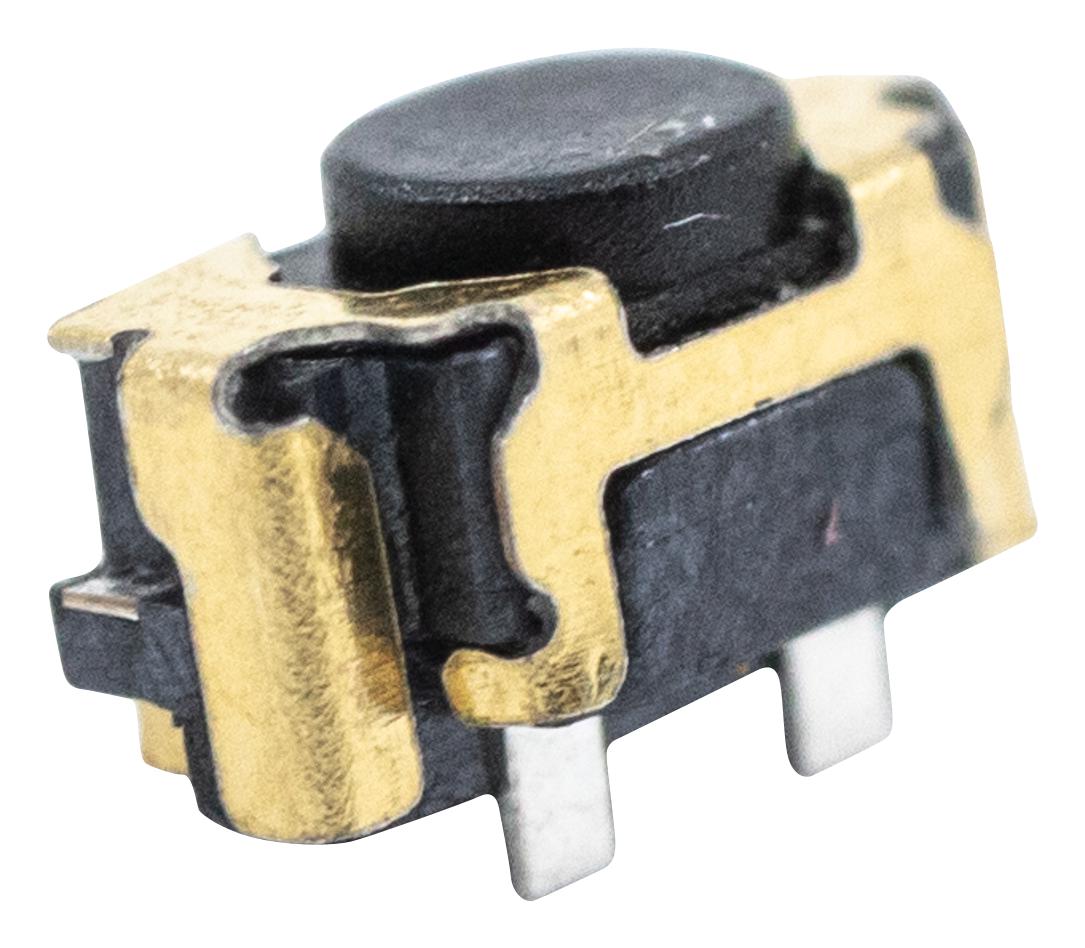

E-SWITCH TL4115AF220Q Tactile Switch
The TL4115 series tactile switch offers reliable SPST switching with a contact rating of 12VDC at 50mA and a contact resistance of 500mΩ max. It features a dielectic strength of 250VAC for 1 minute, insulation resistance of at least 100MQ at 100VDC, and an electrical life of 600,000 cycles. Designed for operation between -30°C to 85°C, it includes low travel, right-angle edge surface mount design, and tape and reel packaging, ideal for various electronic applications requiring durability and precision.
E-SWITCH TL4115AF220Q Tactile Switch Specifications:
- Contact Arrangement: SPST Off - (On)
- Contact Rating: 12VDC, 50mA
- Contact Resistance: 500mΩ Max. (Initial)
- Insulation Resistance: 100MQ Min. at 100VDC
- Dielectric Strength: 250VAC for 1 Minute
- Electrical Life: 600,000 Cycles
- Operating Temperature: -30°C to 85°C
- Surface Mount Design: Right angle edge
- Packaged: Tape and Reel
- Travel: Low, 0.15mm typical
- Actuation Force: 160 gf + 50 gf to 220 gf + 70 gf
- Maximum dimensions vary between models, typically around 2.05mm to 5.42mm in dimension.
Buy the E-Switch Series TL4115 Tact Switch: TL4115AF220Q
Purchase the E-Switch Series TL4115 tactile switch online today to enhance your electronic and industrial applications with reliable contact performance. Designed for durability with 600,000 cycle life, a contact resistance of 500mΩ, and an operating temperature range of -30°C to 85°C, this surface mount switch features low travel for precise actuation. Ideal for manufacturing, control panels, and automation systems, it offers quick delivery and quality assurance for all your electronic component needs.
Order your E-Switch Series TL4115 tactile switch today and ensure your electronic projects benefit from dependable, durable switching components.
