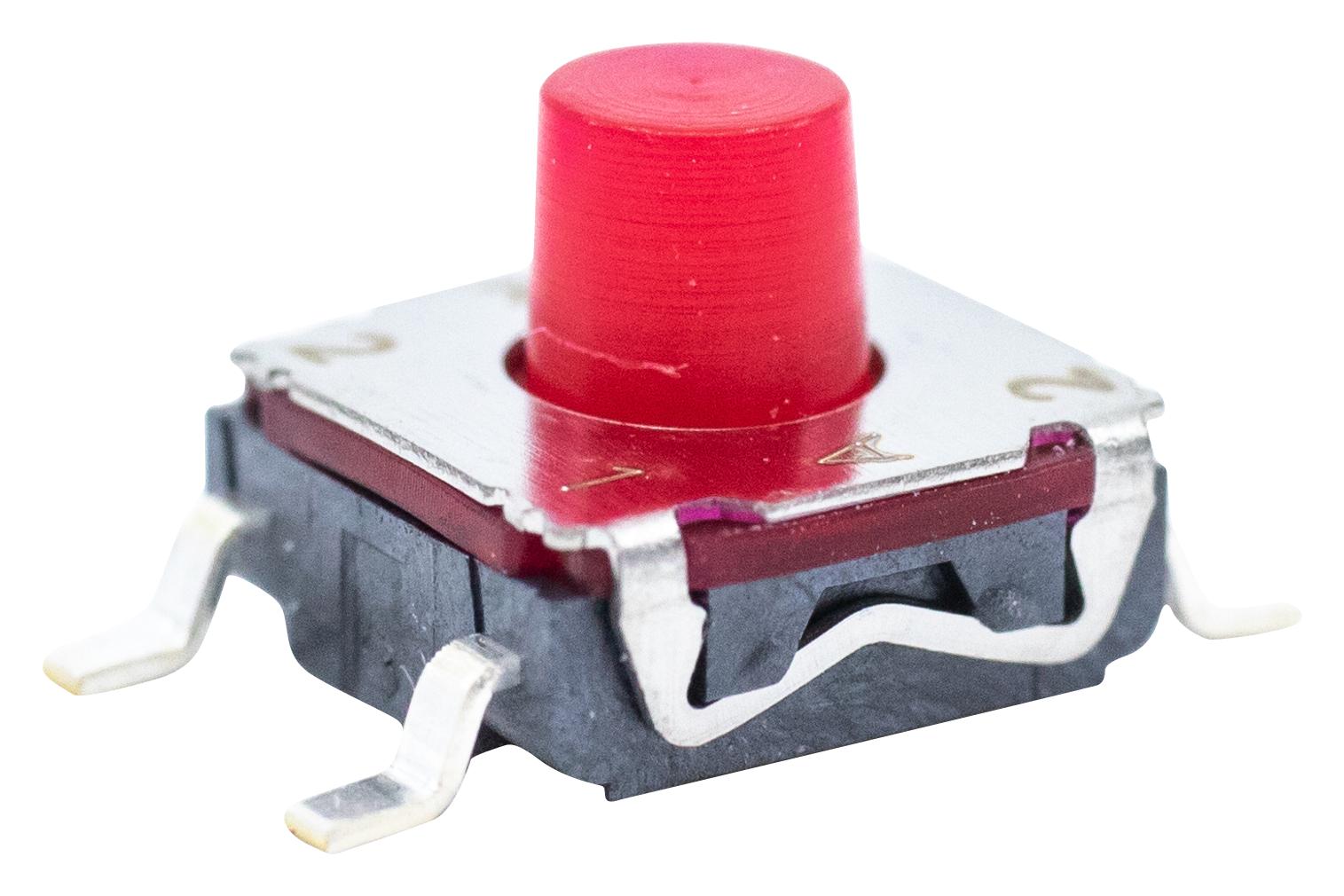

E-SWITCH TL6150BF200QG Tactile Switch
The TL6150 series tactile switches are reliable, high-quality electronic components ideal for industrial and electronic applications. Featuring a compact gull wing actuator design, these switches support up to 5 million cycle life, with a contact resistance of 100mΩ max. and an insulation resistance of 10MΩ min. at 100VDC. Operating between -40°C and 85°C, they offer IP67 dust and moisture protection, with various force options up to 350gF and travel of 0.3-0.5mm. Suitable for robust, high-cycle applications, these switches are available in different configurations for diverse design needs.
E-SWITCH TL6150BF200QG Tactile Switch Specifications:
- Contact Resistance: 100mΩ Max. (Initial)
- Insulation Resistance: 10MΩ Min. at 100VDC
- Dielectric Strength: 250VAC for 1 Minute
- Operating Temperature: -40°C to 85°C
- Cycle Life: Up to 5,000,000 cycles
- Operating Force: 160gF, 200gF, 350gF options
- Travel: 0.3mm to 0.5mm
- Ingress Protection: IP67
- Function: SPST, Off-(On)
- Mechanical Durability: 5 million cycles
- Packaging: Tape and Reel
Buy the Industrial Switches TL6150 – Reliable Tactile Switch for Industrial Applications
Enhance your electronic designs with the TL6150 tactile switches, offering high durability, up to 5 million cycles, and IP67 dust and moisture resistance. These reliable switches feature a compact gull wing actuator, multiple force options, and broad temperature operation from -40°C to 85°C. Perfect for industrial applications requiring robust performance and longevity, they are available in various configurations to suit diverse design requirements. Purchase online now to ensure your projects benefit from dependable, high-quality switching solutions today!
Buy TL6150 series tactile switches now and experience unmatched durability, high cycle life, and IP67 protection for your industrial electronic needs.
Frequently Asked Questions
Where can I buy E-SWITCH TL6150BF200QG?
You can click on the BUY or RFQ button to purchase TL6150BF200QG from an authorized E-SWITCH distributor.
How do I troubleshoot issues or seek technical support for part TL6150BF200QG?
You can download the TL6150BF200QG datasheet or visit the E-SWITCH website for support.
Who is the manufacturer of TL6150BF200QG?
E-SWITCH
