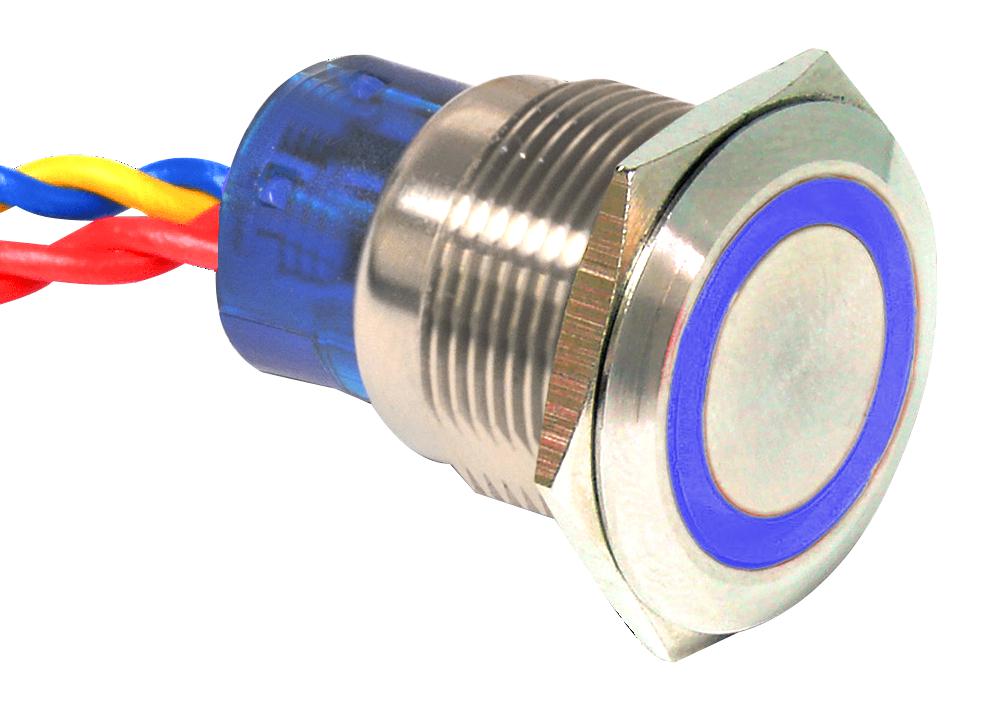

E-SWITCH ULV7FWHSS341 Industrial Vandal-Proof Switch
The ULV7 Series Anti-Vandal Switch offers robust and reliable switching solutions suitable for demanding environments. Featuring a 22mm diameter panel cutout, these switches support SPDT or DPDT contact arrangements with IP67 moisture protection. They include illumination options, customizable graphics, and various actuator styles, making them ideal for industrial control panels, security systems, and machinery. Mechanical life reaches 1,000,000 cycles for momentary actions, with an electrical rating of up to 3A at 125/250VAC. Designed for durability, these switches are UL certified and feature easy wiring with soldered or wire leads.
E-SWITCH ULV7FWHSS341 Industrial Vandal-Proof Switch Specifications:
- Electrical Rating: 3A, 125/250VAC
- Mechanical Life: 1,000,000 cycles (momentary); 500,000 cycles (latching)
- Electrical Life: 50,000 Cycles
- Contact Resistance: 50mΩ
- Insulation Resistance: 1000 MΩ at 500VDC
- Dielectric Strength: 2,000VAC
- Operating/Storage Temperature: -20°C to 55°C
- Moisture Protection: IP67
- Contact Arrangement: SPDT or DPDT
- Actuation Force: Single Pole 2.5N; Double Pole 3.5N
- Panel Thickness: 1-10mm
- Hex Nut Torque: 5-14Nm
- Dimensions: Diameter 22mm, height varies with configuration
- Thread Size: M22 x 1.0
- Lighting Voltage Options: 3V, 6V, 12V, 24V, 110V, 220V
- Body Material: Stainless Steel, Anodized, or Steel
- Certifications: UL, cULus
Buy the Vandal-Resistant Switch Series ULV7: ULV7FWHSS341
Order the ULV7 Series Anti-Vandal Switch online today for durable, weatherproof control with IP67 protection, illuminated options, and various actuator styles. Perfect for industrial machinery, security systems, and control panels, these switches combine reliability with customizable graphics. Featuring high electrical and mechanical ratings, UL certification, and easy wiring, they ensure long-lasting performance in demanding environments. Purchase now to enjoy fast delivery and superior quality with the confidence that comes from industry-leading control components designed for professional applications.
Get ULV7 series vandal-proof switch today—built for durability, easy installation, and reliable performance in harsh environments.
Frequently Asked Questions
Where can I buy E-SWITCH ULV7FWHSS341?
You can click on the BUY or RFQ button to purchase ULV7FWHSS341 from an authorized E-SWITCH distributor.
How do I troubleshoot issues or seek technical support for part ULV7FWHSS341?
You can download the ULV7FWHSS341 datasheet or visit the E-SWITCH website for support.
Who is the manufacturer of ULV7FWHSS341?
E-SWITCH
