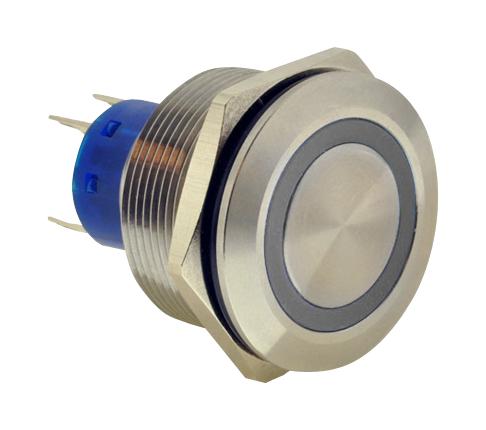

E-SWITCH ULV8F2BSS331 Anti-Vandal Switch
The ULV8F2BSS331 is a rugged anti-vandal switch designed for industrial and security applications. It offers a durable construction with IP67 moisture protection, mechanical life of 1,000,000 cycles for momentary action, and electrical life of 50,000 cycles. This pushbutton switch features contact resistance of 50mΩ, operating temperature range of -20°C to 55°C, and a travel distance of 3.2 mm. It is available in various actuator styles with LED illumination options, suitable for demanding environments requiring reliable, tamper-resistant switching solutions.
E-SWITCH ULV8F2BSS331 Anti-Vandal Switch Specifications:
- Electrical Rating: 3A, 125/250VAC
- Mechanical Life: 1,000,000 cycles (momentary), 500,000 cycles (latching)
- Electrical Life: 50,000 Cycles
- Contact Resistance: 50mΩ
- Insulation Resistance: 1000 MΩ @ 500VDC
- Dielectric Strength: 2,000VAC
- Operating Temperature: -20°C to 55°C
- Travel: 3.2mm
- Moisture Protection: IP67
- Contact Arrangement: SPDT or DPDT
- Actuation Force: Single Pole: 2.5N; Double Pole: 3.5N
- Panel Thickness: 1-10mm
- Hex Nut Torque: 5-14Nm
- Agency Approvals: cURus
Buy the Buy IndustryCompat Anti-Vandal Switch Part Number ULV8F2BSS331 Online
Discover the IndustryCompat ULV8F2BSS331 anti-vandal switch, engineered for demanding environments. With IP67 moisture protection, a mechanical lifespan of 1 million cycles, and LED illumination options, it ensures durability and visibility. This switch features a compact 3.2mm travel, robust contact resistance of 50mΩ, and UL certification, making it ideal for industrial security, access control, and rugged automation systems. Purchase online today for reliable performance in demanding applications.
Buy IndustryCompat ULV8F2BSS331 anti-vandal switch now and experience unmatched reliability and performance in harsh environments.
Frequently Asked Questions
Where can I buy E-SWITCH ULV8F2BSS331?
You can click on the BUY or RFQ button to purchase ULV8F2BSS331 from an authorized E-SWITCH distributor.
How do I troubleshoot issues or seek technical support for part ULV8F2BSS331?
You can download the ULV8F2BSS331 datasheet or visit the E-SWITCH website for support.
Who is the manufacturer of ULV8F2BSS331?
E-SWITCH
