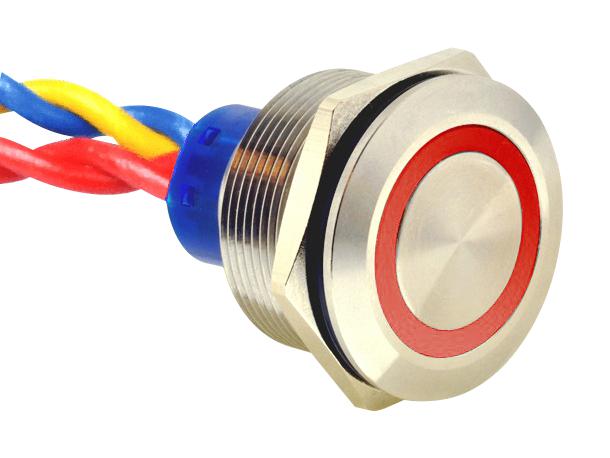

E-SWITCH ULV8FMBSS311 Anti-Vandal Switch
The ULV8 series anti-vandal switch is a durable, IP67-rated device designed for rugged applications. It features SPDT or DPDT contact arrangements, a 25mm diameter panel cutout, and operates over temperatures from -20°C to 55°C. The switch provides a mechanical life of 1 million cycles and an electrical life of 50,000 cycles, with a contact resistance of 50mΩ. Options include illuminated or non-illuminated models, soldered or detachable wire leads up to 500mm long, and it is UL, cURus certified for safety and reliability.
E-SWITCH ULV8FMBSS311 Anti-Vandal Switch Specifications:
- Electrical Rating: 3A, 125/250VAC
- Mechanical Life: 1,000,000 cycles (momentary); 500,000 cycles (latching)
- Electrical Life: 50,000 Cycles
- Contact Resistance: 50mΩ
- Insulation Resistance: 1000 MΩ @ 500VDC
- Dielectric Strength: 2,000VAC
- Operating/Storage Temperature: -20°C to 55°C
- Travel: 3.2mm
- Moisture Protection: IP67
- Contact Arrangement: SPDT or DPDT
- Actuation Force: Single Pole: 2.5N; Double Pole: 3.5N
- Panel Thickness: 1-10mm
- Hex Nut Torque: 5-14Nm
- Agency Approvals: cURus
Buy the Buy ULV8 Series Anti-Vandal Switch Part Number ULV8FMBSS311 Online
Purchase the ULV8 series anti-vandal switch online today to enjoy reliable, IP67-rated performance perfect for industrial and outdoor applications. With SPDT or DPDT contacts, a 25mm panel cutout, and options for illuminated or non-illuminated versions, this switch ensures durability and safety compliance with UL and cURus certifications. The switch features long wire leads, molded or detachable socket options, and a robust design capable of withstanding harsh conditions. Make your purchase now and secure long-lasting operation for your project.
Order your ULV8 Series ULV8FMBSS311 anti-vandal switch today and ensure your projects have dependable, rugged performance in harsh environments.
Frequently Asked Questions
Where can I buy E-SWITCH ULV8FMBSS311?
You can click on the BUY or RFQ button to purchase ULV8FMBSS311 from an authorized E-SWITCH distributor.
How do I troubleshoot issues or seek technical support for part ULV8FMBSS311?
You can download the ULV8FMBSS311 datasheet or visit the E-SWITCH website for support.
Who is the manufacturer of ULV8FMBSS311?
E-SWITCH
