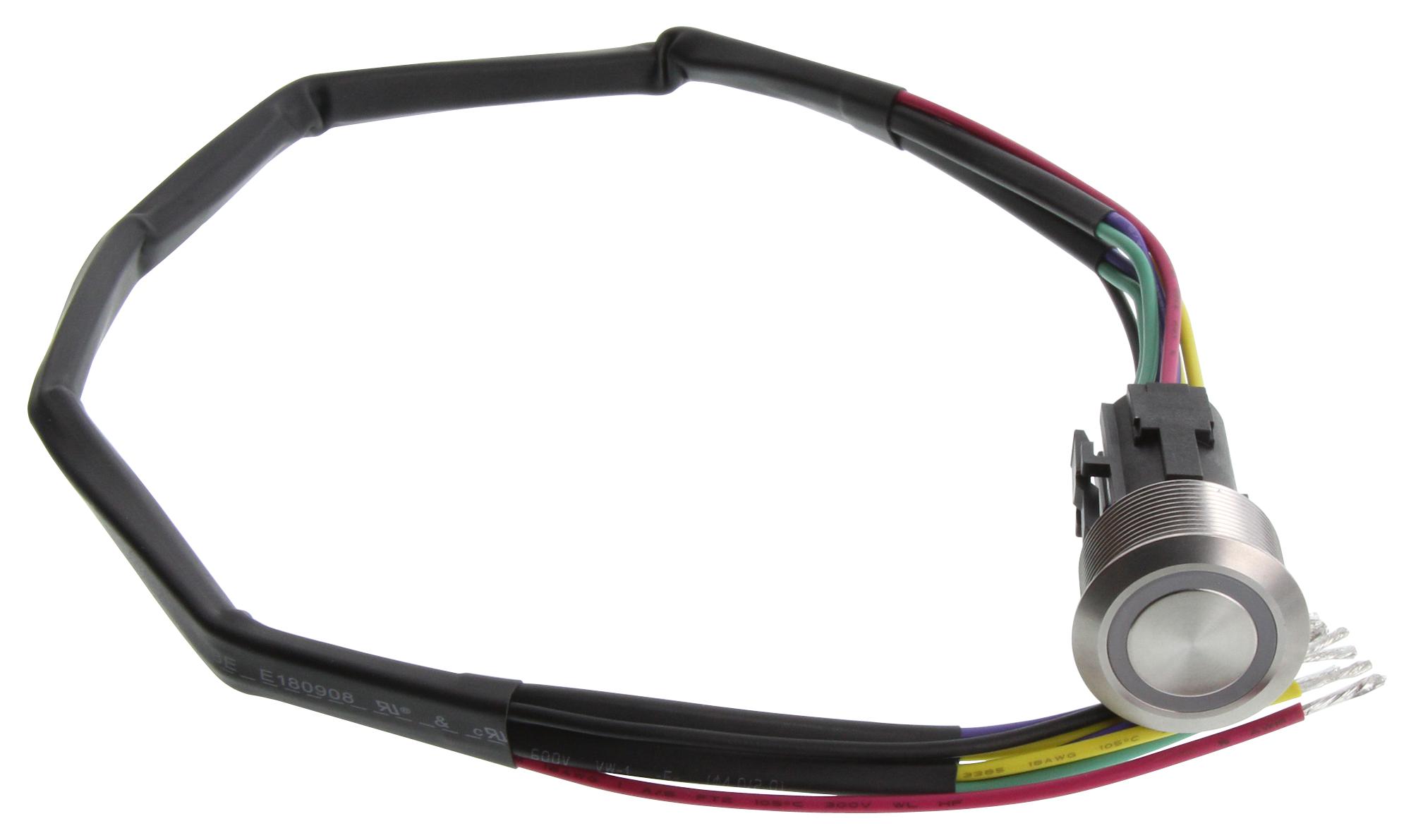

E-SWITCH ULV8FPGSS341 Vandal Switch
The ULV8 Series Anti-Vandal Switches are highly durable, IP67 rated switches suitable for industrial environments. They feature mechanical and electrical longevity with 1,000,000 and 50,000 cycles respectively, and a robust 25mm diameter panel cutout. These switches offer multiple configurations including SPDT, DPDT, and multiple actuation and illumination options. They are designed for reliable operation in harsh conditions, with mounting options, wire lead lengths up to 500mm, and threaded body M25 x 1.0. Certification includes UL and cURus approvals. Ideal for automation and security applications requiring vandal-resistant switches.
E-SWITCH ULV8FPGSS341 Vandal Switch Specifications:
- Electrical Rating: 3A, 125/250VAC
- Mechanical Life: 1,000,000 cycles (momentary); 500,000 cycles (latching)
- Electrical Life: 50,000 Cycles
- Panel Cutout: 25mm diameter
- Ingress Protection: IP67 rating
- Contact Resistance: 50mΩ
- Insulation Resistance: 1000 MΩ @ 500VDC
- Dielectric Strength: 2,000VAC
- Operating/Storage Temperature: -20°C to 55°C
- Actuation Force: SPDT: 2.5N; DPDT: 3.5N
- Wiring: Wire leads up to 500mm, wire gauge 18-24 AWG
- Thread Size: M25 x 1.0 mm
- Material: Steel and anodized components
- Certifications: UL Listed, cURus
Buy the ULV8 Series – Reliable Vandal Switches for Industrial Applications
Purchase your ULV8 Series vandal switch online today and guarantee durable, IP67-rated performance for industrial automation, security systems, and harsh environment control. With multiple configuration options including SPDT, DPDT, and various actuation styles, this switch ensures long-lasting operation and reliable electrical performance. Wire leads of 300mm or 500mm are available to suit your installation needs. Certified by UL and cURus, this vandal-proof switch offers utmost reliability, easy mounting with a 25mm panel cutout, and robust construction for demanding industrial uses.
Order your ULV8 Series vandal-resistant switch today and ensure reliable performance in demanding environments with versatile configuration options.
Frequently Asked Questions
Where can I buy E-SWITCH ULV8FPGSS341?
You can click on the BUY or RFQ button to purchase ULV8FPGSS341 from an authorized E-SWITCH distributor.
How do I troubleshoot issues or seek technical support for part ULV8FPGSS341?
You can download the ULV8FPGSS341 datasheet or visit the E-SWITCH website for support.
Who is the manufacturer of ULV8FPGSS341?
E-SWITCH
