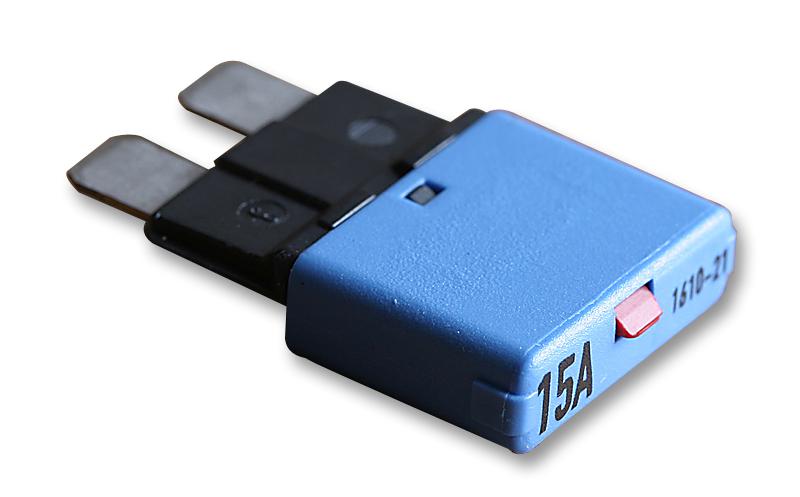

E-T-A 16102115A Automotive Thermal Circuit Breaker
The E-T-A 1610-21-15A is a miniaturized, single-pole press-to-reset thermal circuit breaker specifically engineered for automotive fuse block installation. This circuit breaker extends the benefits of circuit breaker performance and convenience to applications where cost is a critical factor. It features a manual release option for added flexibility. Typical applications include extra low voltage wiring systems in vehicles and marine craft. The breaker provides reliable protection and is designed for ease of use and integration into automotive electrical systems.
E-T-A 16102115A Automotive Thermal Circuit Breaker Specifications:
- Voltage rating: 12 V DC (H1), 24 V DC (H2)
- Current ratings: 6, 8, 10, 15, 20, 25 A
- Service short-circuit breaking capacity: ≤50 A (1610-22/H1), ≤300 operations; ≤50 A (1610-21/H2), ≤3 break operations at 150 A
- Ultimate short-circuit breaking capacity: ≥3 break operations at 200 A, or ≥1 break operation at 2,000 A (1610-22/H1); ≥3 break operations at 150 A, or ≥1 break operation at 2,000 A (1610-21/H2)
- Ambient temperature: -30...+60°C
- Degree of protection: IP 30 (operating area), IP 00 (terminal area)
- Vibration: 5 g (57-500 Hz), ±0.38 mm (10-57 Hz)
- Shock: 25 g
- Corrosion: 96 hours at 5 % salt mist
- Humidity: 240 hours at 95 % RH
- Mass: approx. 5 g
- Actuator colour (manual release): mossy-green (6A), honey (8A), red (10A), blue (15A), yellow/pearl (20A), pearl (25A)
