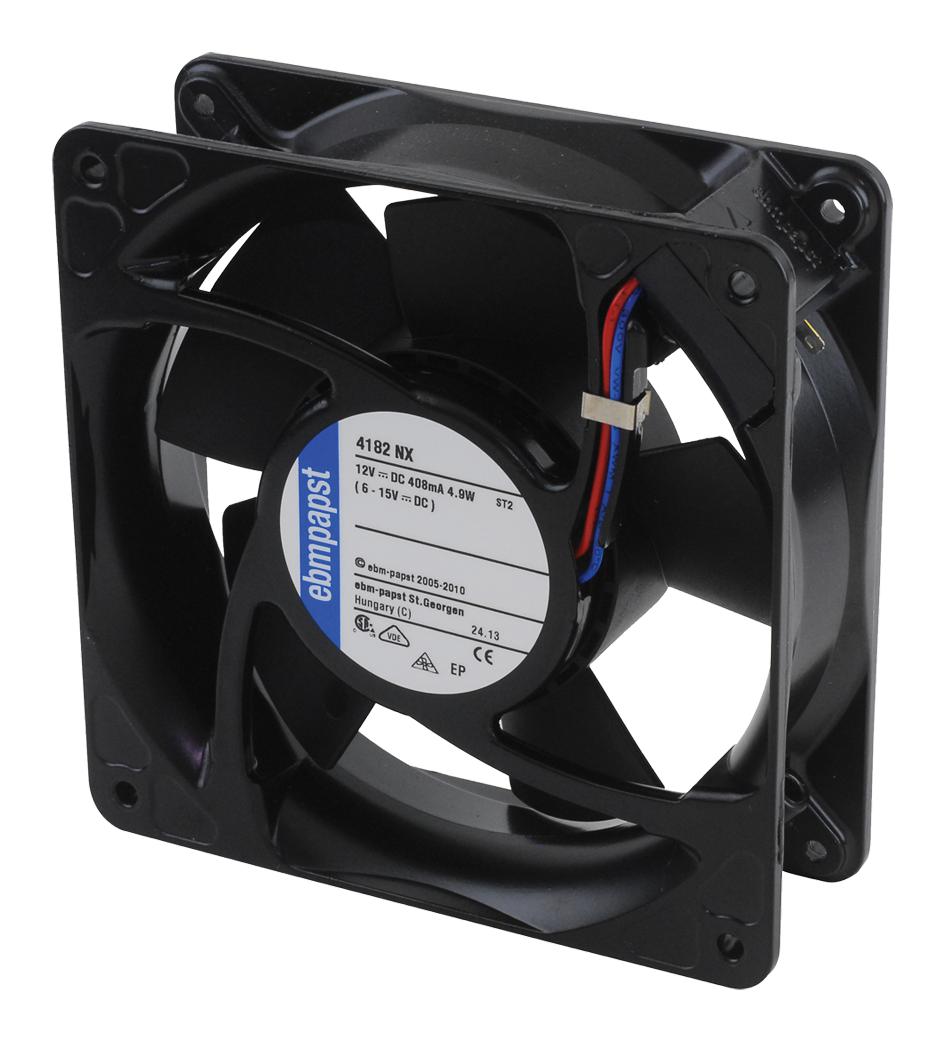

ebm-papst 4182NX DC Axial Fan
The ebm-papst 4182NX is a high-performance DC axial fan engineered for demanding industrial environments. Its die-cast aluminum housing and fiberglass-reinforced plastic impeller provide excellent durability and resistance to environmental factors. The fan offers a range of customizable options, including speed signal, Go/NoGo alarm, external/internal temperature sensors, PWM control, and moisture/salt spray protection, making it suitable for diverse applications requiring precise airflow control and reliable operation. It is ideal for cooling electronic equipment, machinery, and other industrial components.
ebm-papst 4182NX DC Axial Fan Specifications:
- Material: Housing: Die-cast aluminum, Impeller: GRP (PA)
- Air Flow: Up to 237 m[3]/h
- Direction of Air Flow: Intake over struts
- Direction of Rotation: Clockwise
- Connection: On flat connectors, 2.8 x 0.5 mm (wires available as an option)
- Highlights: Housing with grounding lug for screw M4 x 8 (Torx)
- Weight: 390 g
- Nominal Voltage: See table
- Air Flow (m3/h): See table
- Sound Pressure Level (dBA): See table
- Sound Power Level (dBA): See table
- Nominal Speed (rpm): See table
- Temperature Range: See table
- Service Life L10 (40 °C): ebm-papst standard
- Service Life L10 (Tmax): ebm-papst standard
- Life Expectancy L10IPC: See page 17
- Degree of Protection: IP 54 / IP 68
