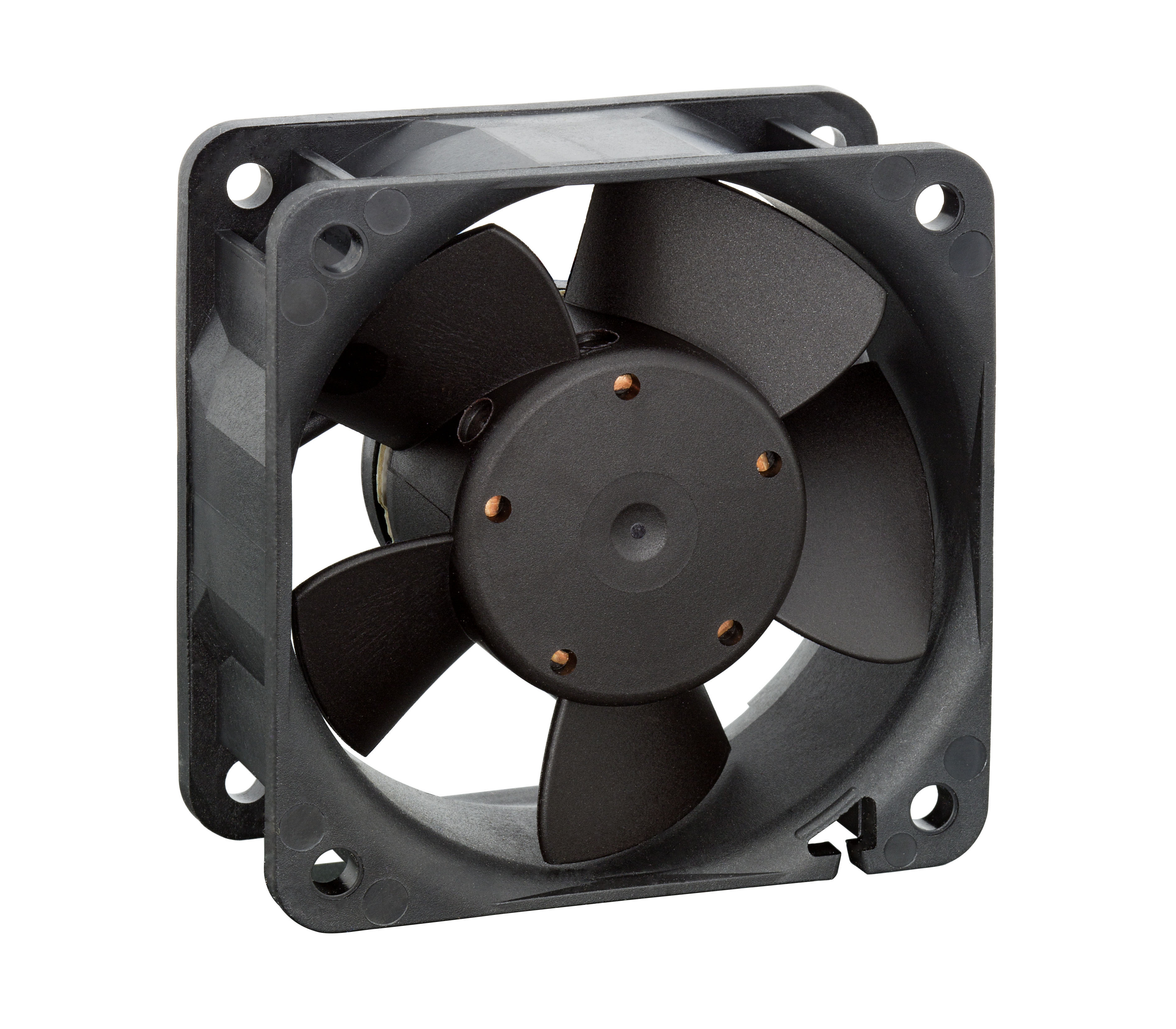

ebm-papst 614NML DC Axial Compact Fan
The ebm-papst 614NML is a compact DC axial fan engineered for reliable and efficient cooling in a wide range of industrial applications. Featuring a 24VDC operating voltage and a rotational speed of 3000 RPM, this fan delivers an airflow of 25 m3/h while maintaining a sound pressure level of 19 dB(A). Constructed with glass-fiber reinforced PBT plastic for the housing and glass-fiber reinforced PA plastic for the impeller, the 614NML offers durability and resistance to environmental factors. It incorporates a ball bearing for extended service life, rated at 80,000 hours at 40°C. The fan also includes electronic locked-rotor and overload protection, along with approvals such as VDE, CSA, UL, and CE, ensuring safe and compliant operation. Custom design options are available, including speed signal, go/no-go alarm, moisture protection, and various IP protection ratings.
ebm-papst 614NML DC Axial Compact Fan Specifications:
- Type: 614 NML
- Nominal Voltage: 24 VDC
- Nominal Voltage Range: 18 .. 28 VDC
- Speed (rpm): 3000
- Power Consumption: 1.0 W
- Min. Ambient Temperature: -20 °C
- Max. Ambient Temperature: 70 °C
- Air Flow: 25 m3/h
- Sound Power Level: 3.9 B
- Sound Pressure Level: 19 dB(A)
- Housing Material: Glass-fiber reinforced PBT plastic
- Impeller Material: Glass-fiber reinforced PA plastic
- Dimensions: 60 x 60 x 25 mm
- Airflow Direction: Exhaust over struts
- Direction of Rotation: Clockwise, viewed toward rotor
- Storage: Ball bearing
- Service Life L10 at 40 °C: 80000 h
- Service Life L10 at Maximum: 40000 h
- Cable: Leads AWG 22, TR 64, stripped and tin-plated.
- Motor Protection: Protection against reverse polarity and blocked rotor.
- Locked-Rotor Protection: With electronic locked-rotor and overload protection
- Approval: VDE, CSA, UL, CE
Buy the 614NML ebm-papst DC Axial Compact Fan | myMectronic
Purchase the ebm-papst 614NML DC axial compact fan securely and reliably online.
Buy Now
Frequently Asked Questions
Where can I buy ebm-papst 614NML?
You can click on the BUY or RFQ button to purchase 614NML from an authorized ebm-papst distributor.
How do I troubleshoot issues or seek technical support for part 614NML?
You can download the 614NML datasheet or visit the ebm-papst website for support.
Who is the manufacturer of 614NML?
ebm-papst
