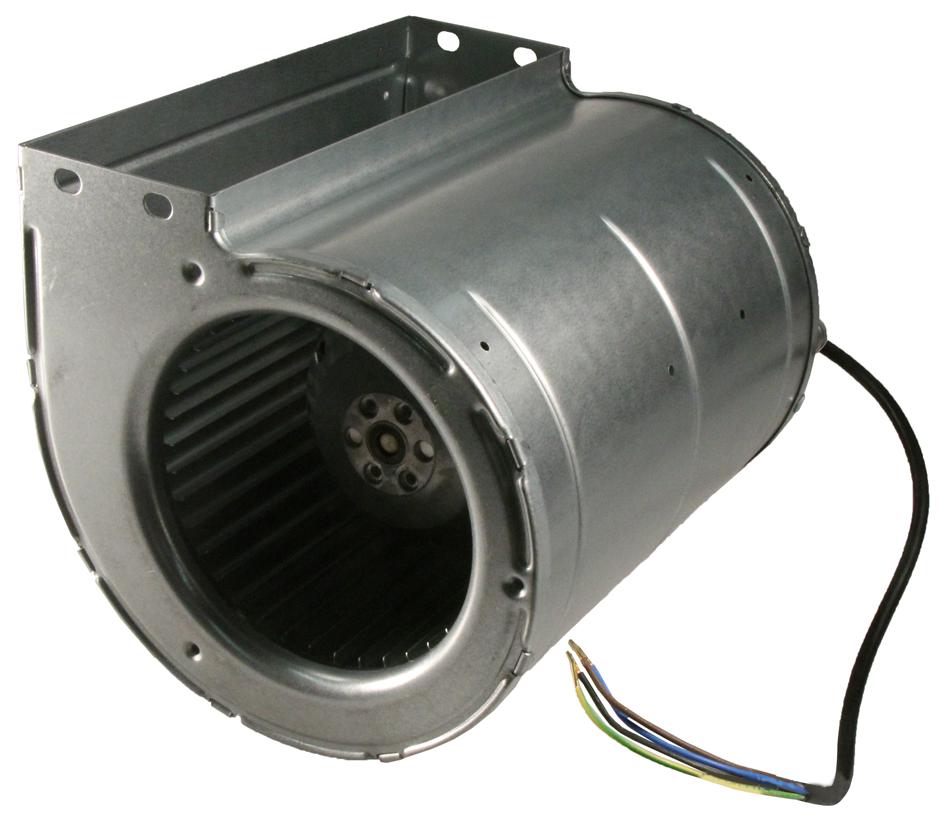

ebm-papst D2E133AM4765 Centrifugal Fan
This forward-curved, dual-intake AC centrifugal fan is designed for reliable ventilation and air movement in various industrial applications. It features a galvanized sheet steel housing and impeller, a lightweight 3.5 kg build, and a motor with a power consumption of 190-200 W. The fan operates at 1500-1800 rpm, with a maximum ambient temperature of +80°C, making it suitable for dry environments. Its protection class is HO, and it is equipped with a thermal overload protector for safety and durability in efficient airflow management.
ebm-papst D2E133AM4765 Centrifugal Fan Specifications:
- Weight: 3.5 kg
- Fan size: 133 mm
- Housing material: Galvanized sheet steel
- Impeller material: Galvanized sheet steel
- Motor specifications: M2E068-DF, 230 VAC, 50/60 Hz, 1500-1800 rpm, 190-200 W
- Protection class: HO
- Insulation class: Class 3
- Max. ambient temperature: +80°C
- Min. ambient temperature: -40°C
- Motor bearing: Ball bearing
- Protection type: IP 44
- Direction of rotation: Clockwise when viewed toward rotor
- Mounting: Motor mounted with brackets on one side
- Mode: S1 continuous operation
- Moisture/environmental protection: Enclosed in galvanized steel housing
Buy the ebmpapst Series D2E Centrifugal Fan: D2E133AM4765
Purchase the ebmpapst D2E133AM4765 centrifugal fan online today and experience reliable, efficient airflow with its galvanized steel housing and high-performance motor. Perfect for industrial applications, this fan offers a robust design, easy installation, and durable operation at 1500-1800 rpm, consuming only 190-200 W. Its protection class HO and temperature tolerance up to +80°C ensure safe, continuous operation in dry environments, making it an ideal choice for ventilation needs requiring consistent airflow and safety standards.
Get ebmpapst D2E133AM4765 today—built for precision airflow and long-lasting durability in industrial ventilation systems.
Frequently Asked Questions
Where can I buy ebm-papst D2E133AM4765?
You can click on the BUY or RFQ button to purchase D2E133AM4765 from an authorized ebm-papst distributor.
How do I troubleshoot issues or seek technical support for part D2E133AM4765?
You can download the D2E133AM4765 datasheet or visit the ebm-papst website for support.
Who is the manufacturer of D2E133AM4765?
ebm-papst
