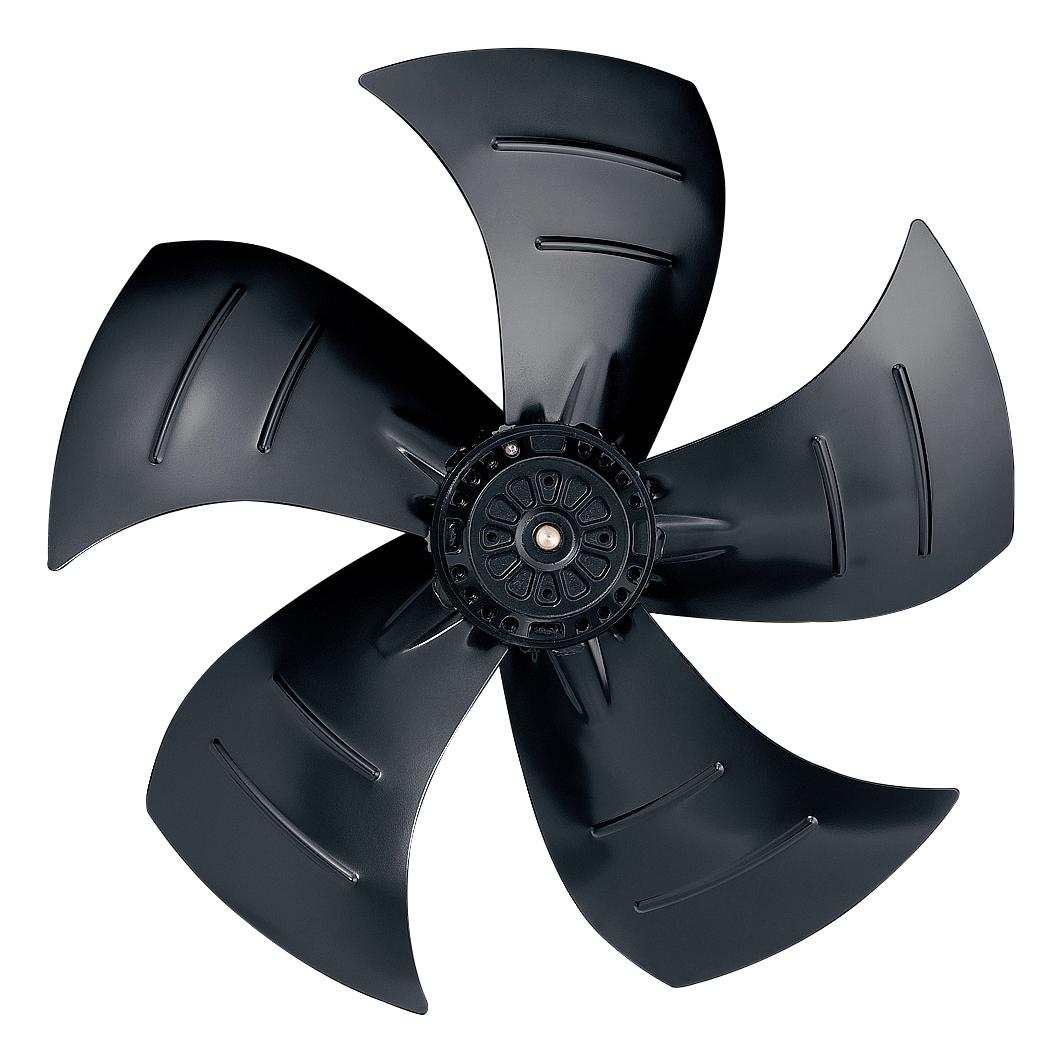

ebm-papst A4E450AP0101 Industrial Axial Fan
The A4E450-AP01-01 is a 230VAC axial fan with sickled blades (S series), black-coated sheet steel blades, and a five-bladed design. It features a durable ball bearing and operates with counter-clockwise rotation when viewed from the rotor with horizontal or bottom mounting. The fan is equipped with a thermal overload protected motor (TOP), wired internally, and rated IP44 for protection against dust and splashes. Suitable for use in environments with ambient temperatures from -40°C to 80°C, it adheres to humidity class F1-2 and provides reliable airflow in industrial applications.
ebm-papst A4E450AP0101 Industrial Axial Fan Specifications:
- Power Supply: 230VAC, 50/60Hz
- Motor Type: Sickle blades (S series), ball bearing
- Rotation: Counter-clockwise viewed from rotor
- Protection Class: IP44
- Material of Blades: Coated sheet steel
- Size: 450 mm diameter
- Weight: 5.0 kg
- Ambient Temperature Range: -40°C to 80°C
- Operation Mode: S1 continuous operation
- Insulation Class: FA-2
- Humidity Class: F1-2
- Mounting Position: Shaft horizontal or rotor on bottom; rotor on top on request
- Motor Protection: Thermal overload protector (TOP) wired internally
- Cable Exit: Rotor-side
- Touch Current: <0.75mA
- Max. Permissible Ambient Temperature: 80°C (transp./storage)
- Min. Permissible Ambient Temperature: -40°C (transp./storage)
Buy the ebmpapst A4E450-AP01-01 – Reliable Axial Fan for Industrial Applications
Enhance your industrial cooling solutions with the ebmpapst A4E450-AP01-01 axial fan. Featuring durable black-coated blades and a ball bearing design, it offers reliable airflow. The fan is IP44 rated for dust and splash resistance, suitable for ambient temperatures from -40°C to 80°C. Its thermal overload protection ensures safety during continuous operation in demanding environments. Easy to install with a size of 450 mm, this fan provides efficient ventilation, making it an ideal choice for industrial, HVAC, and manufacturing systems.
Buy ebmpapst A4E450-AP01-01 now and experience unmatched reliability and performance in industrial cooling and ventilation systems.
Frequently Asked Questions
Where can I buy ebm-papst A4E450AP0101?
You can click on the BUY or RFQ button to purchase A4E450AP0101 from an authorized ebm-papst distributor.
How do I troubleshoot issues or seek technical support for part A4E450AP0101?
You can download the A4E450AP0101 datasheet or visit the ebm-papst website for support.
Who is the manufacturer of A4E450AP0101?
ebm-papst
