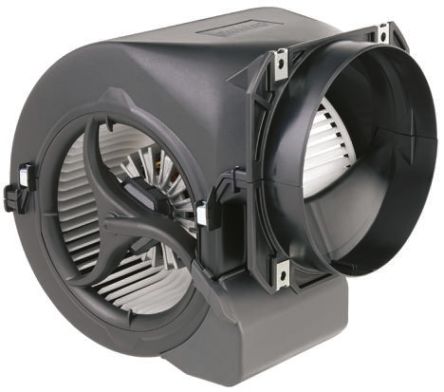

ebm-papst D2E146HT6702 Centrifugal Fan with Housing
The EBM-PAPST D2E146-HT67-02 is a high-performance AC centrifugal fan engineered for demanding industrial applications. Its forward curved impeller design maximizes airflow efficiency, while the dual inlet configuration enhances air intake capacity. The fan's robust construction, featuring a PP plastic housing and hot-dip galvanized sheet steel impeller, ensures durability and longevity in harsh environments. Equipped with a thermal overload protector and multiple speed settings, the D2E146-HT67-02 provides reliable and adaptable performance for ventilation, cooling, and process air handling systems. It is commonly used in HVAC systems, industrial machinery, and process equipment where efficient and reliable air movement is critical.
ebm-papst D2E146HT6702 Centrifugal Fan with Housing Specifications:
- Motor: M2E068-EC
- Nominal Voltage: 230 VAC
- Frequency: 50/60 Hz
- Speed: 1850/2100 min-1
- Power Input: 355/400 W
- Current Draw: 1.55/1.75 A
- Motor Capacitor: 8 µF
- Capacitor Voltage: 450 VDB
- Min. Back Pressure: 0/200 Pa
- Min. Ambient Temperature: -25 °C
- Max. Ambient Temperature: 55/50 °C
- Starting Current: 1.8/1.9 A
- Mass: 3.4 kg
- Size: 146 mm
- Material of Rotor Surface: Partially cast in aluminium
- Material of Terminal Box: PP plastic, black
- Material of Impeller: Sheet steel, hot-dip galvanised
- Housing Material: PP plastic, black
- Motor Suspension: Motor mounted with anti-vibration on both sides
- Direction of Rotation: Counter-clockwise
- Type of Protection: IP 20
- Insulation Class: F
- Humidity Class: F0
- Max. Permissible Ambient Motor Temp: + 80 °C
- Min. Permissible Ambient Motor Temp: -40 °C
- Mounting Position: Any
- Condensate Discharge Holes: None, open rotor
- Operation Mode: S1
- Motor Bearing: Ball bearing
- Speed Steps: 4
- Touch Current IEC 60990: < 0.75 mA
- Electrical Leads: Via terminal box, integrated capacitor connected via terminal box; With plug
- Motor Protection: Thermal overload protector (TOP) wired internally
- Cable Exit: Variable
- Protection Class: I
- Product Conforming to Standard: EN 60335-2-31; CE
- Approval: VDE; CCC
