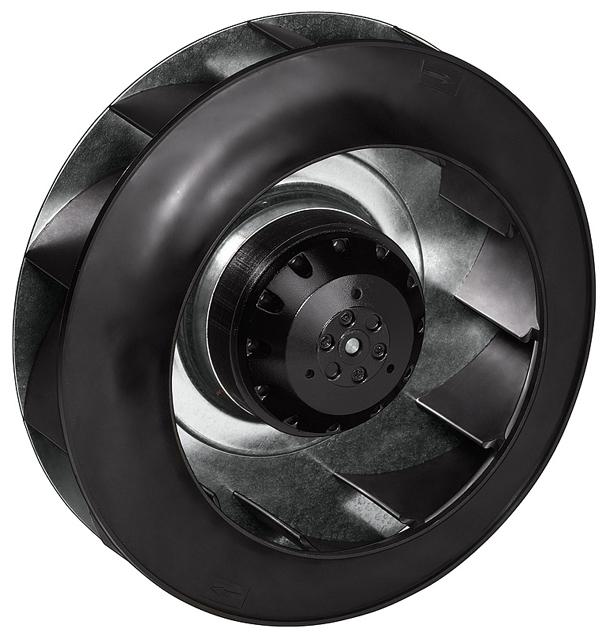

ebm-papst R2D250AF1012 AC Centrifugal Fan
The R2D250-AF 10-12 is a backward curved, single inlet AC centrifugal fan designed for efficient air movement in industrial applications. It features a black-coated plastic impeller made of fibreglass-reinforced PA66 with 11 blades, mounted in any position, and protected by IP 44 housing. The fan operates at 400 VAC, 50 Hz, and a maximum ambient temperature of +80°C, with a motor mass of 34 kg, size 250 mm, and a max speed of 2600 RPM. It includes thermal overload protection and ball bearings for durability.
ebm-papst R2D250AF1012 AC Centrifugal Fan Specifications:
- Motor Type: AC centrifugal fan with backward curved, single inlet design
- Size: 250 mm diameter
- Mass: 34 kg
- Impeller Material: Fibreglass-reinforced PA66
- Number of Blades: 11
- Direction of Rotation: Clockwise when viewed on rotor
- Protection Class: IP 44
- Insulation Class: F5
- Max. Permissible Ambient Motor Temperature: +80°C
- Min. Permissible Ambient Motor Temperature: -40°C
- Mounting Position: Any
- Motor Bearings: Ball bearings
- Touch Current: <0.75mA
- Motor Protection: Thermal overload protector
- Cable Exit: Lateral
- Supply Voltage: 400 VAC
- Frequency: 50 Hz
- Maximum Speed: 2600 RPM
- Power Input: 160 W at full load
- Airflow: 700+20 m³/h
- Max. Back Pressure: 70 Pa
- Protection Standard: CE, EN 60335-1
Buy the ebmpapst Series R2D250-AF: AC Centrifugal Fan 250 mm
Purchase the ebmpapst Series R2D250-AF 10-12 centrifugal fan online today to benefit from high-quality air moving solutions. This backward curved, single inlet fan features a fibreglass-reinforced impeller, IP44 protection class, and operates effectively at 400 VAC, 50 Hz, making it ideal for industrial use. Its robust construction includes a 34 kg weight, 250 mm size, and thermal overload protection for durability. Get fast delivery and improve your ventilation systems with this reliable and efficient fan now.
Order your ebmpapst Series R2D250-AF 10-12 centrifugal fan today and ensure efficient, reliable air movement for industrial projects.
Frequently Asked Questions
Where can I buy ebm-papst R2D250AF1012?
You can click on the BUY or RFQ button to purchase R2D250AF1012 from an authorized ebm-papst distributor.
How do I troubleshoot issues or seek technical support for part R2D250AF1012?
You can download the R2D250AF1012 datasheet or visit the ebm-papst website for support.
Who is the manufacturer of R2D250AF1012?
ebm-papst
