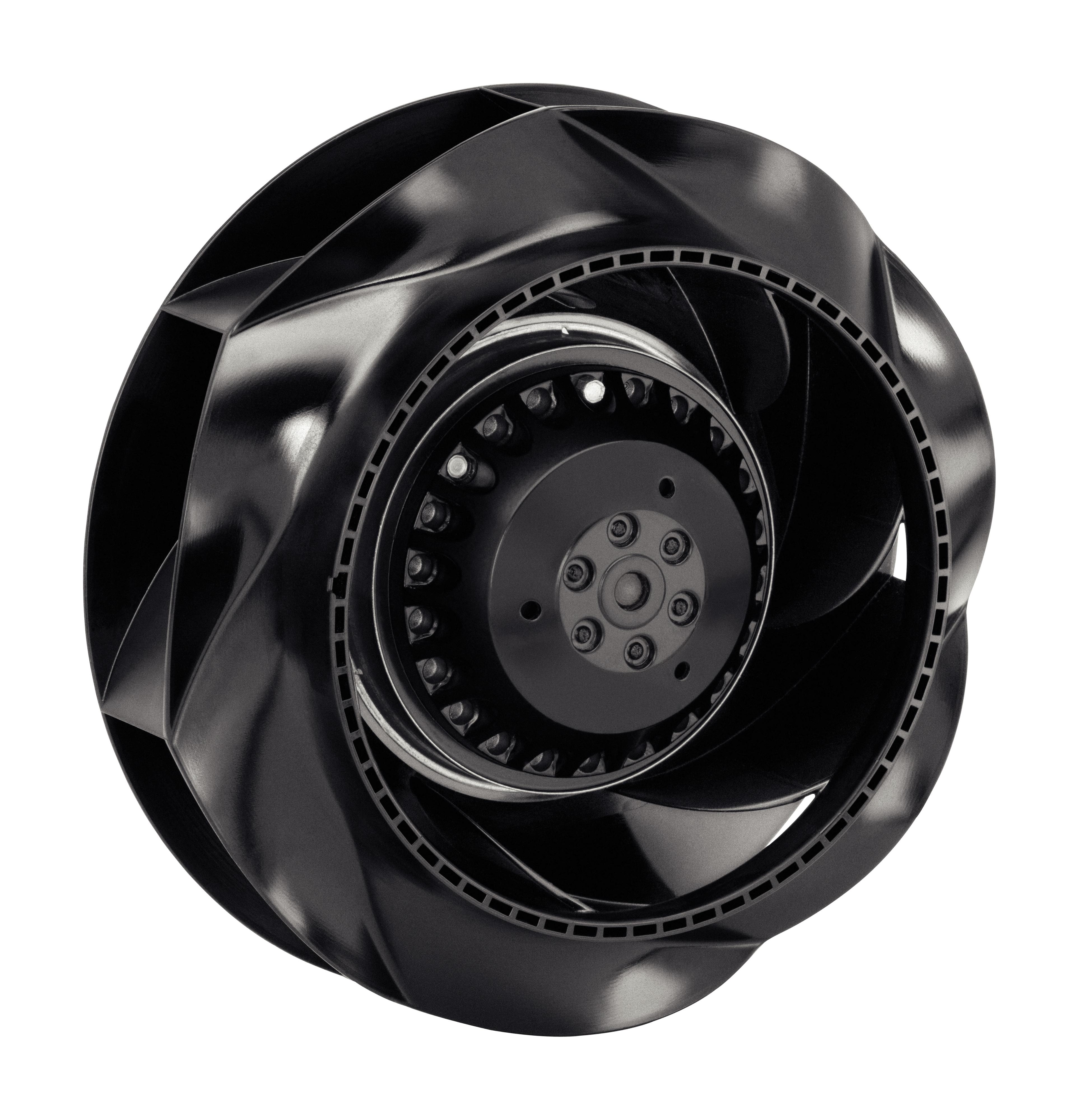

EBM-PAPST R2E225RA9209 Centrifugal Fan
The R2E225-RA92-09 is a high-performance backward curved centrifugal fan designed for industrial ventilation applications. It features a 225mm coated impeller with seven blades, rotating clockwise, and built with IP44 protection and insulation class FA-2. Suitable for environments with ambient temperatures up to 80°C, it offers reliable operation with thermal overload protection and ball bearings. The fan delivers an air flow of up to 1195 m³/h at 50Hz, with a maximum sound power of 70 dB(A), ensuring efficient airflow and durability in demanding conditions.
EBM-PAPST R2E225RA9209 Centrifugal Fan Specifications:
- Size: 225mm rotor surface
- Material of impeller: Plastic PAG, fibreglass-reinforced
- Number of blades: 7
- Direction of rotation: Clockwise
- Protection class: IP 44
- Insulation class: FA-2
- Max. permissible ambient temperature: 80°C
- Min. permissible ambient temperature: -40°C
- Mounting position: Shaft horizontal or rotor on bottom; rotor on top available on request
- Motor type: S1 operation mode (continuous duty)
- Motor protection: Thermal overload protector, ball bearing
- Electrical specifications: 230 VAC, 50/60 Hz, power input around 0.68 W at 50Hz, current draw approximately 1.25A
- Operational parameters: Air flow up to 1195 m³/h, pressure increase 320 Pa, sound power level 70 dB(A)
Buy the ebm-papst R2E225-RA92-09 – Reliable Centrifugal Fan for Industrial Applications
Enhance your industrial ventilation system with the ebm-papst R2E225-RA92-09 centrifugal fan. Featuring a 225mm impeller and a durable plastic fibreglass-reinforced impeller, this fan delivers up to 1195 m³/h airflow while operating quietly at 70 dB(A). Its IP44 protection ensures safety in humid environments, and thermal overload protection adds reliability for continuous operation. Easy to install with horizontal or top mounting options, it is ideal for demanding industrial applications requiring high airflow and durability.
Buy ebm-papst R2E225-RA92-09 now and experience unmatched reliability and performance for demanding industrial ventilation needs.
Frequently Asked Questions
Where can I buy EBM-PAPST R2E225RA9209?
You can click on the BUY or RFQ button to purchase R2E225RA9209 from an authorized EBM-PAPST distributor.
How do I troubleshoot issues or seek technical support for part R2E225RA9209?
You can download the R2E225RA9209 datasheet or visit the EBM-PAPST website for support.
Who is the manufacturer of R2E225RA9209?
EBM-PAPST
