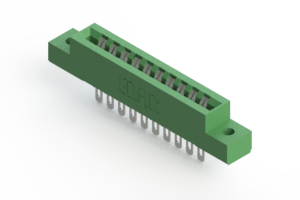

EDAC 306010400102 Card Edge Connector
The EDAC 306-010-400-102 card edge connector is designed for reliable card edge connections with a 0.156" (3.96mm) contact spacing. It accommodates 0.062" (1.57mm) thick P.C. boards and provides a low-profile insulator body. Termination options include P.C. tail and wire hole, and a variety of mounting options are available to suit diverse application requirements. This connector is RoHS compliant and UL certified, ensuring adherence to industry standards. It is suitable for applications in industrial equipment, instrumentation, and other electronic devices requiring secure card edge connectivity.
EDAC 306010400102 Card Edge Connector Specifications:
- Insulator Material: UL 94V-0 Thermoplastic Polyester
- Contact Material: Copper Alloy
- Contact Plating: Gold Plating on mating area and Tin Plating on tails with Nickel underplating all over
- Current Rating: 5 amps
- Contact Resistance: 10 milliohms maximum
- Dielectric Withstanding Voltage: 1800 V AC rms at sea level between adjacent contacts
- Insulation Resistance: 5000 megaohms minimum
- Operating Temperature: -40°C to +105°C
- Insertion Force: 16 oz (4.45 N) maximum per contact pair when tested with .070” (1.78mm) thick gauge
- Withdrawal Force: 1 oz (0.28 N) minimum per contact pair when tested with .054” (1.37mm) thick gauge
Buy the 306-010-400-102 EDAC Card Edge Connector | myMectronic
Purchase the EDAC 306-010-400-102 Card Edge Connector securely and efficiently online.
Buy Now
Frequently Asked Questions
Where can I buy EDAC 306010400102?
You can click on the BUY or RFQ button to purchase 306010400102 from an authorized EDAC distributor.
How do I troubleshoot issues or seek technical support for part 306010400102?
You can download the 306010400102 datasheet or visit the EDAC website for support.
Who is the manufacturer of 306010400102?
EDAC
