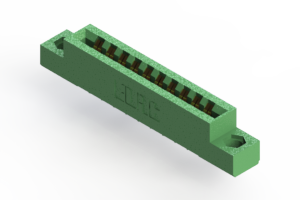

EDAC 306010521104 Card Edge Connector
This card edge connector with a 0.156-inch (3.96mm) pitch offers reliable electrical connections suitable for various electronic applications. It features a low-profile insulator body, contact options for P.C. tails or wire holes, and multiple mounting configurations, including mounting holes and floating eyelets. Made from UL 94V-0 thermoplastic polyester, it has gold and tin plating for corrosion resistance, a current rating suitable for industrial applications, and dielectric withstanding voltage of 1800 V AC rms. This connector ensures durability and flexible mounting for secure, efficient circuit connections.
EDAC 306010521104 Card Edge Connector Specifications:
- Insulator Material: UL 94V-0 thermoplastic polyester
- Contact Material: Copper alloy
- Contact Plating: Gold on mating area, Tin on tails, Nickel underplating
- Contact Resistance: 10 milliohms maximum
- Dielectric Withstanding Voltage: 1800 V AC rms at sea level
- Insulation Resistance: 5000 megaohms minimum
- Operating Temperature: -40°C to +105°C
- Insertion Force: 16 oz (4.45 N) maximum per contact pair
- Withdrawal Force: 1 oz (0.28 N) minimum per contact pair
- Contact Size: 0.037 x 0.015 inches (0.94 x 0.38mm)
- Tail Length: 0.125 inches (3.18mm)
- Contact Count: 10 contacts
- Mounting Options: 0.156-inch diameter mounting holes, floating eyelets, threaded inserts
- RoHS Compliant and UL Certified
Buy the Edac 306-010-521-104 – Reliable Card Edge Connector for Industrial Applications
Purchase the Edac 306-010-521-104 card edge connector online today for your electronic projects. This high-quality connector features a 0.156-inch pitch, 10 contacts, and flexible mounting options including mounting holes and floating eyelets. Ideal for industrial and commercial applications, it offers excellent electrical performance with gold and tin plating to resist corrosion, a dielectric withstand of 1800 V AC rms, and a temperature range from -40°C to +105°C. Ensure reliable circuit connectivity with this durable and versatile connector, available for quick online purchase.
Order your Edac Series 306-010-521-104 card edge connector today and enhance your circuit board connectivity with dependable quality and versatile mounting options.
Frequently Asked Questions
Where can I buy EDAC 306010521104?
You can click on the BUY or RFQ button to purchase 306010521104 from an authorized EDAC distributor.
How do I troubleshoot issues or seek technical support for part 306010521104?
You can download the 306010521104 datasheet or visit the EDAC website for support.
Who is the manufacturer of 306010521104?
EDAC
