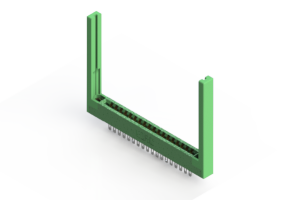

EDAC 306018500168 Card Edge Connector
The EDAC 306-018-500-168 card edge connector is designed for reliable and versatile card edge connections. With a 0.156" (3.96mm) contact spacing, it accommodates 0.062" (1.57mm) nominal thickness P.C. boards. The connector's low-profile insulator body and diverse mounting options make it suitable for a wide range of industrial applications, including data acquisition, instrumentation, and telecommunications equipment. It is RoHS compliant and offers various termination options, including P.C. tail and wire hole configurations.
EDAC 306018500168 Card Edge Connector Specifications:
- Insulator Material: UL 94V-0 Thermoplastic Polyester
- Contact Material: Copper Alloy
- Contact Plating: Gold Plating on mating area and Tin Plating on tails with Nickel underplating all over
- Current Rating: 5 amps
- Contact Resistance: 10 milliohms maximum
- Dielectric Withstanding Voltage: 1800 V AC rms at sea level between adjacent contacts
- Insulation Resistance: 5000 megaohms minimum
- Operating Temperature: -40°C to +105°C
- Insertion Force: 16 oz (4.45 N) maximum per contact pair
- Withdrawal Force: 1 oz (0.28 N) minimum per contact pair
- Contact Spacing: 0.156" (3.96mm)
- Accepts Board Thickness: 0.062" (1.57mm)
