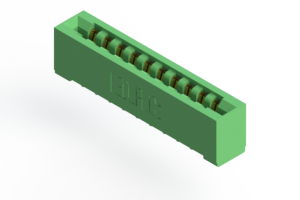

EDAC 307010525101 Card Edge Connector
This card edge connector features a 0.156-inch (3.96 mm) pitch with a total of 10 contacts, suitable for PC boards up to 0.070 inches thick. It has a low-profile, UL 94V-0 thermoplastic polyester insulator, gold-plated contacts on mating areas, and tin-plated tails with nickel underplating. Designed for versatile mounting options, it includes tail sizes of 0.046 by 0.013 inches, a tail length of 0.213 inches, and supports single or dual row configurations with polarizing keys. Suitable for high-reliability applications in electronic systems.
EDAC 307010525101 Card Edge Connector Specifications:
- Contact spacing: 0.156 inches (3.96 mm)
- Total contacts: 10
- Tail size: 0.046 x 0.013 inches (1.17 x 0.33 mm)
- Tail length: 0.213 inches (5.41 mm)
- Insulator Material: UL 94V-0 Thermoplastic Polyester
- Contact Material: Copper Alloy
- Contact Plating: Gold on mating area, Tin on tails with Nickel underplating
- Current Rating: 5 amps
- Contact Resistance: 10 milliohms maximum
- Dielectric Withstanding Voltage: 1800 V AC rms
- Insulation Resistance: Minimum 5000 megaohms
- Operating Temperature: -40°C to +105°C
- Mounting options include no lugs or various mounting holes
- Suitable for single or dual row configurations, with optional polarizing keys
